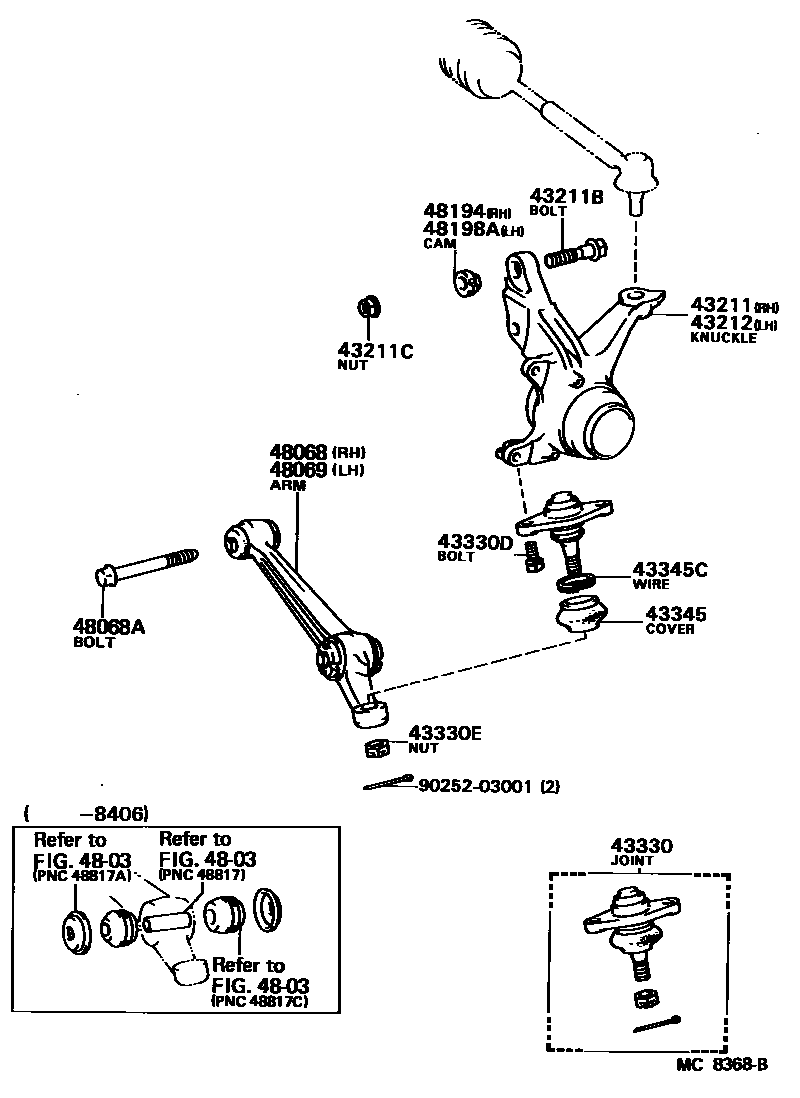

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-32010iCV10,SV11198301-198405

main43211-32020iCV1#,SV11198405-198607

43211BBOLT (FOR ABSORBER SETTING)

main90105-15001×4iCV1#,SV11198301-198607

43211CNUT (FOR ABSORBER SETTING)

main90179-15001×4iCV1#,SV11198301-198607

43212KNUCKLE, STEERING, LH

main43212-32010iCV10,SV11198301-198405

main43212-32020iCV1#,SV11198405-198607

43330JOINT ASSY, LOWER BALL, FRONT

main43330-39135×2iCV1#,SV11198301-198607

sub43330-39275

43330DBOLT (FOR FRONT LOWER BALL JOINT)

main90105-12059×4iCV1#,SV11198301-198607

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14002×2iCV1#,SV11198301-198607

43345COVER, LOWER BALL JOINT DUST

main43345-32010×2iCV1#,SV11198301-198607

43345CWIRE (FOR LOWER BALL JOINT DUST COVER)

main90580-10002×2iCV1#,SV11198301-198607

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-32011iCV10,SV11198301-198406

main48068-32020iCV1#,SV11198406-198607

48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)

main90105-12043×2iCV1#,SV11198301-198607

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-32011iCV10,SV11198301-198406

main48069-32020iCV1#,SV11198406-198607

48194CAM, CAMBER ADJUST, RH

main48194-32010iCV10,SV11198301-198406

main48194-32020iCV1#,SV11198406-198607

48198ACAM, CAMBER ADJUST, LH

main48198-32010iCV10,SV11198301-198406

main48198-32020iCV1#,SV11198406-198607

9025203001

main90252-03001

16 parts on this diagram · 1 diagram in section
