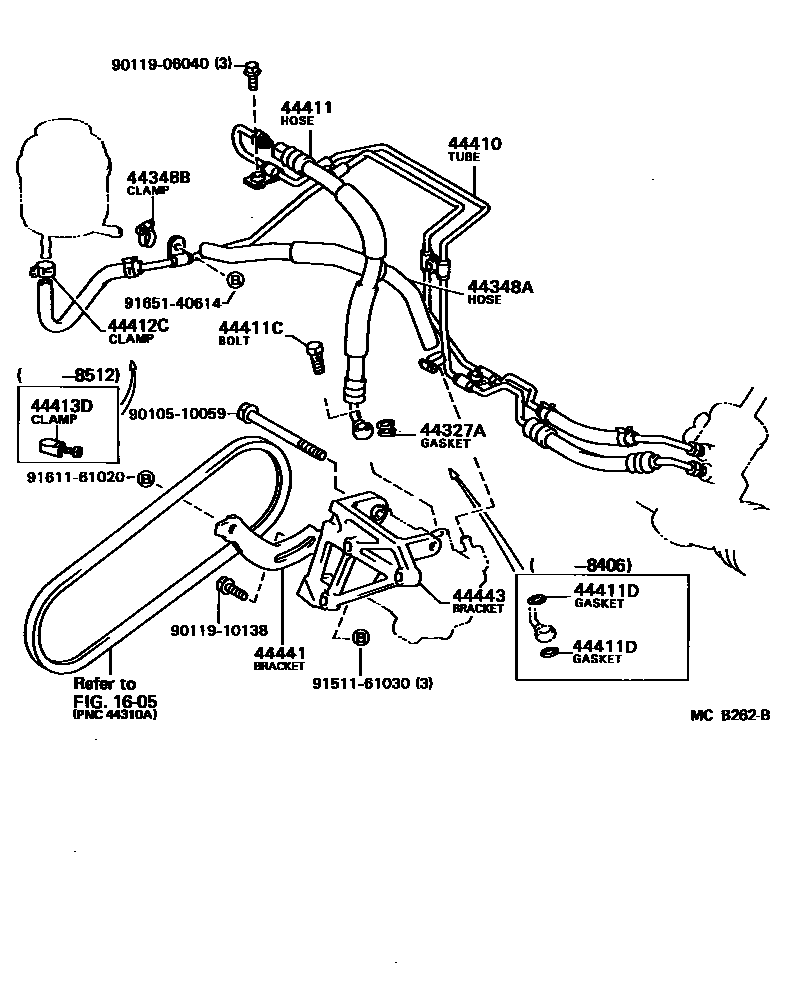

POWER STEERING TUBE

0001 1 0002 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCV1#,SV11198405-198607

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32010iSV11198301-198406

main44348-32020iCV1#198308-198607

main44348-32030iSV11198406-198607

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iCV1#,SV11198301-198607

44410TUBE ASSY, PRESSURE FEED

main44410-32030iSV11198301-198507

main44410-32031iSV11198507-198607

main44410-32050iCV1#198308-198607

44411HOSE, PRESSURE FEED

main44411-32010iSV11198301-198607

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16005iSV11198301-198408

sub90401-16008

main90401-16008iSV11198408-198607

44411DGASKET(FOR PRESSURE FEED HOSE)

main90430-16242iSV11198301-198406

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iCV11,SV11198512-198607

sub90467-16019

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001iSV11198301-198512

44441BRACKET, PUMP, FRONT

main44441-32010iSV11198301-198607

44443BRACKET, PUMP

main44443-32010iSV11198301-198607

9010510059

main90105-10059

9011906040

main90119-06040

9011910138

main90119-10138

9151161030

main91511-61030

9161161020

main91611-61020

9165140614

main91651-40614

18 parts on this diagram · 2 diagrams in section
