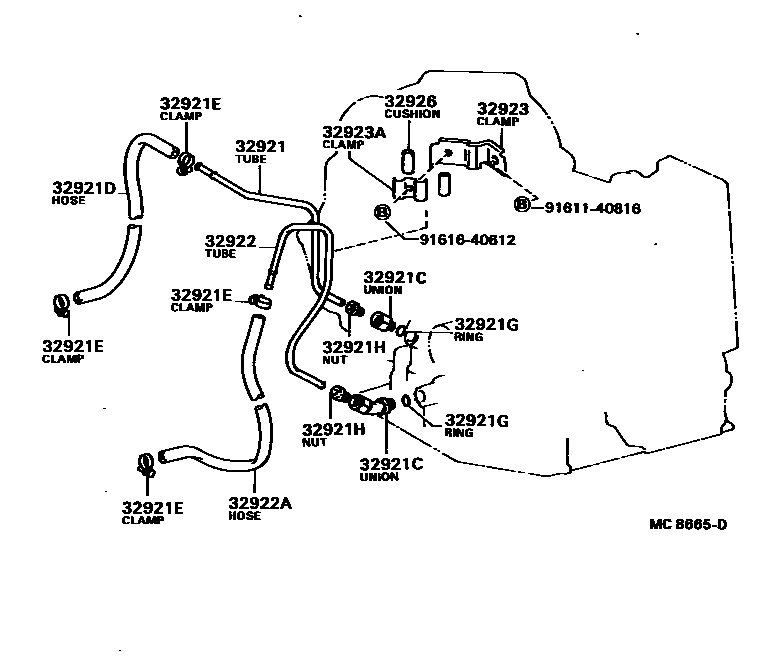

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-32011iCV1#,SV11..4FC198301-198607

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iCV1#,SV11..4FC198301-198607

INLET

main90407-14004iCV1#,SV11..4FC198301-198607

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-14099iCV1#,SV11..4FC198301-198607

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085iCV1#,SV11..4FC198301-198607

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iCV1#,SV11..4FC198301-198607

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004iCV1#,SV11..4FC198404-198607

main96310-11400iSV11..4FC198301-198404

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32010iCV1#,SV11..4FC198301-198607

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-14052iCV1#,SV11..4FC198301-198607

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-32010iCV1#,SV11..4FC198301-198607

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90462-12085iCV1#,SV11..4FC198301-198607

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iCV1#,SV11..4FC198301-198607

L=25,ID=8

9161140816

main91611-40816

9161640612

main91616-40612

13 parts on this diagram · 1 diagram in section
