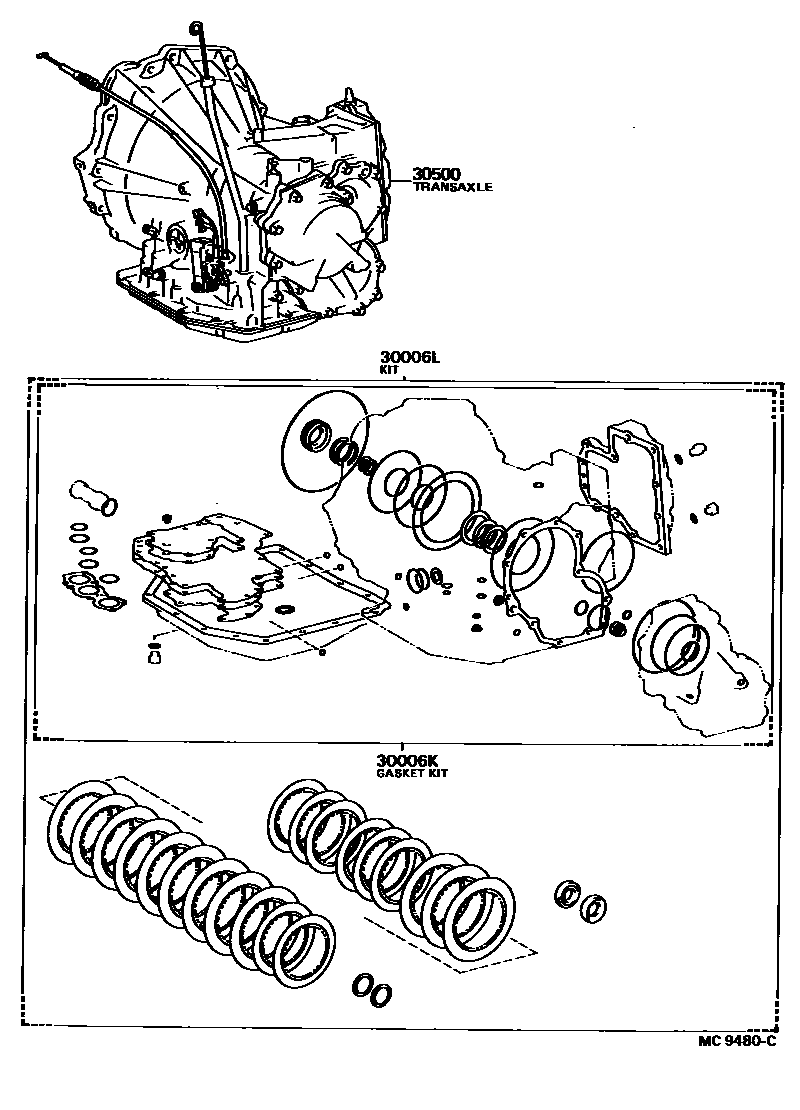

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

30006KGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-32020iSV11..4FC198301-198406

main04351-32021iCV10,SV11..4FC198406-198508

main04351-32040iCV11,SV11..4FC198508-198607

30006LKIT, TRANSAXLE OVERHAUL(ATM)

main04352-32010iSV11..4FC198301-198406

main04352-32011iSV11..4FC198406-198508

main04352-32020iSV11..4FC198508-198607

main04352-32040iCV1#198410-198607

30500TRANSAXLE ASSY, AUTOMATIC

main30500-32011iSV11..4FC198406-198607

main30500-32030iSV11..4FC198301-198406

main30500-32100iCV10198410-198508

main30500-32130iCV11198508-198607

3 parts on this diagram · 1 diagram in section
