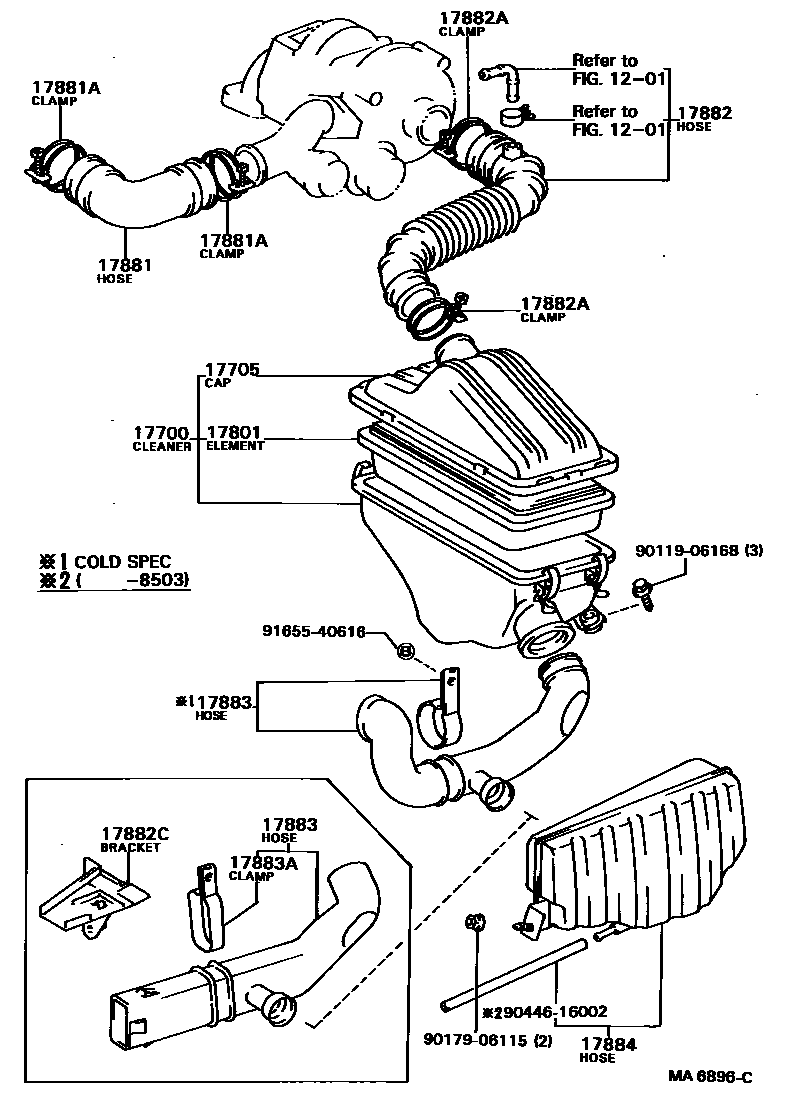

AIR CLEANER

0001 1 0002 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-64100198308-198607

main17700-64140198410-198411

main17700-74010198301-198607

17705CAP SUB-ASSY, AIR CLEANER

main17705-64030198308-198607

main17705-74010198301-198607

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64040198308-198607

main17801-64050198410-198411

main17801-74010198301-198607

17881HOSE, AIR CLEANER, NO.1

main17341-64020198308-198607

main17881-74010198301-198607

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-70001198308-198607

main96111-10710198301-198607

17882HOSE, AIR CLEANER, NO.2

main17880-64040198308-198607

main17882-74010198301-198607

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-75001198308-198607

main96111-10670198308-198607

main96111-10710198301-198607

main96111-10800198301-198607

17882CBRACKET(FOR COOL AIR INTAKE)

main53849-32010198308-198508

main53849-32020198508-198607

17883HOSE, AIR CLEANER, NO.3

main17882-32020198301-198408

main17882-32030198308-198408

main17882-32040198308-198408

main17882-32060198410-198607

main17882-32070198410-198607

main17882-32080198408-198607

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01028198301-198607

17884HOSE, AIR CLEANER, NO.4

main17883-32020198301-198408

main17883-32030198408-198607

9011906168

main90119-06168

9017906115

main90179-06115

9044616002

main90446-16002

9165540616

main91655-40616

16 parts on this diagram · 2 diagrams in section
