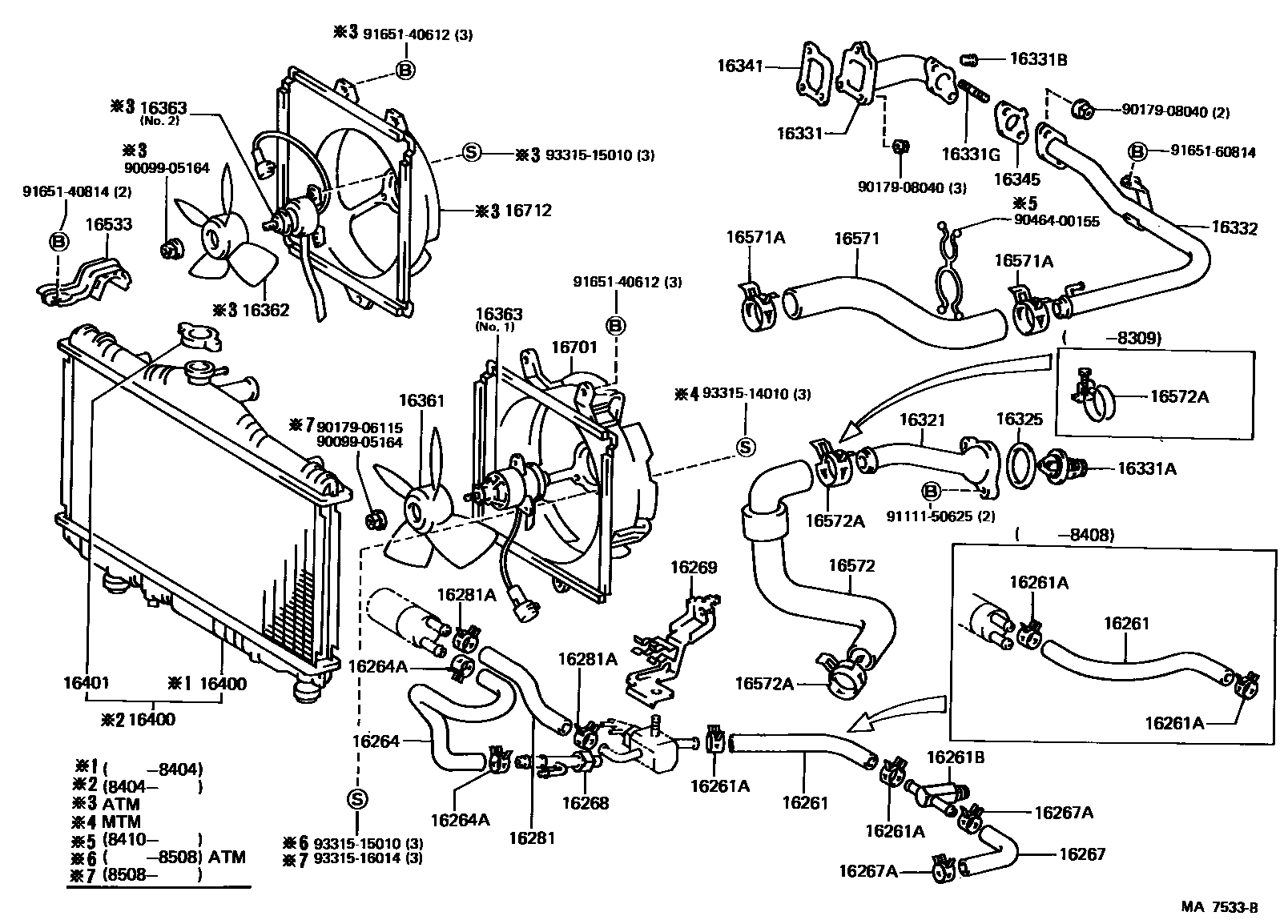

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16261BUNION(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16268PIPE, WATER BY-PASS, NO.1
16269SUPPORT, WATER BY-PASS PIPE
16281HOSE, WATER BY-PASS, NO.4
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
16331ATHERMOSTAT
*WAX 82-95,*WAX 82-95
16331BPLUG(FOR WATER OUTLET)
16331GBOLT, STUD(FOR WATER INLET)
16332PIPE, WATER OUTLET, NO.1
16341GASKET, WATER OUTLET
16345GASKET, WATER OUTLET PIPE
16361FAN
16362FAN, NO.2
16363MOTOR, COOLING FAN
NO.2
NO.1
NO.1
16400RADIATOR ASSY
16401CAP SUB-ASSY, RADIATOR
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
RADIATOR SIDE
RADIATOR SIDE
INLET SIDE
INLET SIDE
16701SHROUD SUB-ASSY, FAN
16712SHROUD, FAN, NO.2
9009905164
main90099-05164
9017906115
main90179-06115
9017908040
main90179-08040
9046400155
main90464-00155
9111150625
main91111-50625
9165140612
main91651-40612
9165140814
main91651-40814
9165160814
main91651-60814
9331514010
main93315-14010
9331515010
main93315-15010
9331516014
main93315-16014
43 parts on this diagram · 4 diagrams in section
