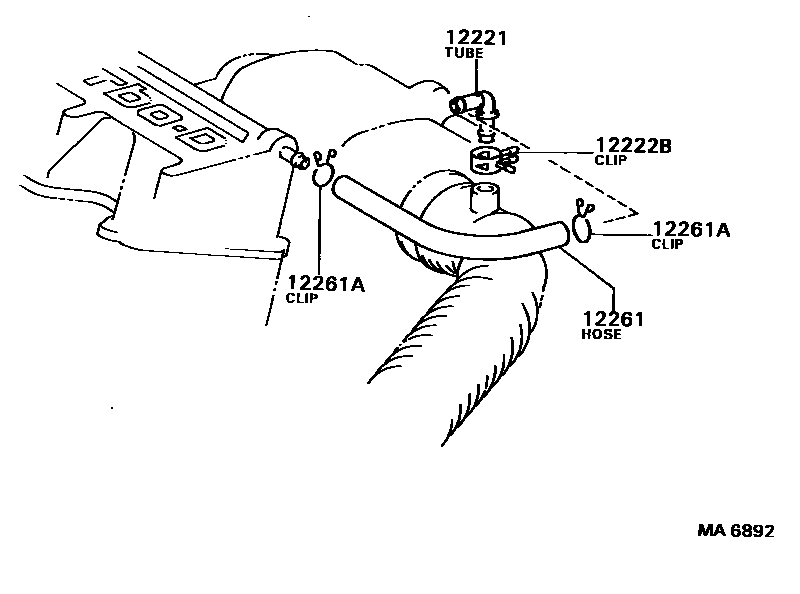

VENTILATION HOSE

0001 1 0002 1

12221TUBE, VENTILATION NO.1

main90407-12002i1CTLC,2CTLC..CV1#198308-198607

12222BCLIP(FOR VENTILATION TUBE)

main96132-31000i1CTLC,2CTLC..CV1#198308-198607

12261HOSE, VENTILATION

main12261-64040i1CTLC,2CTLC..CV1#198308-198607

main12261-74010i2SELC..SV11198301-198607

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14082×2i2SELC..SV11198301-198607

main90467-15120×2i1CTLC,2CTLC..CV1#198308-198607

4 parts on this diagram · 2 diagrams in section
