SHORT BLOCK ASSEMBLY

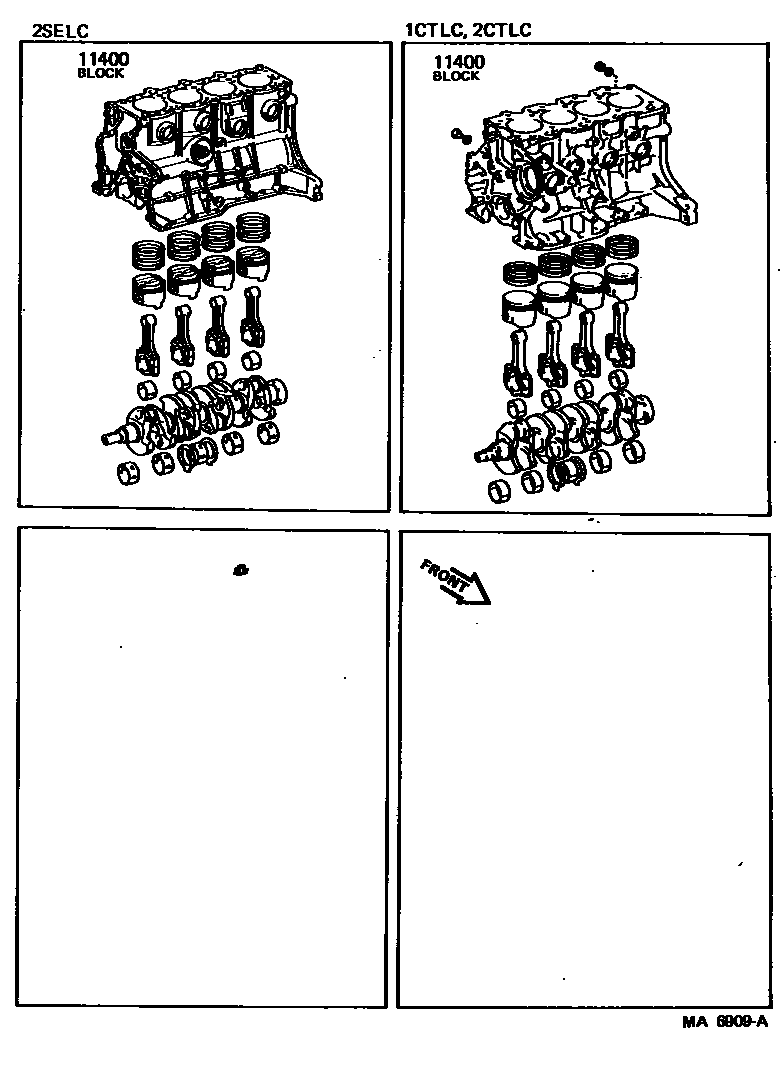

Parts diagram

11400BLOCK ASSY, SHORT

main11400-64040i198308-198508

main11400-64210i198508-198607

main11400-74010i198301-198607

main11400-74011i198607-198607

1 parts on this diagram · 1 diagram in section
