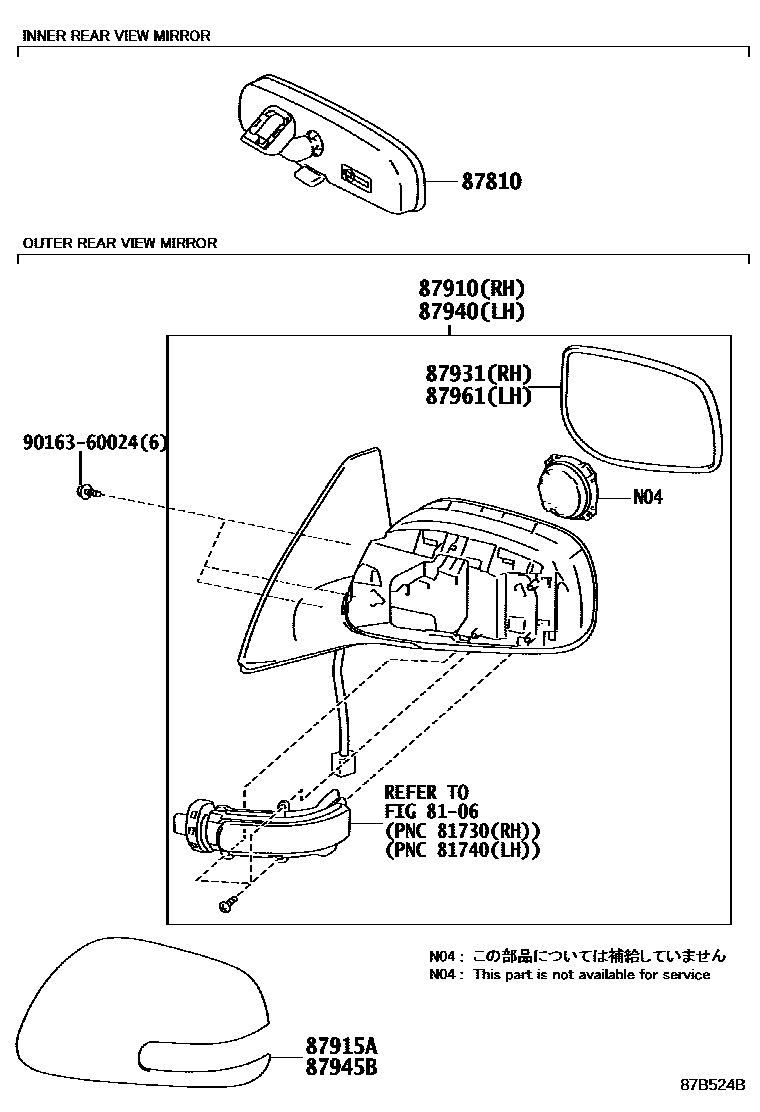

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915ACOVER, OUTER MIRROR, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
DK. STEEL MC.,1H2
BLACKISH RED MC.,3R0
DK.BLUE MC.,8S6
BLUE ME.,8T7
LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8
RS 8.0,BLACK,3P0
LIMITED PACKAGE-RS10.0,RED M.M.,3R3
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
87945BCOVER, OUTER MIRROR, LH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
CEMENT GRAY ME.,1H5
DK. STEEL MC.,1H2
BLACKISH RED MC.,3R0
DK.BLUE MC.,8S6
BLUE ME.,8T7
LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8
RS 8.0,BLACK,3P0
LIMITED PACKAGE-RS10.0,RED M.M.,3R3
9016360024
main90163-60024
9 parts on this diagram · 1 diagram in section
