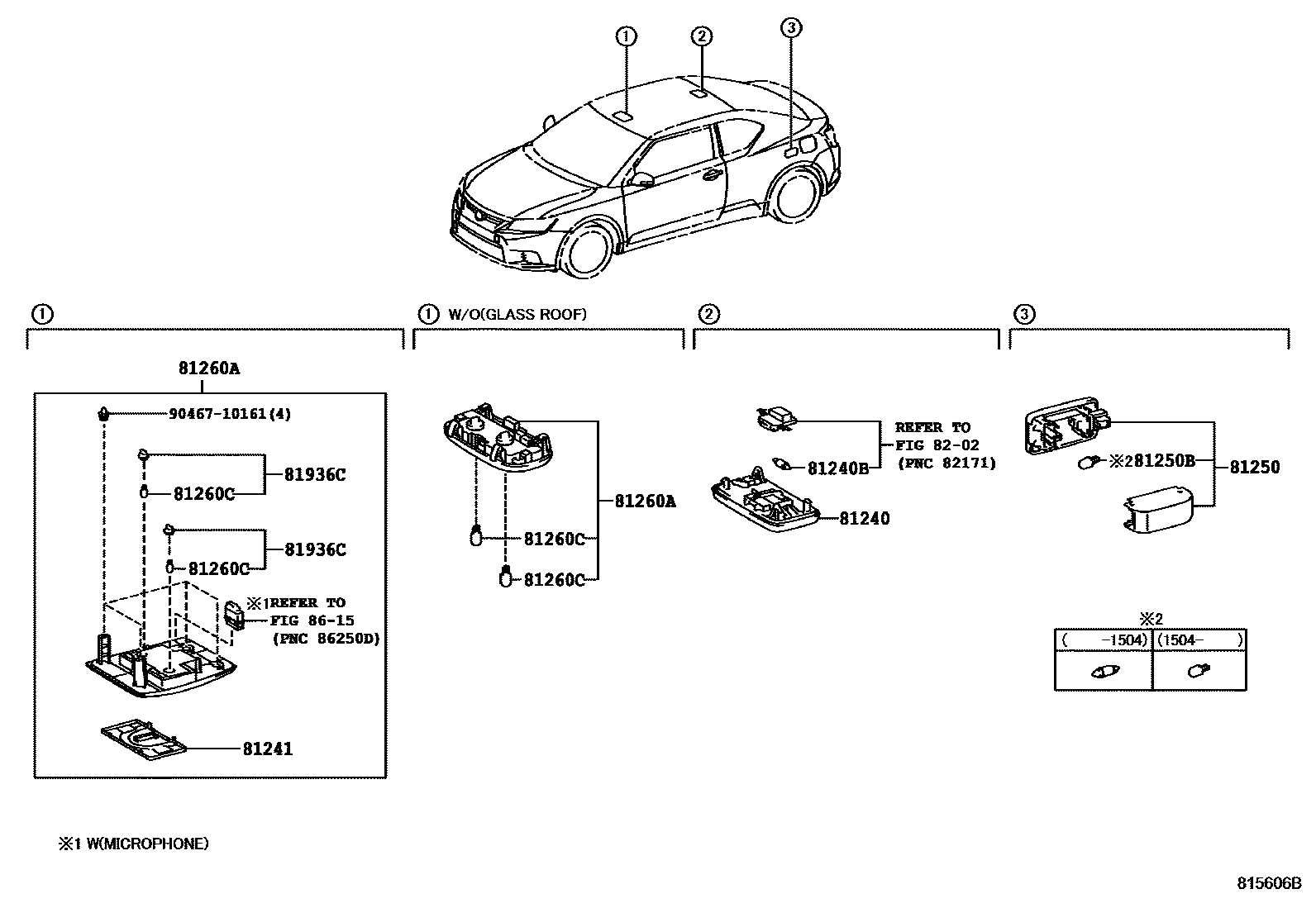

INTERIOR LAMP

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B1iAGT20201008-201305

DK.GRAY,TRIM1#

main81240-35020-B4iAGT20201305-201606

MD.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iAGT20201008-201305

12V 8W

81241LENS, ROOM LAMP, NO.1

main81363-21020iAGT20201008-201305

81250LAMP ASSY, ROOM, NO.2

main81250-48010iAGT20201008-201305

main81330-58010iAGT20201504

81250BBULB, ROOM LAMP, NO.2

main99132-12050iAGT20201504

12V 5W

main99132-13050iAGT20201305-201504

12V 5W

81260ALAMP ASSY, MAP

main81260-21070-B0iAGT20201008-201107

DK.GRAY,TRIM1#

main81260-21080-B0iAGT20201107-201305

DK.GRAY,TRIM1#

main81260-68010-B1supersedes 81260-21080-B1iAGT20201008-201305

WITHOUT(IMMOBILIZER)&GLASS ROOF-WITHOUT,DK.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-11062×2supersedes 99132-12050iAGT20201008-201305

12V 8W,WITHOUT(IMMOBILIZER)&GLASS ROOF-WITHOUT

81936CBULB ASSY

main81936-28010×2iAGT20201008-201305

8202WIRING & CLAMP

→ Go to FIG 82-02

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

9046710161

main90467-10161

11 parts on this diagram · 1 diagram in section
