ARMREST & VISOR

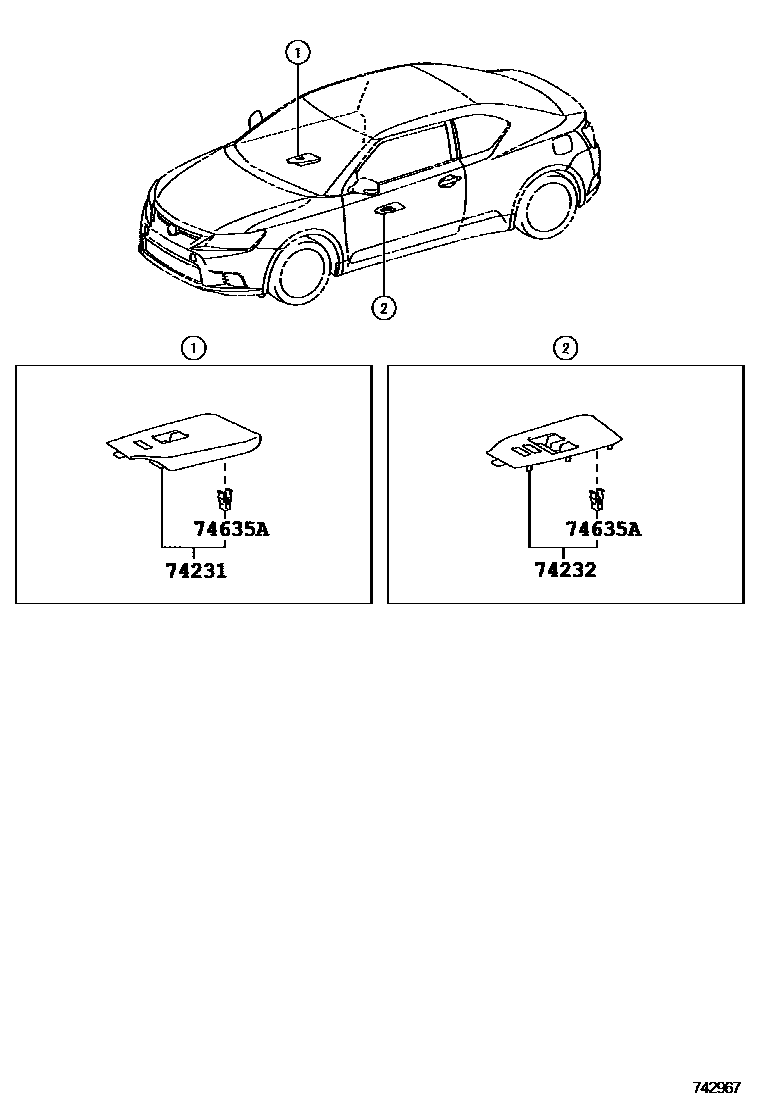

Parts diagram

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-21100-B0i201008-201606

DK.GRAY,TRIM1#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-21100-B0i201008-201606

DK.GRAY,TRIM1#

74635ACLIP

main90467-10203i201308

main90467-12080i201008-201308

3 parts on this diagram · 2 diagrams in section
