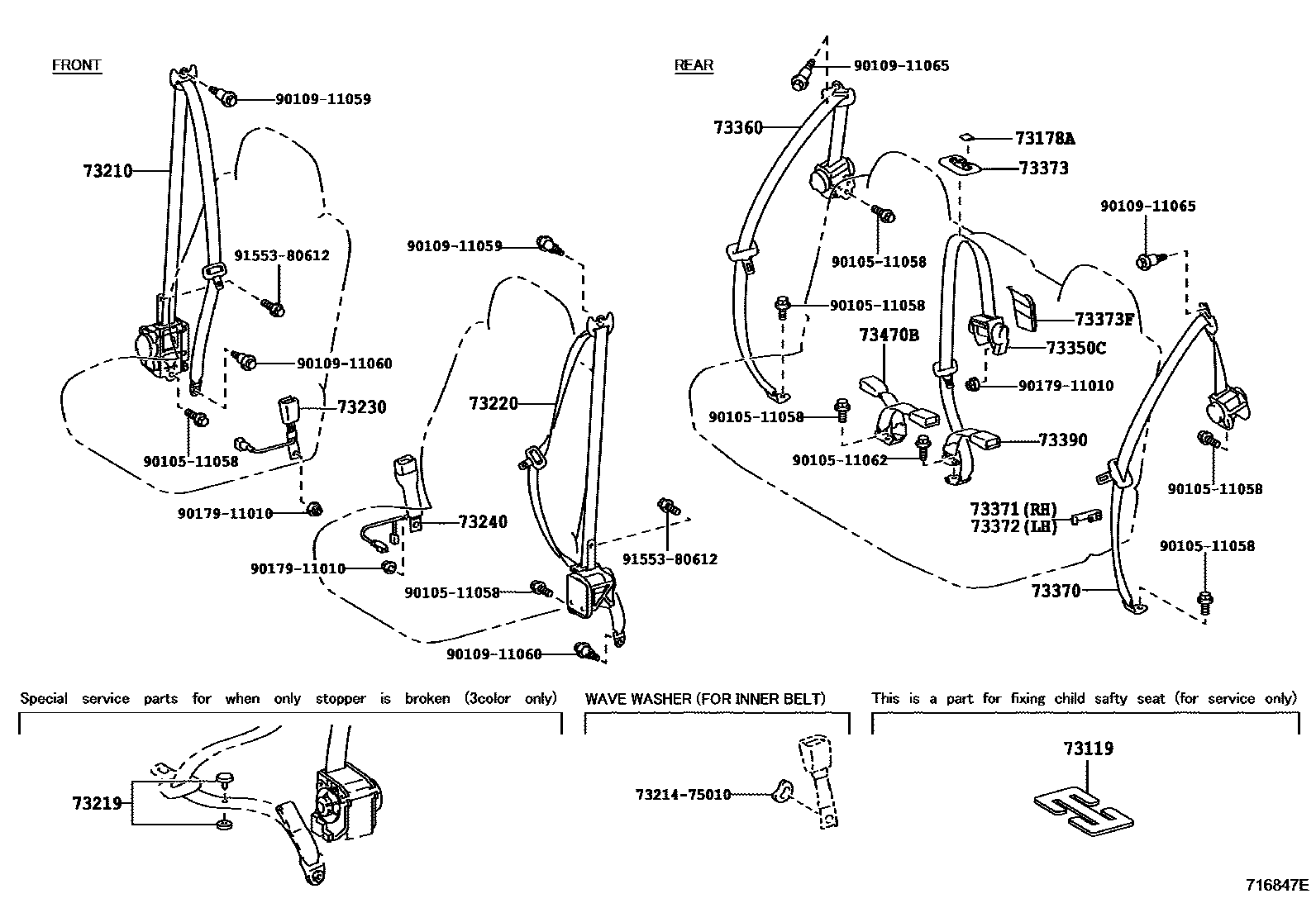

SEAT BELT & CHILD RESTRAINT SEAT

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAGT20201008-201305

73178ACAP, SEAT BELT ANCHOR COVER

main73178-12060-B0iAGT20201305-201606

DK.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-21150-B0iAGT20201008-201201

DK.GRAY,TRIM1#

main73210-21150-B1iAGT20201201-201212

BLACK,TRIM1#

main73210-21150-B3iAGT20201305-201307

LIMITED PACKAGE-SCION 10,SILVER,TRIM10

main73210-21180-B0iAGT20201412-201502

LIMITED PACKAGE-SPECIAL EDITION,DK.GRAY/ORANGE,TRIM10

main73210-21190-B0iAGT20201605-201606

LIMITED PACKAGE-RS10.0,DK.GRAY/RED,TRIM10

73219STOPPER, TONGUE PLATE

main73219-33010iAGT20201305

BLACK

main73219-33020iAGT20201008-201305

GRAY

main73219-33030iAGT20201305

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-21110-B0iAGT20201305-201606

DK.GRAY,TRIM1#

main73220-21110-B1iAGT20201201-201212

BLACK,TRIM1#

main73220-21110-B3iAGT20201305-201307

LIMITED PACKAGE-SCION 10,SILVER,TRIM10

main73220-21130-B0iAGT20201412-201502

LIMITED PACKAGE-SPECIAL EDITION,DK.GRAY/ORANGE,TRIM10

main73220-21140-B0iAGT20201605-201606

LIMITED PACKAGE-RS10.0,DK.GRAY/RED,TRIM10

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-21100-B0iAGT20201008-201305

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-21020-B0iAGT20201008-201305

DK.GRAY,TRIM1#

73350CBELT ASSY, REAR SEAT, OUTER CENTER

main73350-21020-C0iAGT20201008-201201

BLACK,TRIM1#

main73350-21020-C1iAGT20201201-201212

BLACK,TRIM1#

main73350-21020-B2iAGT20201305-201307

LIMITED PACKAGE-SCION 10,SILVER,TRIM10

main73350-21040-D0iAGT20201605-201606

LIMITED PACKAGE-RS10.0,RED,TRIM10

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-21090-B0iAGT20201212-201305

DK.GRAY,TRIM1#

main73360-21090-B1iAGT20201201-201212

BLACK,TRIM1#

main73360-21090-B3iAGT20201305-201307

LIMITED PACKAGE-SCION 10,SILVER,TRIM10

main73360-21140-B0iAGT20201605-201606

LIMITED PACKAGE-RS10.0,DK.GRAY/RED,TRIM10

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-21090-B0iAGT20201305-201606

DK.GRAY,TRIM1#

main73370-21090-B1iAGT20201201-201212

BLACK,TRIM1#

main73370-21090-B3iAGT20201305-201307

LIMITED PACKAGE-SCION 10,SILVER,TRIM10

main73370-21140-B0iAGT20201605-201606

LIMITED PACKAGE-RS10.0,DK.GRAY/RED,TRIM10

73371HANGER, REAR SEAT SHOULDER BELT, RH

main73371-16050-B9iAGT20201008-201305

DK.GRAY,TRIM1#

73372HANGER, REAR SEAT SHOULDER BELT, LH

main73371-16050-B9iAGT20201008-201305

DK.GRAY,TRIM1#

73373COVER, REAR SEAT SHOULDER BELT

main73373-12020-B0iAGT20201008-201305

DK.GRAY,TRIM1#

73373FCOVER, REAR SEAT SHOULDER BELT HOLE

main73373-21040iAGT20201008-201305

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73390-21010-B1iAGT20201008-201305

DK.GRAY/BLACK,TRIM1#

73470BBELT ASSY, REAR SEAT INNER W/CENTER, RH

main73470-21030-B0iAGT20201008-201305

DK.GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511058

main90105-11058

9010511062

main90105-11062

9010911059

main90109-11059

9010911060

main90109-11060

9010911065

main90109-11065

9017911010

main90179-11010

9155380612

main91553-80612

24 parts on this diagram · 1 diagram in section
