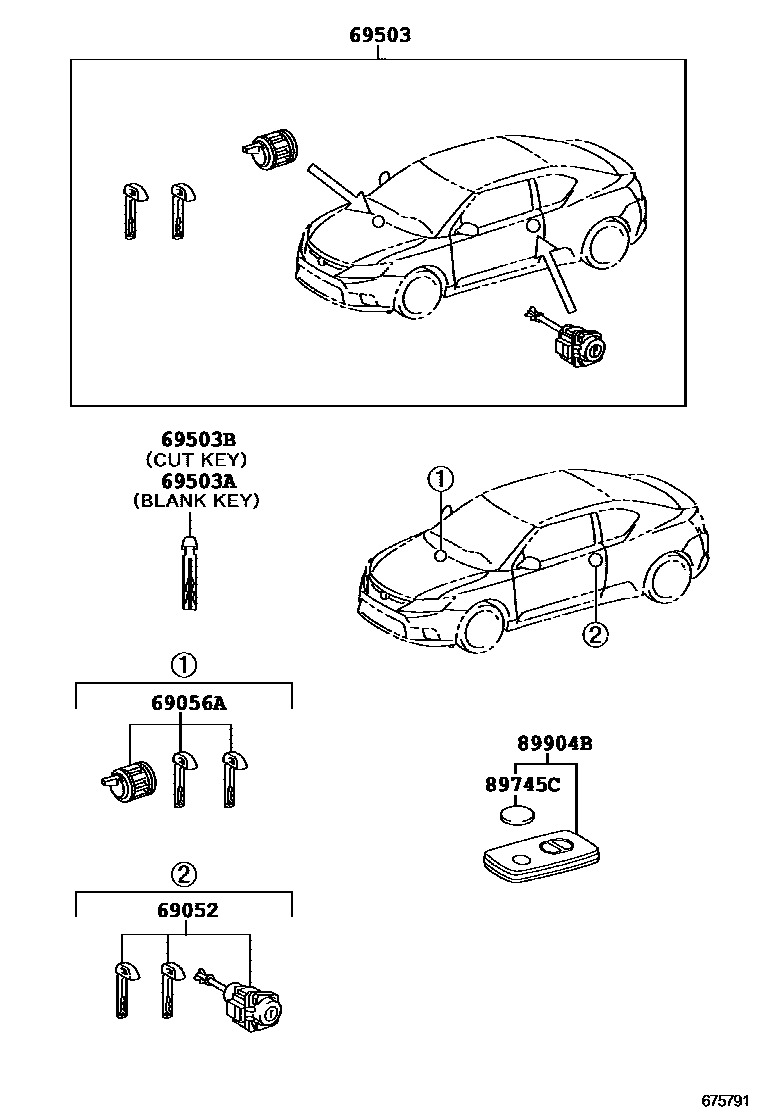

LOCK CYLINDER SET

0001 1W(SMART ENTRY) 0002 1W/O(SMART ENTRY) 0003 1W/O(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-21140supersedes 69052-21120iAGT20201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33200supersedes 69056-21040iAGT20201412-201502

LIMITED PACKAGE-SPECIAL EDITION

69503CYLINDER SET, LOCK

main69005-21260supersedes 69005-21320iAGT20201008-201305

WITHOUT(IMMOBILIZER)

main69005-21270supersedes 69005-21320iAGT20201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

main89704-21150supersedes 69005-21320iAGT20201305-201307

LIMITED PACKAGE-SCION 10

69503AKEY, BLANK

main69515-52120iAGT20201412-201502

MASTER KEY,W(*68),LIMITED PACKAGE-SPECIAL EDITION

69503BKEY, CUT

main69515-52110×2iAGT20201412-201502

MASTER KEY,W(*68),LIMITED PACKAGE-SPECIAL EDITION

89745CBATTERY, TRANSMITTER

main89745-52020iAGT20201008-201112

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-21010×2iAGT20201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

7 parts on this diagram · 3 diagrams in section
