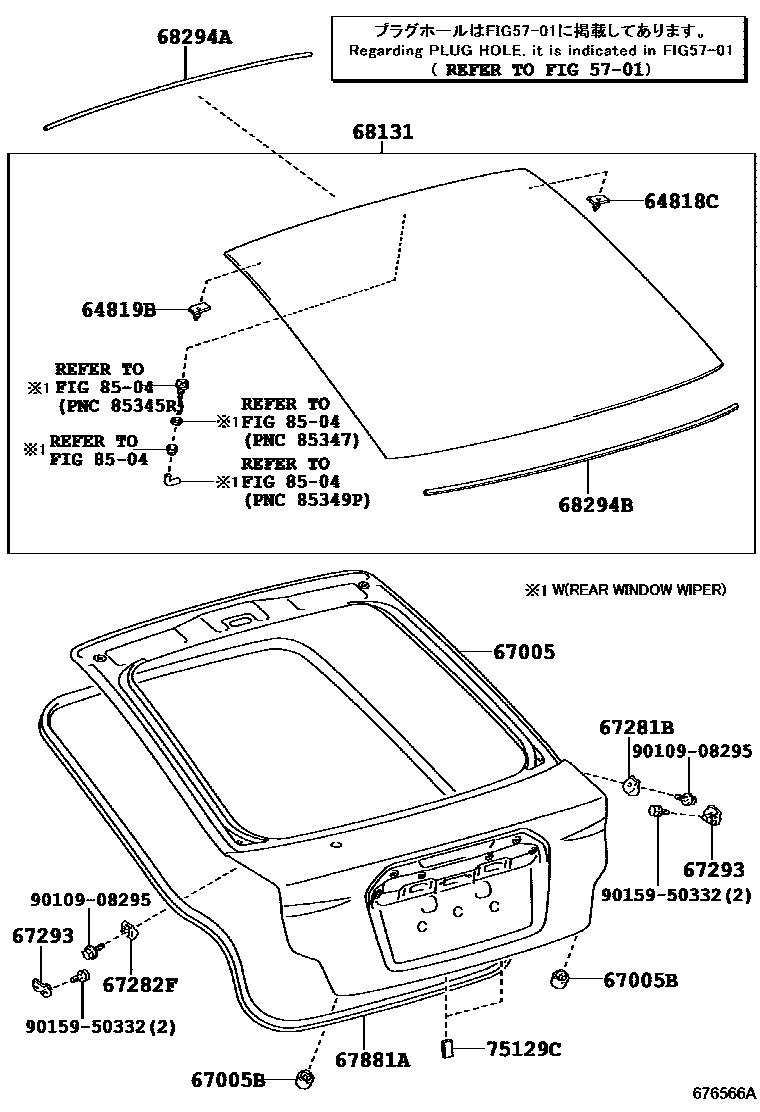

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701HOLE PLUG

→ Go to FIG 57-01

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-21050iAGT20201008-201305

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-21040iAGT20201008-201305

67005PANEL SUB-ASSY, BACK DOOR

main67005-21730iAGT20..CND201305-201606

main67005-21770supersedes 67005-21760iAGT20..USA201008-201305

REAR WINDOW WIPER-WITH

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09124×2iAGT20201008-201305

67281BSTOPPER, BACK DOOR, LOWER

main67281-21020iAGT20201008-201305

67282FSTOPPER, BACK DOOR, LWR LH

main67281-21020iAGT20201008-201305

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-21020×2iAGT20201305

67881AWEATHERSTRIP, BACK DOOR

main67881-21060iAGT20201008-201305

68131GLASS, BACK DOOR

main68105-21200supersedes 68105-21190iAGT20..CND; AGT20..USA201008-201305

REAR WINDOW WIPER-WITH

68294ADAM, BACK DOOR GLASS ADHESIVE

main56117-50140iAGT20201008-201305

68294BDAM, BACK DOOR GLASS ADHESIVE

main56117-50130iAGT20201008-201305

75129CCUSHION, REAR LICENCE PLATE

main75129-13020×2iAGT20201008-201305

8504REAR WASHER

→ Go to FIG 85-04

9010908295

main90109-08295

9015950332

main90159-50332

16 parts on this diagram · 2 diagrams in section
