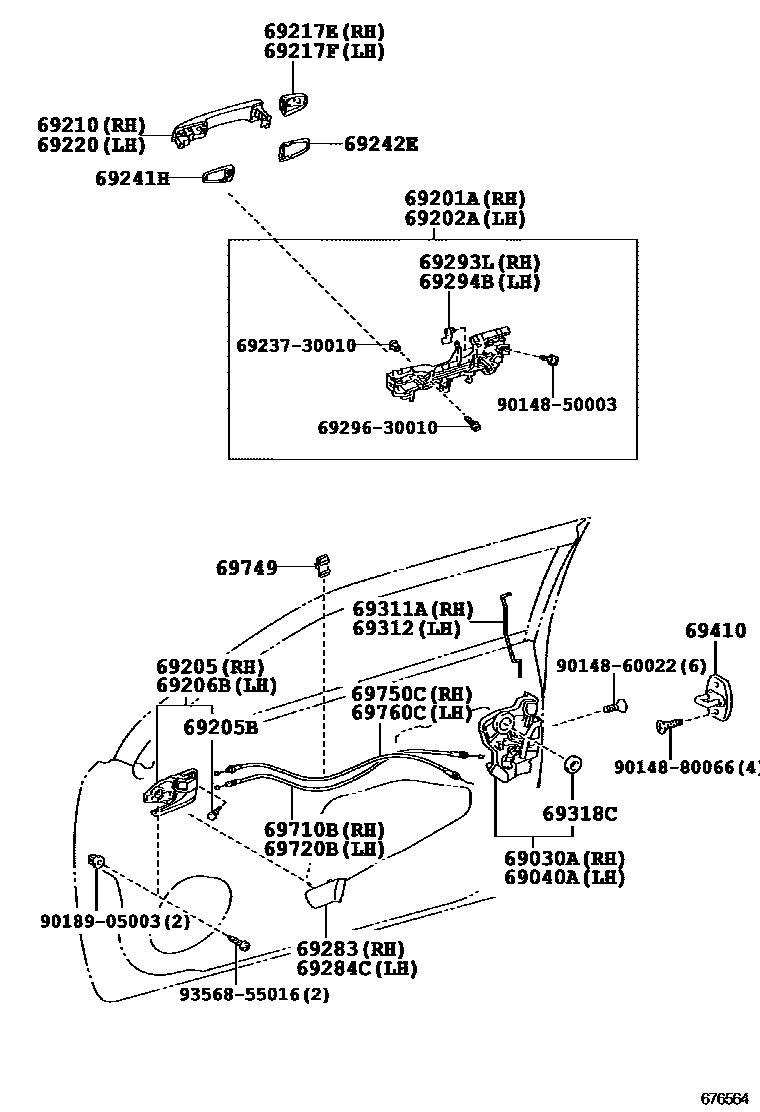

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42230i201008-201305

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-42250i201008-201305

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30071i201008-201305

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30061i201008-201305

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-21020-B0i201008-201305

DK.GRAY,TRIM1#

main69205-33111-B1i201507-201511

DK.GRAY,TRIM1#

main69205-33111-C0i201511-201606

BLACK,TRIM1#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027×2i201008-201305

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-21020-B0i201008-201305

DK.GRAY,TRIM1#

main69206-33121-B1i201507-201511

DK.GRAY,TRIM1#

main69206-33121-C0i201511-201606

BLACK,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-74030-A0supersedes 69211-74020-A0i201405-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),WHITE PEARL CS.,070

main69210-74030-A1supersedes 69211-74020-A1i201305-201405

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SUPER WHITE 2,040

main69210-74030-B0supersedes 69211-74020-B0i201305-201405

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SILVER ME.,1F7

main69210-74030-B3supersedes 69211-74020-B4i201305-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),GRAY ME.,1G3

main69210-74030-B4supersedes 69211-74020-B5i201305-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),CEMENT GRAY ME.,1H5

main69210-74030-C0supersedes 69211-74020-C0i201412-201502

LIMITED PACKAGE-SPECIAL EDITION,BLACK,202

main69210-74030-D1supersedes 69211-74020-D1i201206-201208

RS 8.0&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SUPER RED 5,3P0

main69210-74030-D2supersedes 69211-74020-D3i201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLACKISH RED MC.,3R0

main69210-74030-F2i201107-201109

SPECIAL EDITION,YELLOW,5A3

main69210-74030-J0supersedes 69211-74020-J0i201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),DK.BLUE MC.,8S6

main69210-74030-J5supersedes 69211-74020-J6i201305-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLUE ME.,8T7

main69210-74030-P3supersedes 69211-74020-B8i201405-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),DK. STEEL MC.,1H2

main69211-74020-D0i201605-201606

LIMITED PACKAGE-RS10.0,RED M.M.,3R3

main69211-74020-D1i201206-201208

RS 8.0,SUPER RED 5,3P0

main69211-74020-P6i201305-201307

LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69250-74010-A0i201305-201405

SUPER WHITE 2,040

main69250-74010-A1i201405-201606

WHITE PEARL CS.,070

main69250-74010-B0i201008-201305

SILVER ME.,1F7

main69250-74010-B4i201305-201606

GRAY ME.,1G3

main69250-74010-B5i201008-201305

CEMENT GRAY ME.,1H5

main69250-74010-B8i201405-201606

DK. STEEL MC.,1H2

main69250-74010-D3i201008-201305

BLACKISH RED MC.,3R0

main69250-74010-J4i201008-201305

DK.BLUE MC.,8S6

main69250-74010-J7i201305-201606

BLUE ME.,8T7

main69250-74010-C0i201412-201502

LIMITED PACKAGE-SPECIAL EDITION,BLACK,202

main69250-74010-D0i201605-201606

LIMITED PACKAGE-RS10.0,RED M.M.,3R3

main69250-74010-D1i201206-201208

RS 8.0,SUPER RED 5,3P0

main69250-74010-F2i201107-201109

SPECIAL EDITION,YELLOW,5A3

main69250-74010-P6i201305-201307

LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69217-74010-A0i201405-201606

WHITE PEARL CS.,070

main69217-74010-A1i201305-201405

SUPER WHITE 2,040

main69217-74010-B0i201008-201305

SILVER ME.,1F7

main69217-74010-B4i201305-201606

GRAY ME.,1G3

main69217-74010-B5i201008-201305

CEMENT GRAY ME.,1H5

main69217-74010-B8i201405-201606

DK. STEEL MC.,1H2

main69217-74010-D3i201008-201305

BLACKISH RED MC.,3R0

main69217-74010-J0i201008-201305

DK.BLUE MC.,8S6

main69217-74010-J5i201305-201606

BLUE ME.,8T7

main69217-74010-C0i201412-201502

LIMITED PACKAGE-SPECIAL EDITION,BLACK,202

main69217-74010-D0i201605-201606

LIMITED PACKAGE-RS10.0,RED M.M.,3R3

main69217-74010-D1i201206-201208

RS 8.0,SUPER RED 5,3P0

main69217-74010-F3i201107-201109

SPECIAL EDITION,YELLOW,5A3

main69217-74010-P6i201305-201307

LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-74030-A0supersedes 69211-74020-A0i201405-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),WHITE PEARL CS.,070

main69210-74030-A1supersedes 69211-74020-A1i201305-201405

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SUPER WHITE 2,040

main69210-74030-B0supersedes 69211-74020-B0i201305-201405

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SILVER ME.,1F7

main69210-74030-B3supersedes 69211-74020-B4i201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),GRAY ME.,1G3

main69210-74030-B4supersedes 69211-74020-B5i201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),CEMENT GRAY ME.,1H5

main69210-74030-C0supersedes 69211-74020-C0i201305-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLACK,202

main69210-74030-D1supersedes 69211-74020-D1i201206-201208

RS 8.0&WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),SUPER RED 5,3P0

main69210-74030-D2supersedes 69211-74020-D3i201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLACKISH RED MC.,3R0

main69210-74030-F2i201107-201109

SPECIAL EDITION,YELLOW,5A3

main69210-74030-J0supersedes 69211-74020-J0i201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),DK.BLUE MC.,8S6

main69210-74030-J5supersedes 69211-74020-J6i201305-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLUE ME.,8T7

main69210-74030-P3supersedes 69211-74020-B8i201405-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),DK. STEEL MC.,1H2

main69211-74020-D0i201605-201606

LIMITED PACKAGE-RS10.0,RED M.M.,3R3

main69211-74020-D1i201206-201208

RS 8.0,SUPER RED 5,3P0

main69211-74020-P6i201305-201307

LIMITED PACKAGE-SCION 10,BLUEISH SILVER CS.,1J8

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30111×2i201008-201305

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-47020×2i201008-201305

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-47010-B2i201008-201305

DK.GRAY,TRIM1#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-47010-B2i201008-201305

DK.GRAY,TRIM1#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030i201008-201305

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040i201008-201305

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-21040i201008-201305

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-21040i201008-201305

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2i201008-201305

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33010×2i201008-201305

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-21040i201008-201305

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-21040i201008-201305

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040×2i201008-201305

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-21030i201008-201305

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-21030i201305

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9018905003

main90189-05003

9356855016

main93568-55016

33 parts on this diagram · 1 diagram in section
