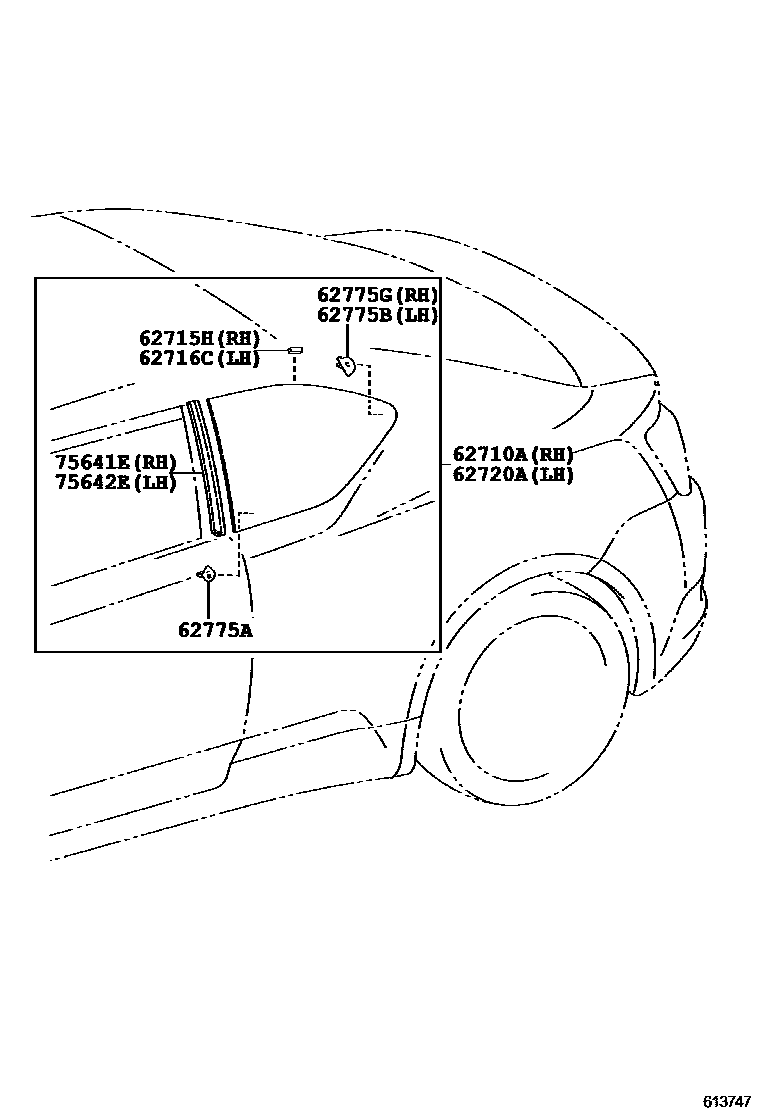

Toyota SCION TC — QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

62720AWINDOW ASSY, QUARTER, LH

62775ACLIP, QUARTER WINDOW

62775BCLIP, QUARTER WINDOW, LH

62775GCLIP, QUARTER WINDOW, RH

75641EMOULDING, QUARTER WINDOW, RH

75642EMOULDING, QUARTER WINDOW, LH

9 parts on this diagram · 1 diagram in section

QUARTER WINDOW for Toyota SCION TC

This section contains 9 genuine Toyota parts for the QUARTER WINDOW system of the Toyota SCION TC. Key components include: WINDOW ASSY, QUARTER, RH, DAM, QUARTER WINDOW GLASS ADHESIVE, RH, DAM, QUARTER WINDOW GLASS ADHESIVE, LH, WINDOW ASSY, QUARTER, LH, CLIP, QUARTER WINDOW.
