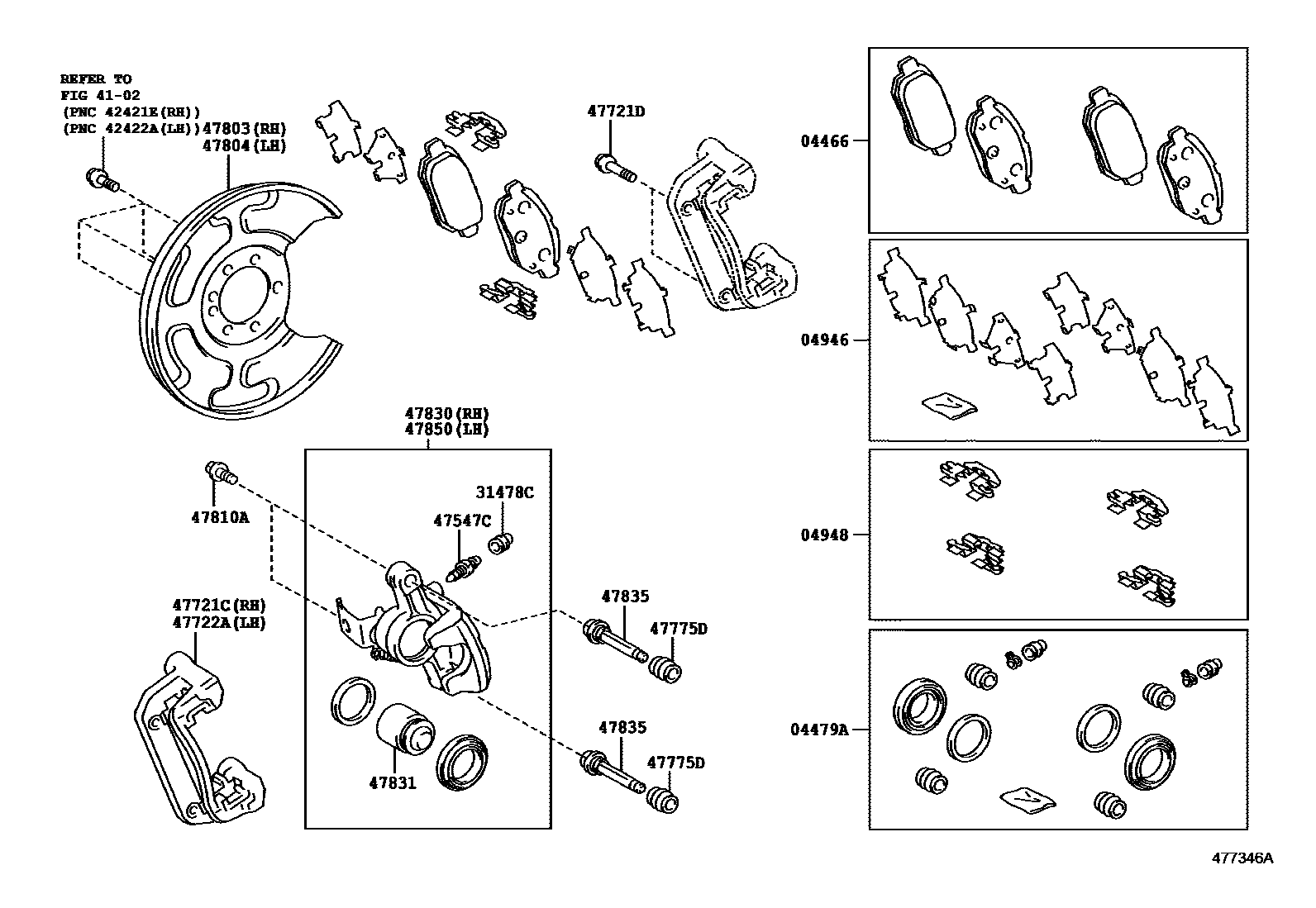

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-21020201206-201305

main04466-52150201008-201112

main04466-52151201112-201206

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230201008-201305

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47070201008-201305

04948FITTING KIT, DISC BRAKE, REAR

main04948-12050201008-201305

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010201008-201305

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050201008-201305

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-21030201008-201305

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main91552-C1025201008-201606

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-21030201008-201305

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150201008-201305

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-21020201008-201606

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47881-21020201008-201606

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102201008-201305

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12240201008-201305

47831PISTON, REAR DISC BRAKE

main47831-52050201008-201305

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150201008-201305

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12240201008-201305

18 parts on this diagram · 1 diagram in section
