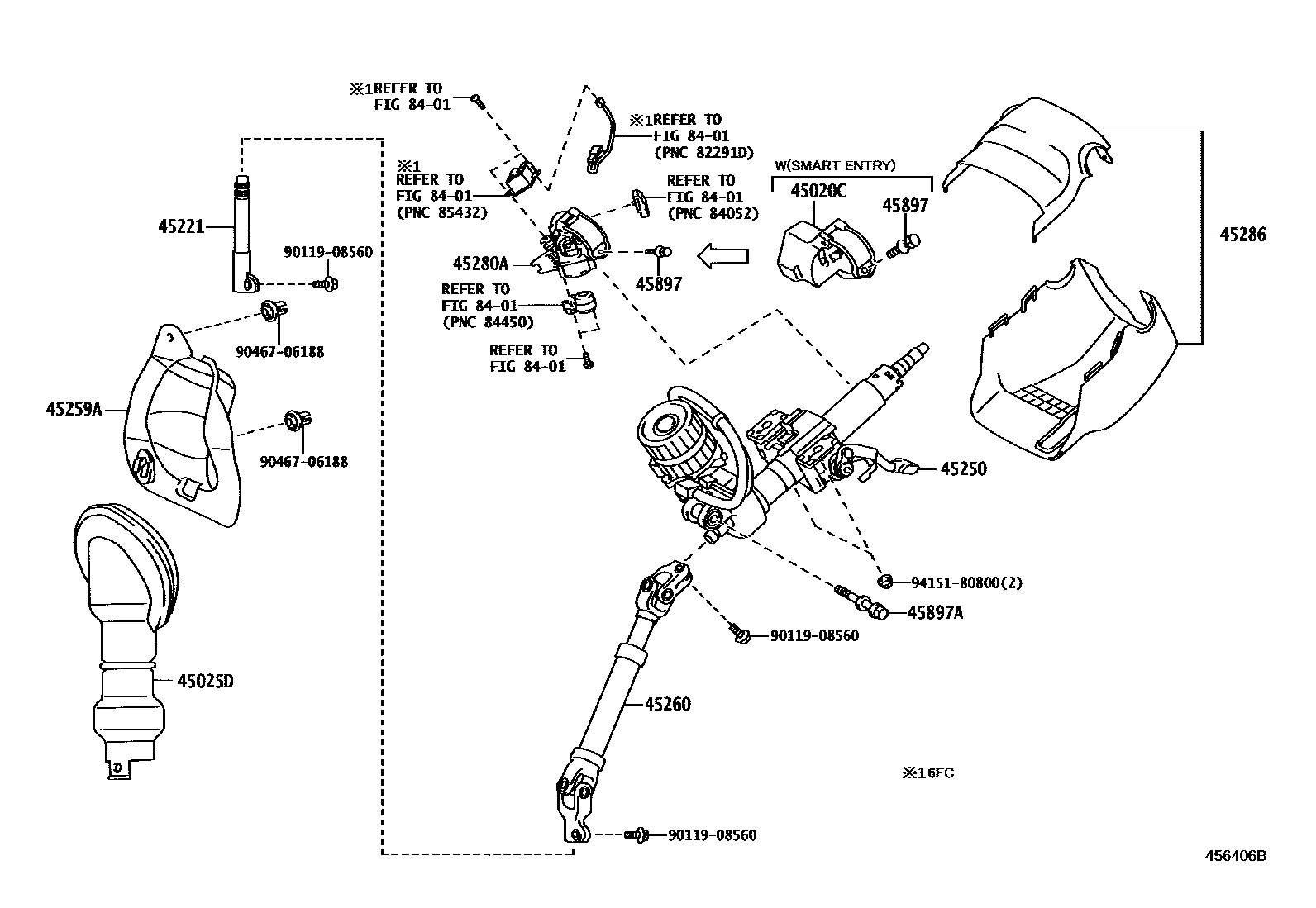

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-68040iAGT20201305-201606

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-21030iAGT20201008-201305

45221SHAFT, STEERING INTERMEDIATE

main45221-21010iAGT20201008-201305

45250COLUMN ASSY, STEERING

main45250-21200supersedes 45250-21221iAGT20201008-201009

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

main45250-21201supersedes 45250-21221iAGT20201009-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK)

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-21020iAGT20201008-201305

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-21060iAGT20201305-201407

main45260-21061iAGT20201408

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42130iAGT20..6FC201008-201305

main45280-42140iAGT20..6F201008-201305

45286COVER, STEERING COLUMN

main45286-12993-C0supersedes 45286-12986-C0iAGT20201008-201305

WIRELESS DOOR LOCK-W(PANIC) & W(SMART ENTRY:FRONT & BACK),BLACK,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-12020iAGT20201008-201305

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iAGT20201008-201211

main90119-10980iAGT20201212-201305

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9046706188

main90467-06188

9415180800

main94151-80800

14 parts on this diagram · 1 diagram in section
