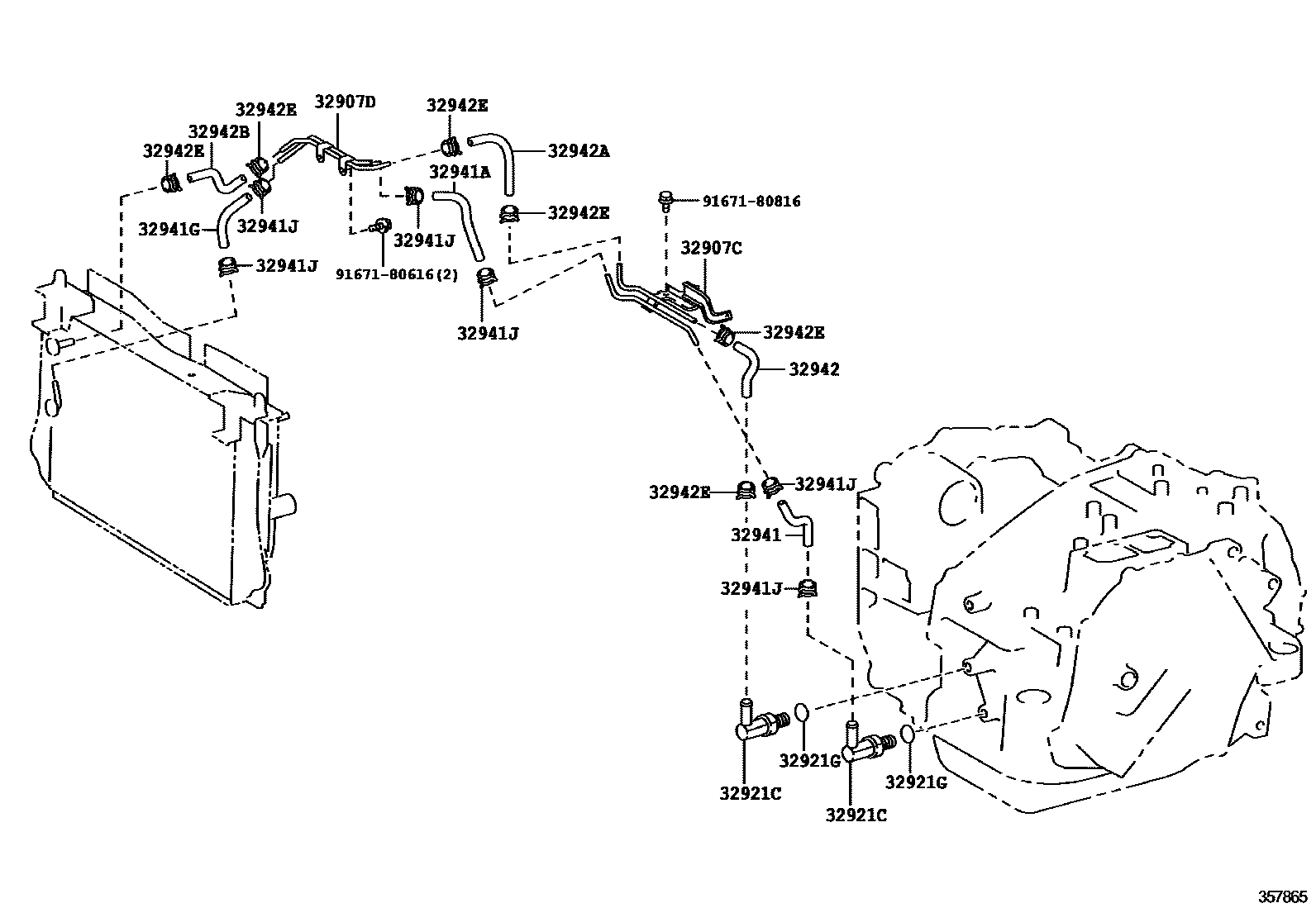

OIL COOLER & TUBE (ATM)

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-21010iAGT20..6FC201008-201305

32907DTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.2

main32907-21020iAGT20..6FC201008-201305

32921CUNION(FOR OIL COOLER TUBE)

main90407-14032×2iAGT20..6FC201008-201305

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006×2iAGT20..6FC201008-201108

main90301-11031×2iAGT20..6FC201108-201305

32941HOSE, OIL COOLER INLET, NO.1

main32943-21060iAGT20..6FC201008-201305

32941AHOSE, OIL COOLER INLET, NO.2

main32943-21150iAGT20..6FC201008-201305

32941GHOSE, OIL COOLER INLET, NO.3

main90445-17069iAGT20..6FC201008-201305

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×6iAGT20..6FC201008-201305

32942HOSE, OIL COOLER OUTLET, NO.1

main32943-21050iAGT20..6FC201008-201305

32942AHOSE, OIL COOLER OUTLET, NO.2

main32943-21160iAGT20..6FC201008-201305

32942BHOSE, OIL COOLER OUTLET, NO.3

main32943-21090iAGT20..6FC201008-201305

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×6iAGT20..6FC201008-201305

9167180616

main91671-80616

9167180816

main91671-80816

14 parts on this diagram · 1 diagram in section
