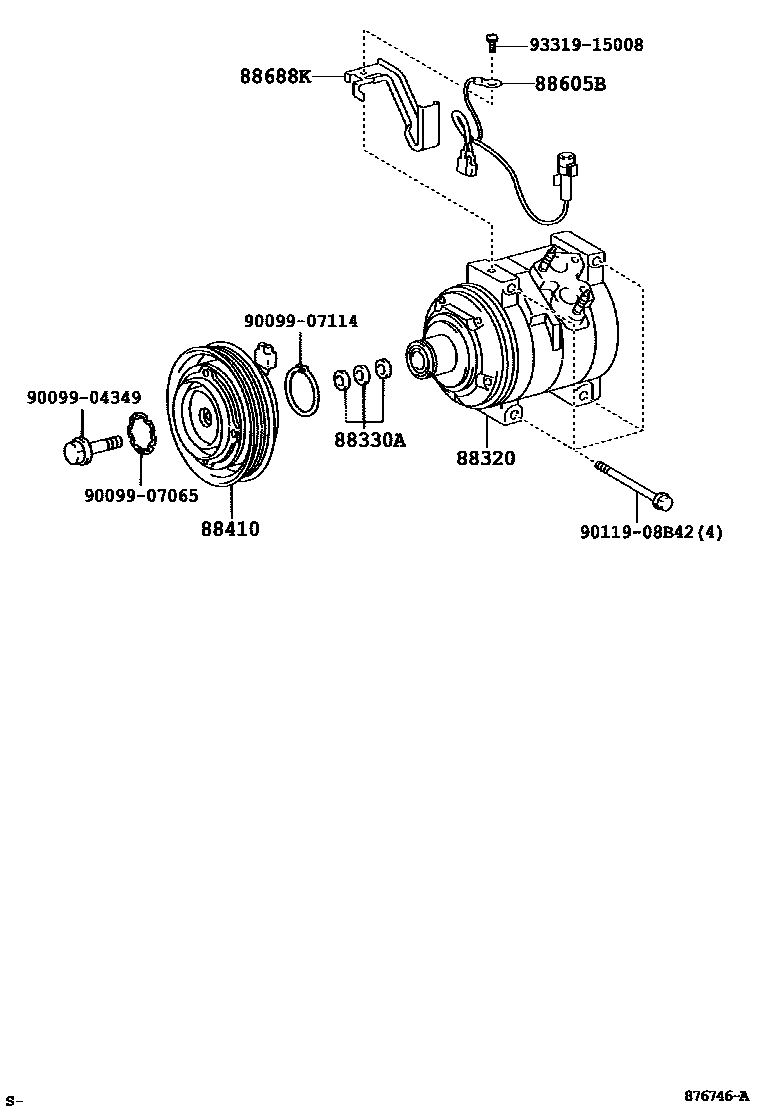

HEATING & AIR CONDITIONING - COMPRESSOR

88320COMPRESSOR ASSY, COOLER

main88320-21100iANT10200405

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iANT10200405

88410CLUTCH ASSY, MAGNET

main88410-21030iANT10200405-200605

main88410-21040iANT10200605

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-21010iANT10200405

88688KBRACKET, COOLER COMPRESSOR

main88688-21090iANT10200405

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9331915008

main93319-15008

10 parts on this diagram · 1 diagram in section
