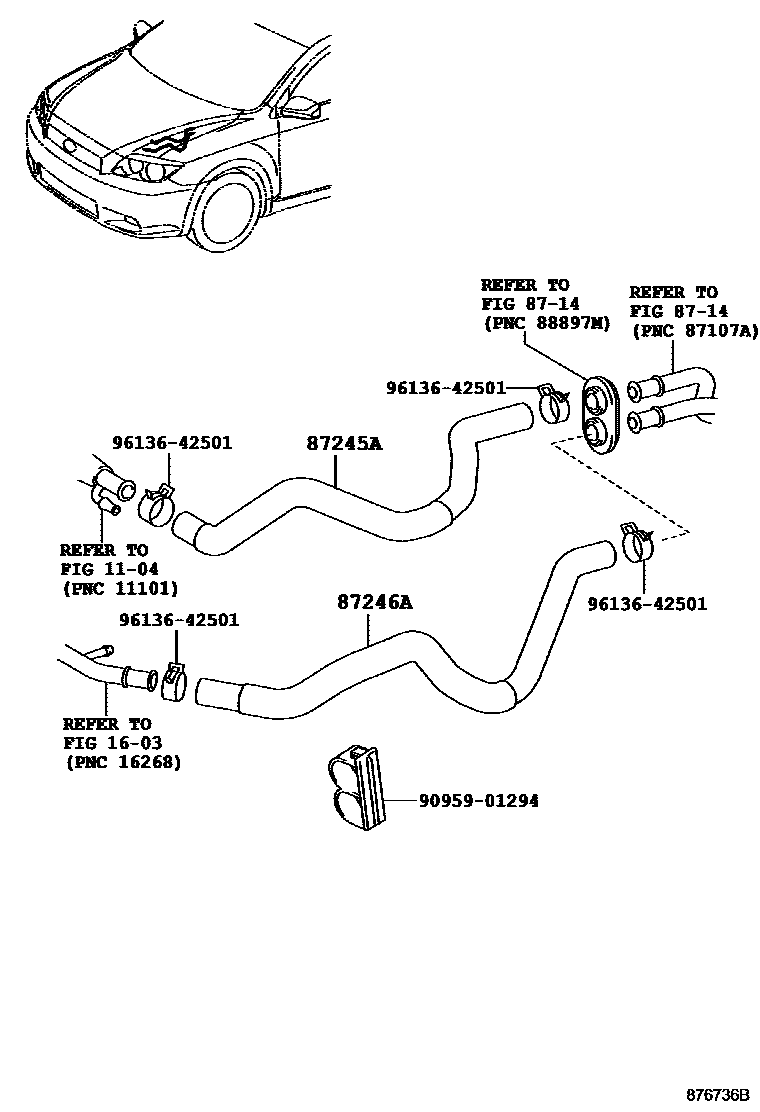

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-21190iANT10200405-200702

main87245-21191iANT10200703-200704

main87245-21192iANT10200705

87246AHOSE, HEATER WATER, OUTLET A

main87245-21200iANT10200405-200702

main87245-21201iANT10200703-200704

main87245-21202iANT10200705

9095901294

main90959-01294

9613642501

main96136-42501

7 parts on this diagram · 1 diagram in section
