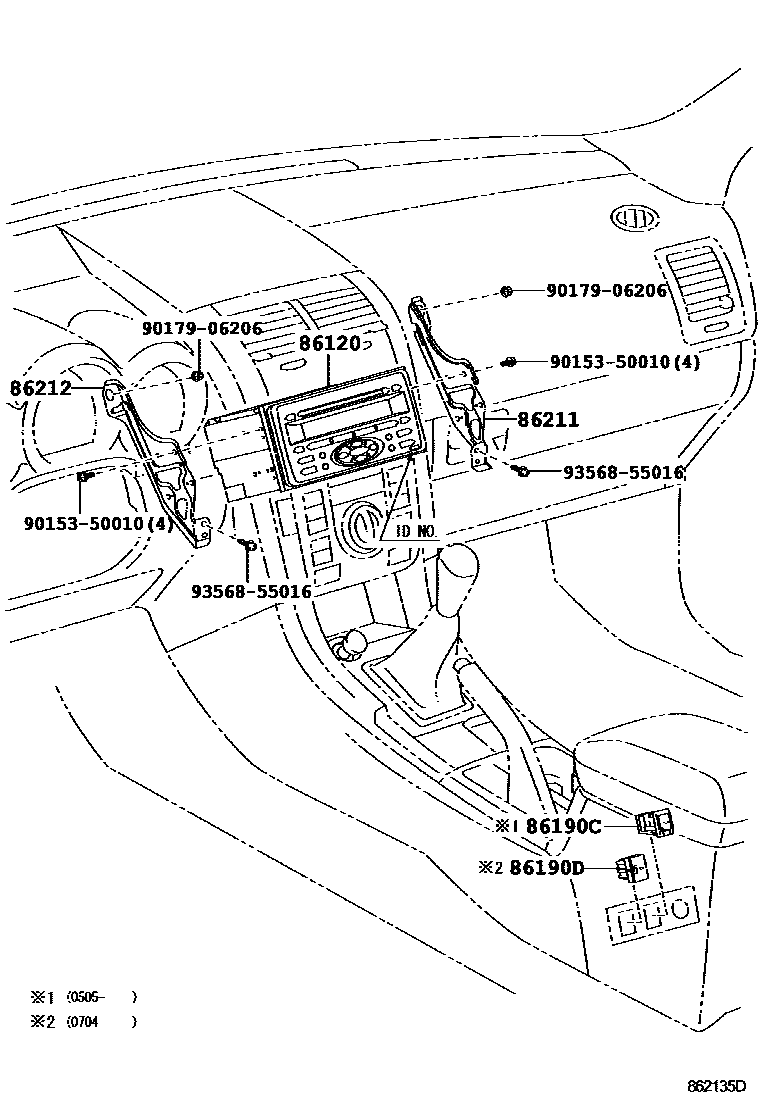

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0W100supersedes 86120-0W110iANT10200405-200505

PIONEER,ID=T1804,AUDIO-RADIO CD 6SP

main86120-0W110iANT10200405-200505

PIONEER,ID=T1805,AUDIO-RADIO CD-CH 6SP

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12020iANT10200704

main86190-52010iANT10200505-200703

86190DADAPTER ASSY, STEREO JACK, NO.2

main86190-12030iANT10200704

86211BRACKET, RADIO, NO.1

main86211-21040iANT10200405

86212BRACKET, RADIO, NO.2

main86212-21040iANT10200405

9015350010

main90153-50010

9017906206

main90179-06206

9356855016

main93568-55016

8 parts on this diagram · 2 diagrams in section
