ABS & VSC

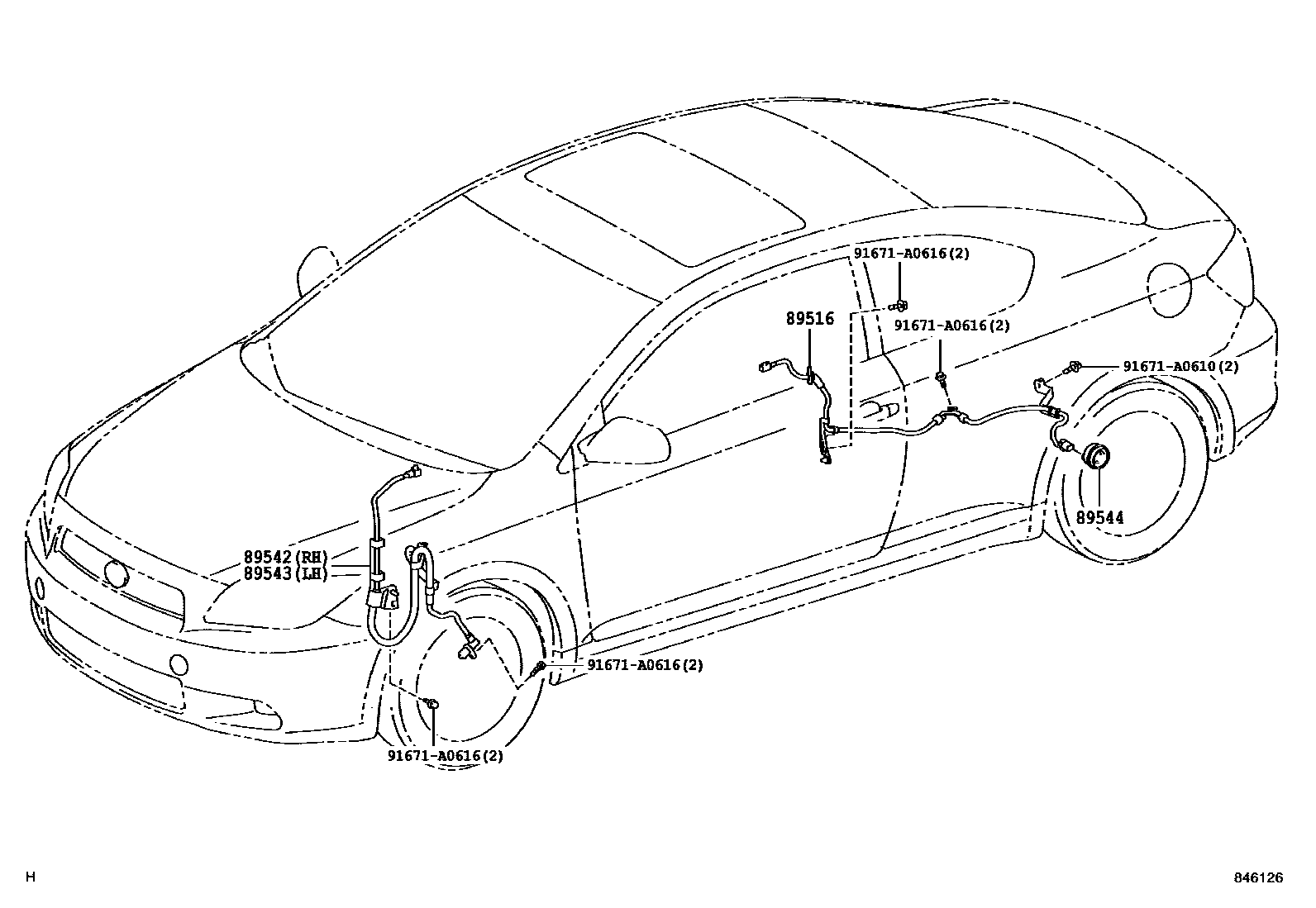

Parts diagram

89516WIRE, SKID CONTROL SENSOR

main89516-21030i200405

RH

main89516-21040i200405

LH

89542SENSOR, SPEED, FRONT RH

main89542-20170i200405

89543SENSOR, SPEED, FRONT LH

main89543-20170i200405

89544SENSOR, SKID CONTROL

main89544-32040×2i200405-201007

91671A0610

main91671-A0610

91671A0616

main91671-A0616

6 parts on this diagram · 1 diagram in section
