ELECTRONIC FUEL INJECTION SYSTEM

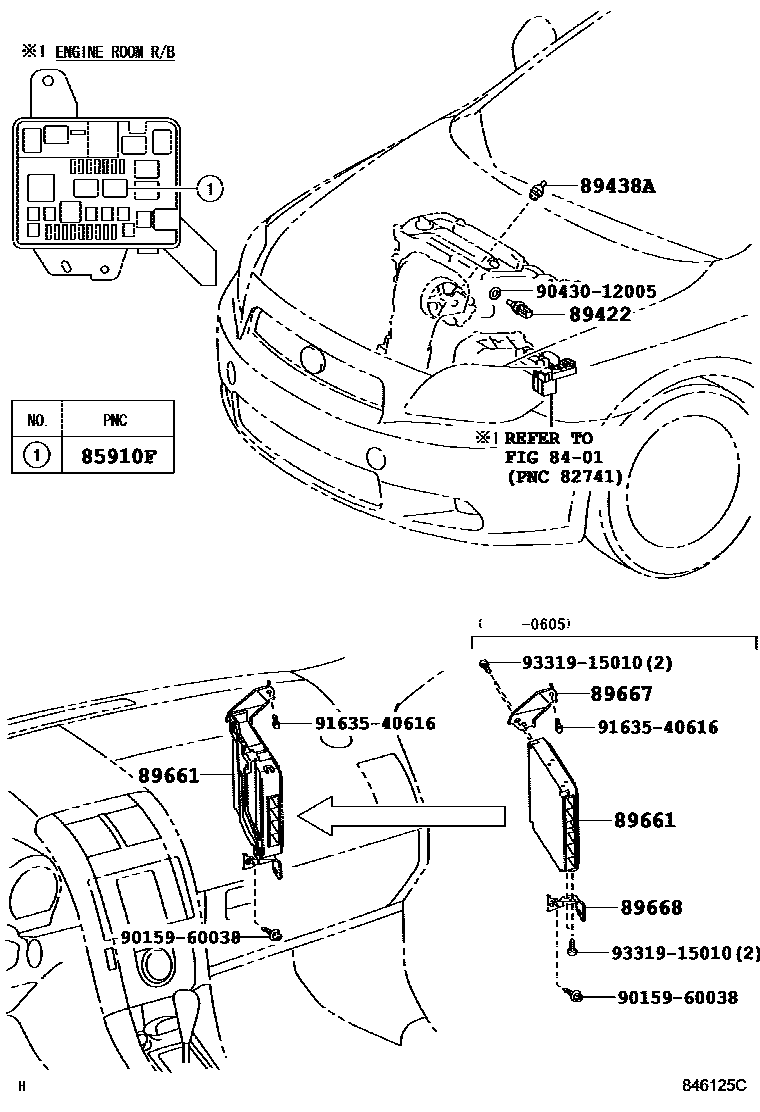

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910FRELAY, COMPUTER (FOR EFI)

main90987-02022iANT10200405-201007

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iANT10200405

89438ASWITCH, POWER STEERING OIL PRESSURE

main89438-33010iANT10200405-201007

89661COMPUTER, ENGINE CONTROL

main89661-21390iANT10..5F200405-200406

main89661-21391iANT10..5F200407-200505

main89661-21420iANT10..4FC200405-200406

main89661-21421iANT10..4FC200407-200505

main89661-21450iANT10..5F200505-200605

main89661-21460iANT10..4FC200505-200605

main89661-21470iANT10..5F200605-200704

main89661-21480iANT10..4FC200605-200704

main89661-21490iANT10..5F200704-200804

main89661-21500iANT10..4FC200704-200804

main89661-21510iANT10..5F200804-201007

main89661-21520iANT10..4FC200804-201007

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-21030iANT10200405-200605

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-21030iANT10200405-200605

9015960038

main90159-60038

9043012005

main90430-12005

9163540616

main91635-40616

9331915010

main93319-15010

11 parts on this diagram · 1 diagram in section
