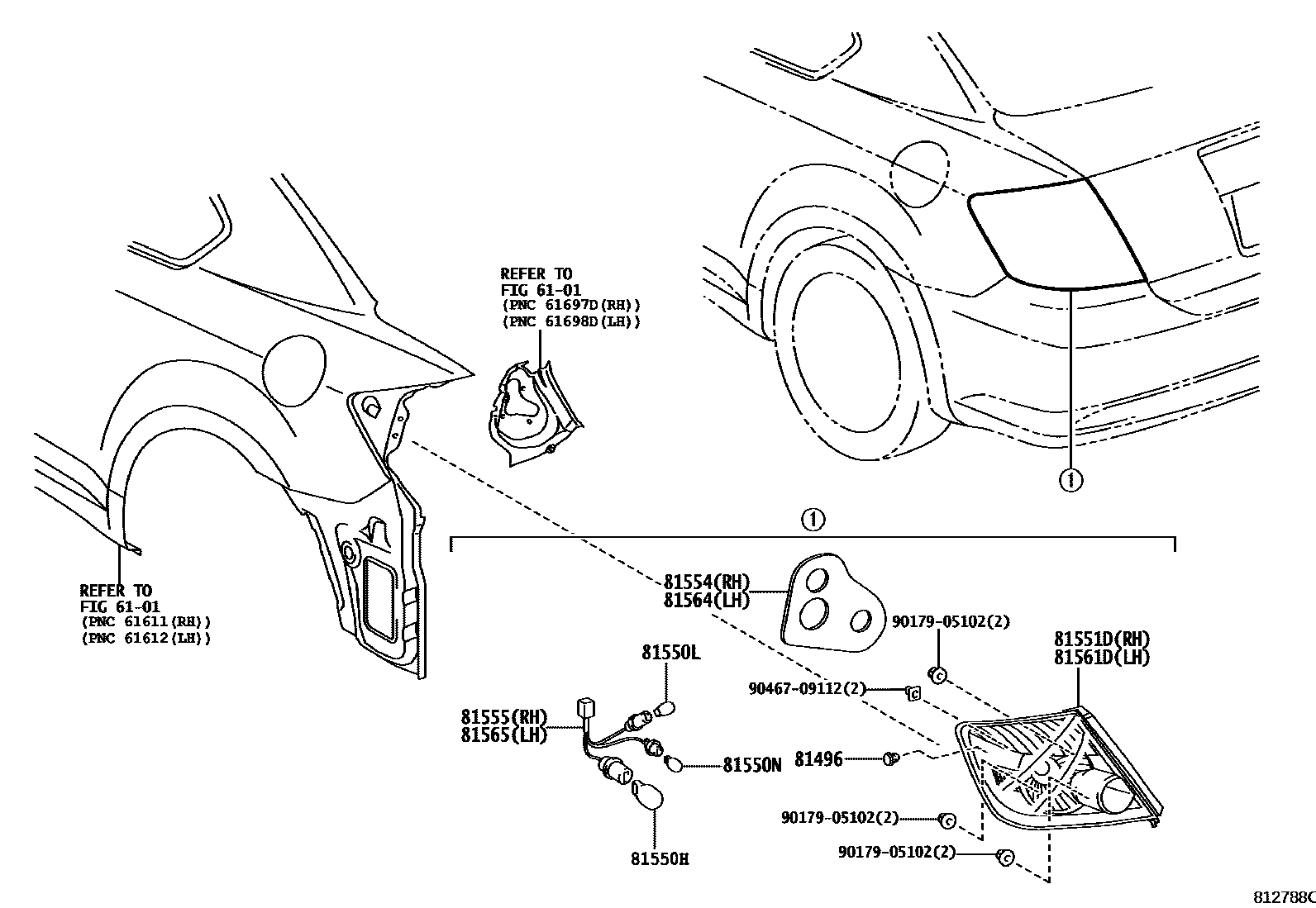

REAR COMBINATION LAMP

0001 1 0002 1BASE PACKAGE 0003 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-21010×2iANT10200405

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043×2iANT10200405

81550NBULB, BACK UP LAMP

main90981-11059×2iANT10200405

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-21230iANT10200405-200704

main81551-21240iANT10200704

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-21230iANT10200405-200704

main81554-21240iANT10200704

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-21230iANT10200405-200704

main81555-21240iANT10200704

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-21230iANT10200405-200704

main81561-21240iANT10200704

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-21230iANT10200405-200704

main81564-21240iANT10200704

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-21230iANT10200405-200704

main81555-21240iANT10200704

9017905102

main90179-05102

9046709112

main90467-09112

12 parts on this diagram · 3 diagrams in section
