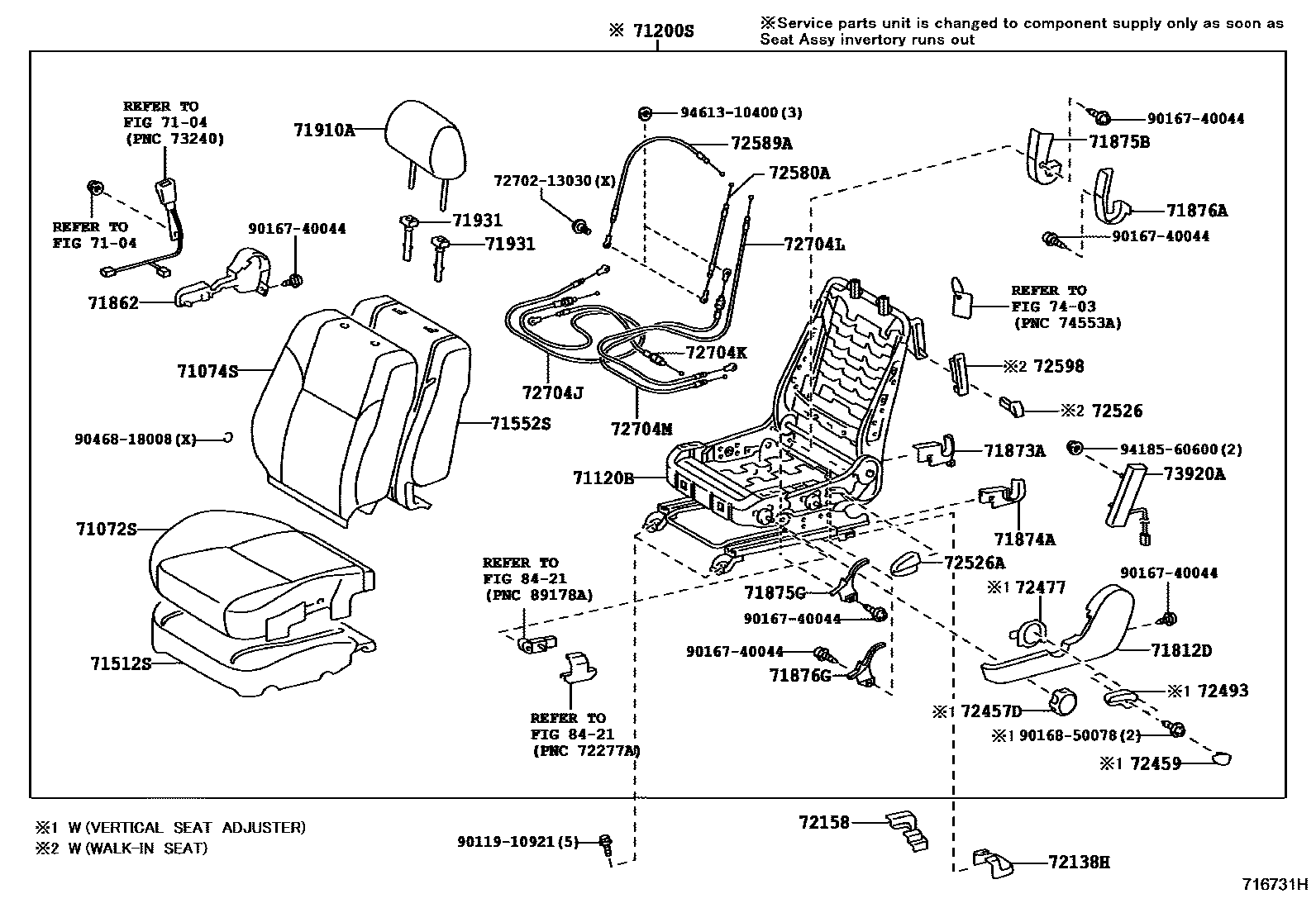

FRONT SEAT & SEAT TRACK

0001 1LH SEAT,W(SRS SIDE AIR BAG) 0002 1LH SEAT 0003 1RH SEAT,W(SRS SIDE AIR BAG) 0004 1RH SEAT,W(SRS SIDE AIR BAG) 0005 1RH SEAT 0006 1RH SEAT

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-21350-C0iANT10200405-200605

BLACK,TRIM1#

main71072-21351-B2iANT10200605-200704

DK.GRAY,TRIM1#

main71072-21351-B3iANT10200704-200804

DK.GRAY,TRIM1#

main71072-21351-B4iANT10200804-201007

DK. GRAY,TRIM1#

main71072-21350-C1iANT10200503-200504

SPECIAL EDITION,BLACK,TRIM14

main71072-21351-B5iANT10200902-200903

SPECIAL EDITION,DARK GRAY,TRIM14

main71072-21351-B6iANT10201001-201003

SPECIAL EDITION,DK.GRAY,TRIM14

main71072-21380-B0iANT10200605-200704

BASE PACKAGE&SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DARK GRAY,TRIM1#

main71072-21390-C0iANT10200603-200604

SPECIAL EDITION,BLACK,TRIM14

main71072-21430-B0iANT10200701-200703

SPECIAL EDITION,LT.GRAY,TRIM14

main71072-21440-B0iANT10200802-200803

SPECIAL EDITION,MD.GRAY,TRIM14

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-21251-B4iANT10200804-201007

DK. GRAY,TRIM1#

main71074-21240-C1iANT10200503-200504

SPECIAL EDITION,BLACK,TRIM14

main71074-21250-C0supersedes 71074-21240-C0iANT10200405-200605

SRS AIR BAG-W(SIDE & CURTAIN SHIELD),BLACK,TRIM1#

main71074-21250-C1iANT10200503-200504

SPECIAL EDITION&SRS AIR BAG-W(SIDE & CURTAIN SHIELD),BLACK,TRIM14

main71074-21251-B2iANT10200605-200704

SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DK.GRAY,TRIM1#

main71074-21251-B5iANT10200902-200903

SPECIAL EDITION,DARK GRAY,TRIM14

main71074-21252-B6iANT10201001-201003

SPECIAL EDITION,DK.GRAY,TRIM14

main71074-21260-B0supersedes 71074-21241-B2iANT10200605-200704

BASE PACKAGE,DARK GRAY,TRIM1#

main71074-21270-B0iANT10200605-200704

BASE PACKAGE&SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DARK GRAY,TRIM1#

main71074-21280-C0iANT10200603-200604

SPECIAL EDITION,BLACK,TRIM14

main71074-21320-B0iANT10200701-200703

SPECIAL EDITION,LT.GRAY,TRIM14

main71074-21330-B0iANT10200701-200703

SPECIAL EDITION&SRS AIR BAG-W(SIDE & CURTAIN SHIELD),LT.GRAY,TRIM14

main71074-21340-B0iANT10200802-200803

SPECIAL EDITION,MD.GRAY,TRIM14

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

main71120-21061iANT10200503-200605

main71120-21070iANT10200605-200704

SRS AIR BAG-W(SIDE & CURTAIN SHIELD)

main71120-21071supersedes 71120-21070iANT10200503-200605

SRS AIR BAG-W(SIDE & CURTAIN SHIELD)

main71120-21090supersedes 71120-21060iANT10200605-200704

BASE PACKAGE

main71120-21100supersedes 71120-21070iANT10200605-200704

BASE PACKAGE&SRS AIR BAG-W(SIDE & CURTAIN SHIELD)

71200SSEAT ASSY, FRONT LH

main71200-21700-B2iANT10200704-200804

DK.GRAY,TRIM1#

main71200-21700-B3iANT10200804-201007

DK.GRAY,TRIM1#

main71200-21660-B1iANT10200405-200605

SRS AIR BAG-W(SIDE & CURTAIN SHIELD),BLACK,TRIM1#

main71200-21660-C0iANT10200503-200504

SPECIAL EDITION&SRS AIR BAG-W(SIDE & CURTAIN SHIELD),BLACK,TRIM14

main71200-21700-B1iANT10200605-200704

SRS AIR BAG-W(SIDE & CURTAIN SHIELD),DK.GRAY,TRIM1#

main71200-21700-B4iANT10200902-200903

SPECIAL EDITION,DARK GRAY,TRIM14

main71200-21701-B5iANT10201001-201003

SPECIAL EDITION,DK.GRAY,TRIM14

main71200-21720-B0iANT10200704-200804

BASE PACKAGE,DK.GRAY,TRIM1#

main71200-21730-C0iANT10200603-200604

SPECIAL EDITION,BLACK,TRIM14

main71200-21770-B0iANT10200701-200703

SPECIAL EDITION&SRS AIR BAG-W(SIDE & CURTAIN SHIELD),LT.GRAY,TRIM14

main71200-21780-B0iANT10200802-200803

SPECIAL EDITION,MD.GRAY,TRIM14

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-21070iANT10200405-201007

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-21080iANT10200405-200704

SRS AIR BAG-W(SIDE & CURTAIN SHIELD)

main71552-21090supersedes 71552-21070iANT10200605-200704

BASE PACKAGE

main71552-21100supersedes 71552-21080iANT10200704-200804

BASE PACKAGE

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-21050-B0iANT10200405-200605

DK.GRAY,TRIM1#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-21030-B0iANT10200405-200605

DK.GRAY,TRIM1#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-21010-B2iANT10200605-201007

DK.GRAY,TRIM1#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-21010-B2iANT10200405-200605

DK.GRAY,TRIM1#

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-21010-B2iANT10200405-200605

DK.GRAY,TRIM1#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-21010-B2iANT10200405-200605

DK.GRAY,TRIM1#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71875-21060-B0iANT10200405-200605

DK.GRAY,TRIM1#

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-60160-B3iANT10200405-201007

DK.GRAY,TRIM1#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-58060iANT10200405-201007

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-21060-B0iANT10200405-200605

DK.GRAY,TRIM1#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-60160-B3iANT10200405-201007

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-21160-C0iANT10200405-201007

BLACK,TRIM1#,LH SEAT

main71910-21180-B0iANT10200405-200605

DK.GRAY,TRIM1#,RH SEAT

main71910-21180-C0iANT10200605-201007

BLACK,TRIM1#,RH SEAT

main71910-21170-B0iANT10200605-200804

BASE PACKAGE,DK.GRAY,TRIM1#,LH SEAT

main71910-21190-C0iANT10200603-200604

SPECIAL EDITION,BLACK,TRIM14,LH SEAT

main71910-21200-C0iANT10200603-200604

SPECIAL EDITION,BLACK,TRIM14,RH SEAT

main71910-21220-C0iANT10200701-200703

SPECIAL EDITION,BLACK,TRIM14,LH SEAT

main71910-21230-C0iANT10200701-200703

SPECIAL EDITION,BLACK,TRIM14,RH SEAT

main71910-21250-C0iANT10200802-200803

SPECIAL EDITION,BLACK,TRIM14,LH SEAT

main71910-21270-C0iANT10200802-200803

SPECIAL EDITION,BLACK,TRIM14,RH SEAT

main71910-68040-B1iANT10200605-200804

BASE PACKAGE,DK.GRAY,TRIM1#,RH SEAT

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0×2iANT10200802-201007

W(LOCK),DK.GRAY,TRIM1#

main71930-47010-B2×2iANT10200405-200801

W(LOCK),DK.GRAY,TRIM1#

main71931-47010-B2×2iANT10200405-201007

W/O(LOCK),DK.GRAY,TRIM1#

72138HCOVER, FRONT SEAT TRACK, LH REAR INNER

main72137-21020-B0iANT10200405-201007

DK.GRAY,TRIM1#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-21020-B0iANT10200405-201007

DK.GRAY,TRIM1#

72457DKNOB, VERTICAL SEAT ADJUSTER, LH

main72457-58010-B0iANT10200405-201007

DK.GRAY,TRIM1#

72459CAP, VERTICAL SEAT ADJUSTER KNOB

main72459-60010-B2iANT10200405-200605

DK.GRAY,TRIM1#

72477SPACER, VERTICAL ADJUSTER

main72477-33030-B1iANT10200605-201007

DK.GRAY,TRIM1#

main72477-33030-C0iANT10200405-200605

DK.GRAY,TRIM1#

72493HANDLE, VERTICAL ADJUSTING, NO.2

main72494-21010-B0iANT10200405-201007

DK.GRAY,TRIM1#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72525-21010iANT10200405-200905

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-58040-B0iANT10200405-200605

DK.GRAY,TRIM1#

72580ACABLE ASSY, RECLINING ADJUSTING, LH

main72704-21060iANT10200405-201007

72589ACABLE, RECLINING REMOTE CONTROL

main72704-21070iANT10200405-201007

72598BEZEL, RECLINING REMOTE CONTROL LEVER, LH

main72597-21010iANT10200405-201007

72704JCABLE, FRONT SEAT RECLINING CONTROL, NO.2

main72704-21080iANT10200405-201007

72704KCABLE, FRONT SEAT RECLINING CONTROL, NO.3

main72704-21090iANT10200405-201007

72704LCABLE, FRONT SEAT RECLINING CONTROL, NO.4

main72704-21100iANT10200405-201007

72704MCABLE, FRONT SEAT RECLINING CONTROL, NO.5

main72704-21110iANT10200405-201007

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-21010iANT10200405-200704

SRS AIR BAG-W(SIDE & CURTAIN SHIELD)

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8421AIR BAG

→ Go to FIG 84-21

7270213030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-13030

9011910921

main90119-10921

9016740044

main90167-40044

9016850078

main90168-50078

9046818008

main90468-18008

9418560600

main94185-60600

9461310400

main94613-10400

45 parts on this diagram · 6 diagrams in section
