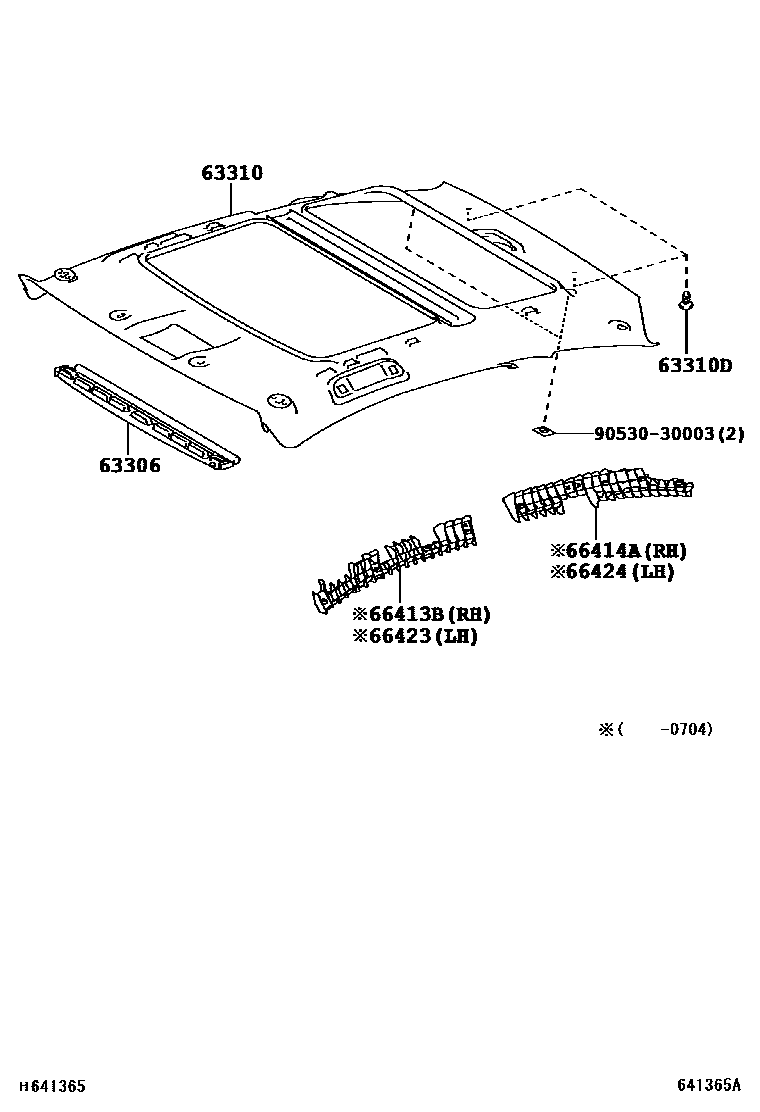

ROOF HEADLINING & SILENCER PAD

63306TRIM SUB-ASSY, SUNSHADE

main63306-21020-B1iANT10200405-201007

LT.GRAY,TRIM1#

63310HEADLINING ASSY, ROOF

main63310-21190-B0iANT10200405-200804

LT.GRAY,TRIM1#

main63310-21191-B0iANT10200805-201007

LT.GRAY,TRIM1#

main63310-21240-B1iANT10200605-200704

BASE PACKAGE&SRS AIR BAG-W(SIDE & CURTAIN SHIELD),LT.GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05164-B0×2iANT10200405-201007

LT.GRAY,TRIM1#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-21020iANT10200605-200704

BASE PACKAGE

66414ASPACER, SIDE RAIL, REAR RH

main66414-21020iANT10200605-200704

BASE PACKAGE

66423SPACER, SIDE RAIL, FRONT LH

main66423-21020iANT10200605-200704

BASE PACKAGE

66424SPACER, SIDE RAIL, REAR LH

main66424-21020iANT10200605-200704

BASE PACKAGE

9053030003

main90530-30003

8 parts on this diagram · 1 diagram in section
