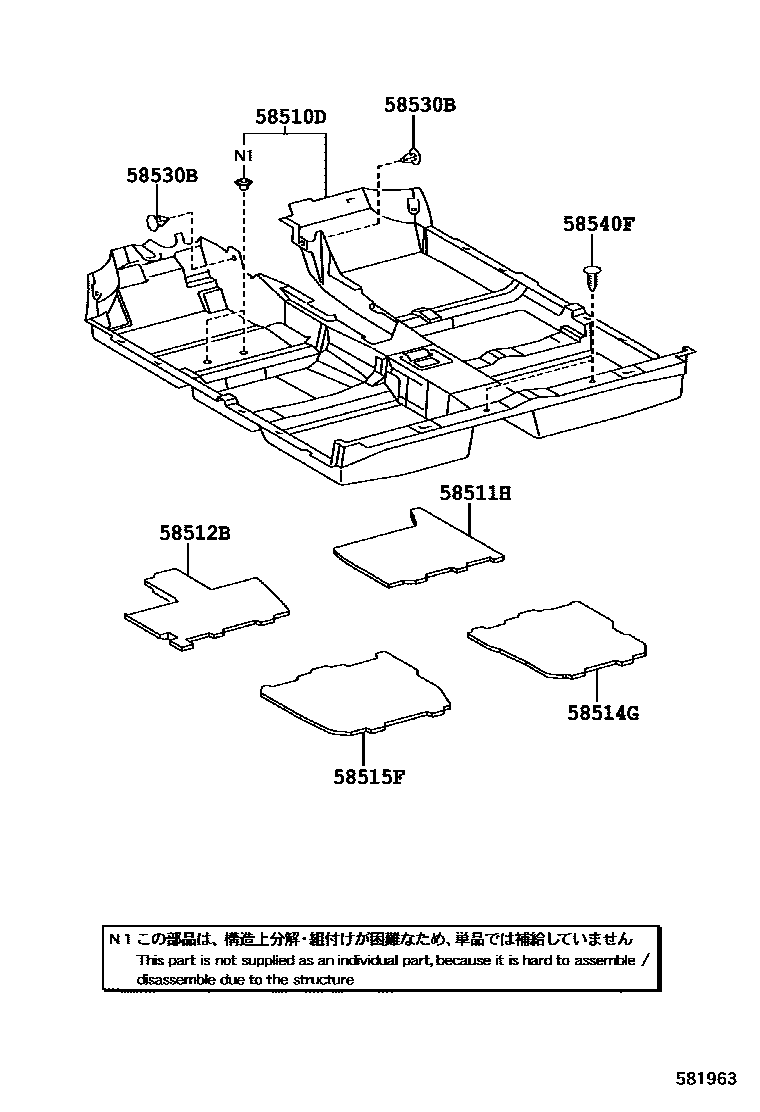

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-21550-B1iANT10200405-201007

DARK GRAY,TRIM1#

58511HMAT, FLOOR, FRONT RH

main58511-21430iANT10200405

58512BMAT, FLOOR, FRONT LH

main58512-21090iANT10200405

58514GMAT, FLOOR, REAR RH

main58514-21120iANT10200405

58515FMAT, FLOOR, REAR LH

main58515-21010iANT10200405

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-09110-B3×2iANT10200405-201007

DK.GRAY,TRIM1#

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-07049-B7×2iANT10200405-201007

DK.GRAY

7 parts on this diagram · 1 diagram in section
