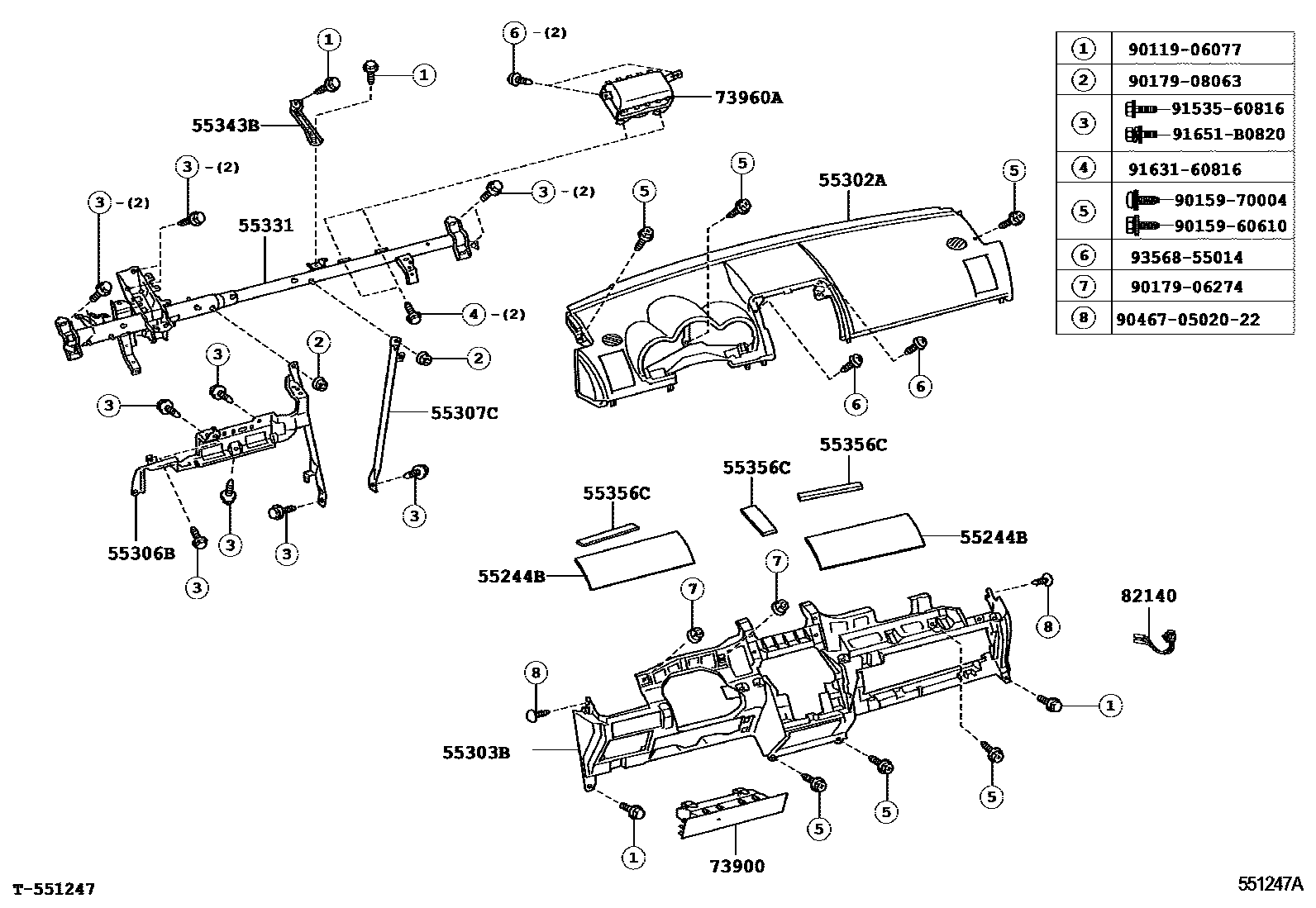

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55244BSILENCER, FRONT PANEL SIDE, NO.2

main55244-63010×2iANT10200405

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-21020-B0iANT10200405-200704

DK.GRAY,TRIM1#

main55302-21021-B0iANT10200704-201007

DK.GRAY,TRIM1#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-21020-B0iANT10200405-201007

DK.GRAY,TRIM1#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-21030iANT10200405

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-21010iANT10200405

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-21050iANT10200405

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-21010iANT10200405

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-20060×3iANT10200405

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-21020-B0iANT10200405-201007

DK.GRAY,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-21020iANT10200405-200605

main73960-21021iANT10200605-200702

82140WIRE ASSY, INSTRUMENT PANEL

main82140-30020iANT10200405

9011906077

main90119-06077

9015960610

main90159-60610

9015970004

main90159-70004

9017906274

main90179-06274

9017908063

main90179-08063

904670502022

main90467-0502022

9153560816

main91535-60816

9163160816

main91631-60816

91651B0820

main91651-B0820

9356855014

main93568-55014

21 parts on this diagram · 4 diagrams in section
