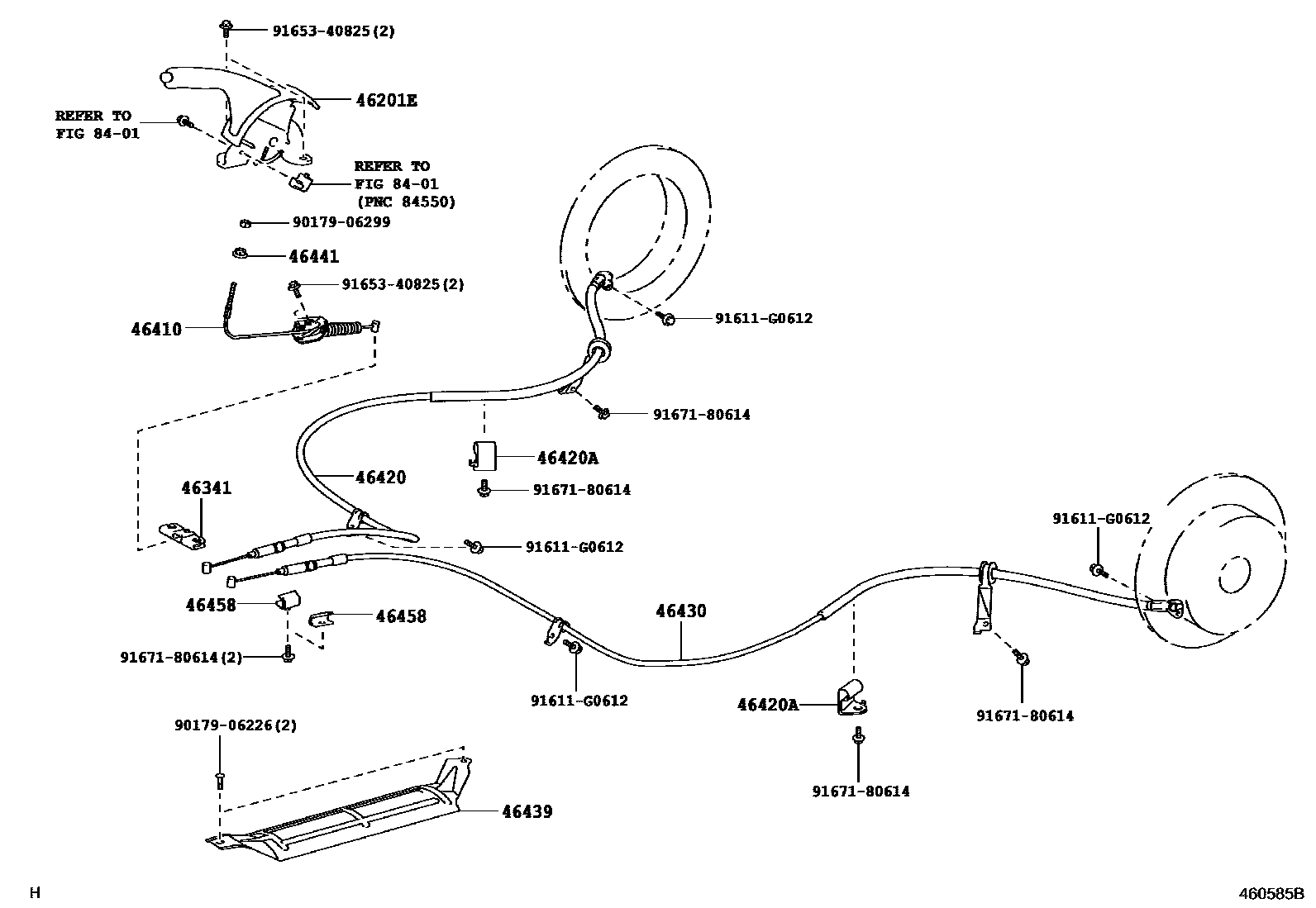

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-21050-B0iANT10200405-201007

DK.GRAY,TRIM1#

46341EQUALIZER, PARKING BRAKE

main46341-12020iANT10200405

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-21030iANT10200405

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-21110iANT10200405-201007

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01C89×2iANT10200405

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-21110iANT10200405-201007

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46408-63010iANT10200405

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iANT10200405

46458RETAINER, CABLE

main46458-28010×2iANT10200405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906226

main90179-06226

9017906299

main90179-06299

91611G0612

main91611-G0612

9165340825

main91653-40825

9167180614

main91671-80614

15 parts on this diagram · 2 diagrams in section
