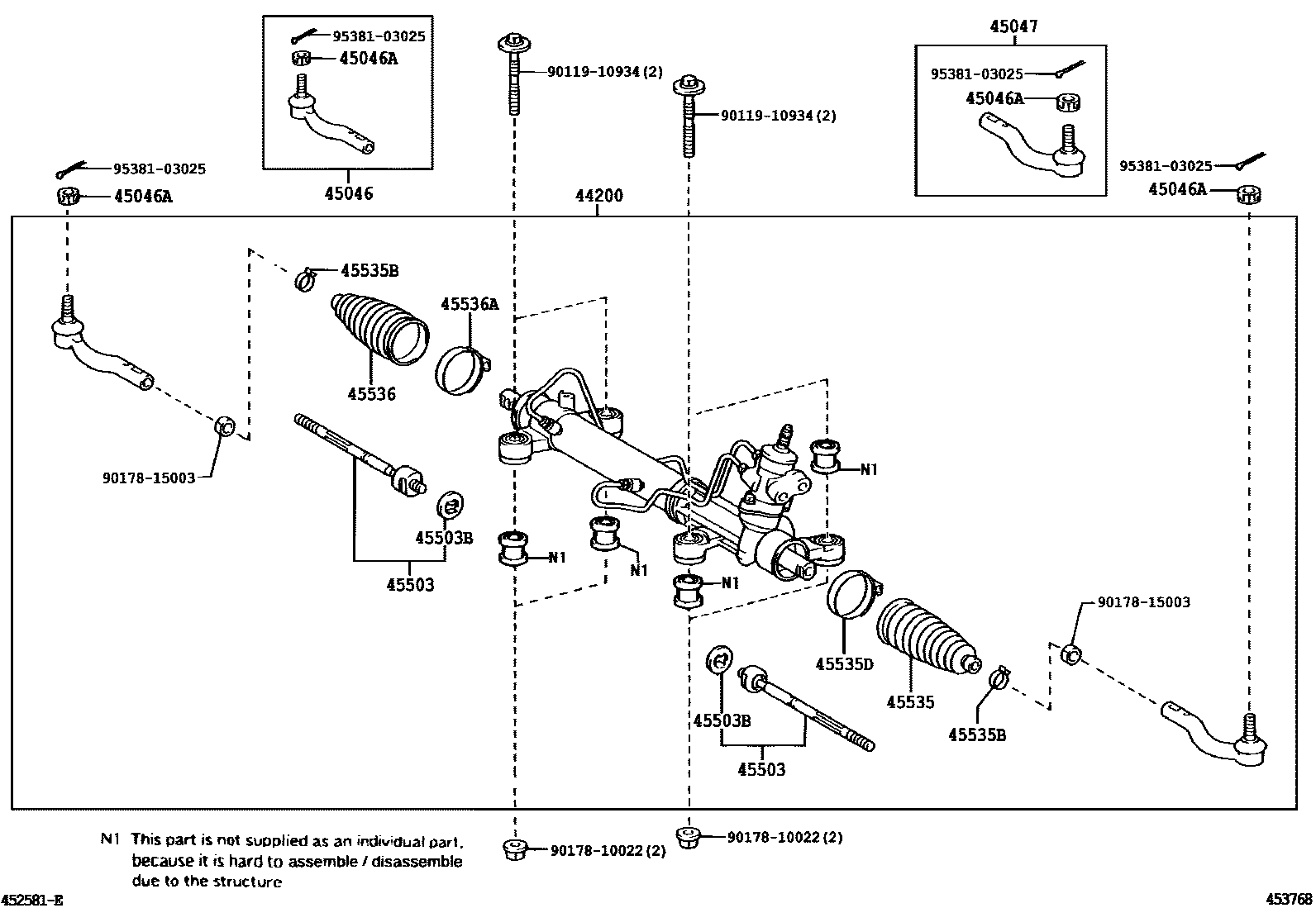

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-21120iANT10200405-200503

main44200-21121iANT10200504-200606

main44200-21122iANT10200607-200906

main44200-21123iANT10200907-201007

45046END SUB-ASSY, TIE ROD, RH

main45047-49025iANT10200405

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iANT10200405

45047END SUB-ASSY, TIE ROD, LH

main45046-49095iANT10200405

45503END SUB-ASSY, STEERING RACK

main45503-29825×2iANT10200405

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14009×2iANT10200405

OD=35.2

45535BOOT, STEERING RACK, NO.1

main45535-13010iANT10200405

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019×2iANT10200405

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iANT10200405

45536BOOT, STEERING RACK, NO.2

main45535-13010iANT10200405

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iANT10200405

9011910934

main90119-10934

9017810022

main90178-10022

9017815003

main90178-15003

9538103025

main95381-03025

15 parts on this diagram · 2 diagrams in section
