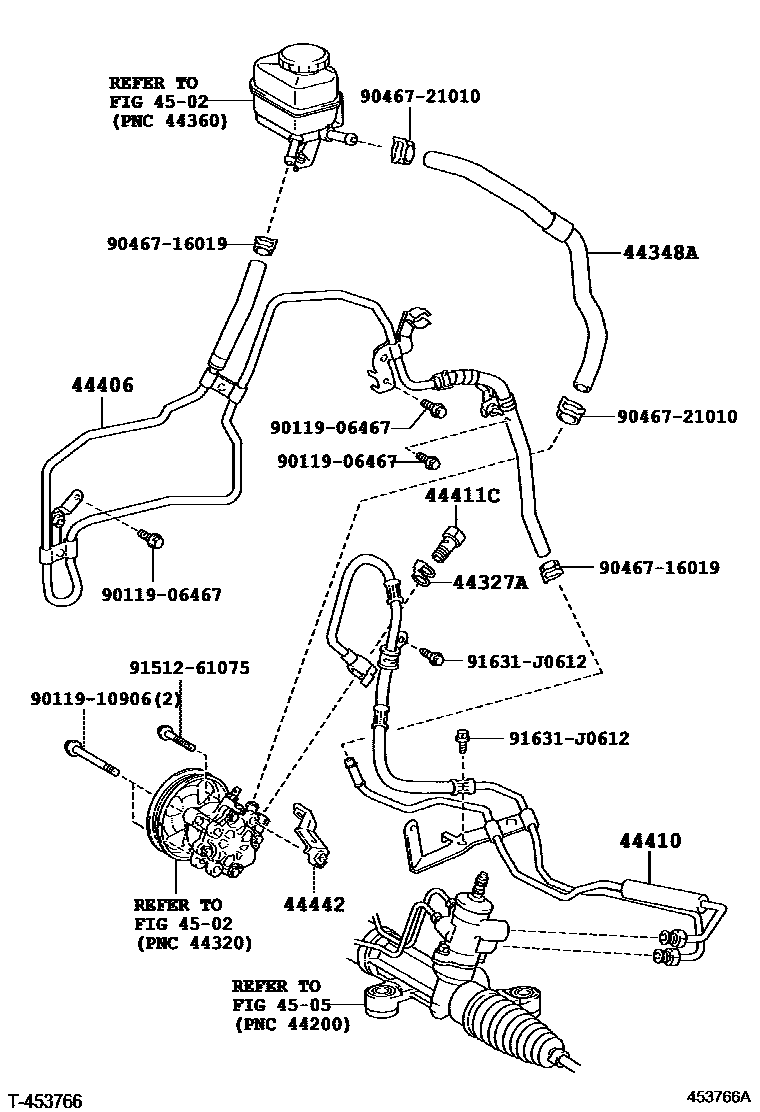

POWER STEERING TUBE

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iANT10200405-200506

main44327-30030iANT10200507-201007

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20640iANT10200405-201007

44406TUBE SUB-ASSY, RETURN

main44406-21110iANT10200405-201007

44410TUBE ASSY, PRESSURE FEED

main44410-21060iANT10200405

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iANT10200405

44442BRACKET, PUMP, REAR

main44442-20030iANT10200405

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9011906467

main90119-06467

9011910906

main90119-10906

9046716019

main90467-16019

9046721010

main90467-21010

9151261075

main91512-61075

91631J0612

main91631-J0612

14 parts on this diagram · 1 diagram in section
