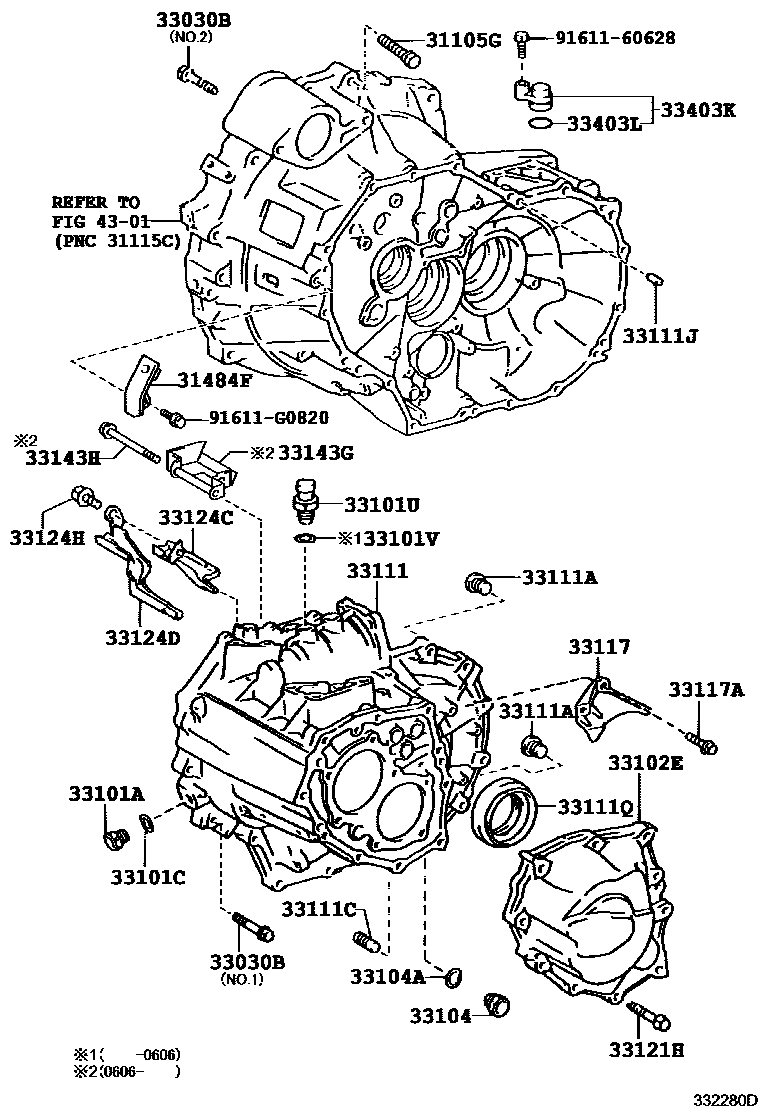

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-12147iANT10..5F200405-201007

*12-1.25PX74.5-25

main90119-12252×2iANT10..5F200405-201007

*12-1.25PX60-30

main91512-61060×2iANT10..5F200405-201007

*10-1.25PX60-30

main91512-61065iANT10..5F200405-201007

*10-1.25PX65-30

31484FBRACKET, CLUTCH TUBE

main31484-20320iANT10..5F200405

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×14iANT10..5F200911-201007

*8-1.25PX45-27.5,NO.1

main90105-08126×3iANT10..5F200911-201007

*8-1.25PX45-27.5,NO.2

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18033iANT10..5F200405

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iANT10..5F200405

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iANT10..5F200606

main90930-03148iANT10..5F200405-200606

33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)

main90430-18008iANT10..5F200405-200606

33102ECOVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12043iANT10..5F200405

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iANT10..5F200405

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iANT10..5F200405

33111CASE, MANUAL TRANSMISSION

main33101-20090iANT10..5F200405-200606

main33101-42040iANT10..5F200606

33111APLUG, MANUAL TRANSMISSION CASE

main90341-12004×2iANT10..5F200405-200503

33111CPLUG(FOR TRANSMISSION CASE)

main90340-10005iANT10..5F200405-200503

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iANT10..5F200405

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-50024iANT10..5F200405-200509

main90311-50035iANT10..5F200509-201010

sub90311-50047

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iANT10..5F200405

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main91641-H0820×2iANT10..5F200405

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90119-08630×10iANT10..5F200405

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-28050iANT10..5F200405

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-28060iANT10..5F200405

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830×2iANT10..5F200405

33143GBAFFLE, TRANSMISSION OIL

main33143-42010iANT10..5F200606

33143HBOLT(FOR TRANSMISSION OIL BAFFLE)

main90119-08439iANT10..5F200606

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-20230iANT10..5F200405

33403LRING, O

main96711-24018iANT10..5F200405

4301

9161160628

main91611-60628

91611G0820

main91611-G0820

28 parts on this diagram · 1 diagram in section
