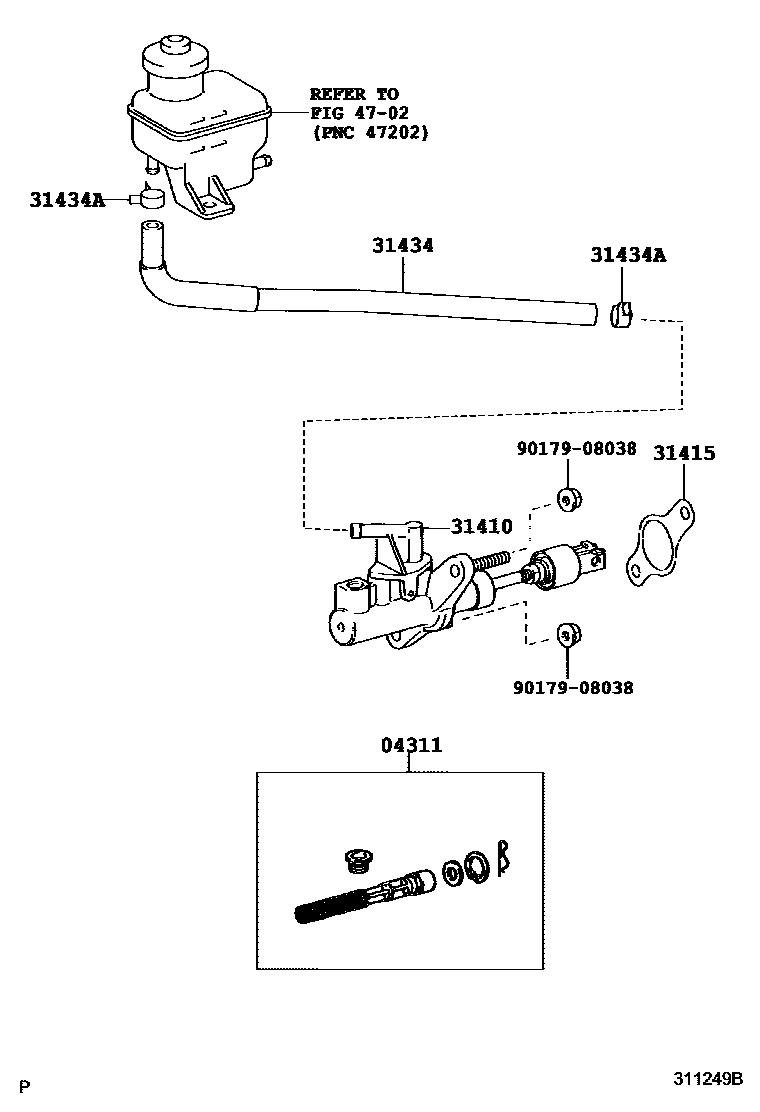

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iANT10..5F200405-201007

31410CYLINDER ASSY, CLUTCH MASTER

main31420-20070iANT10..5F200405-201007

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010iANT10..5F200405

31434TUBE, CLUTCH RESERVOIR

main31434-21010iANT10..5F200405-201007

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41500×2iANT10..5F200405-201007

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017908038

main90179-08038

7 parts on this diagram · 1 diagram in section
