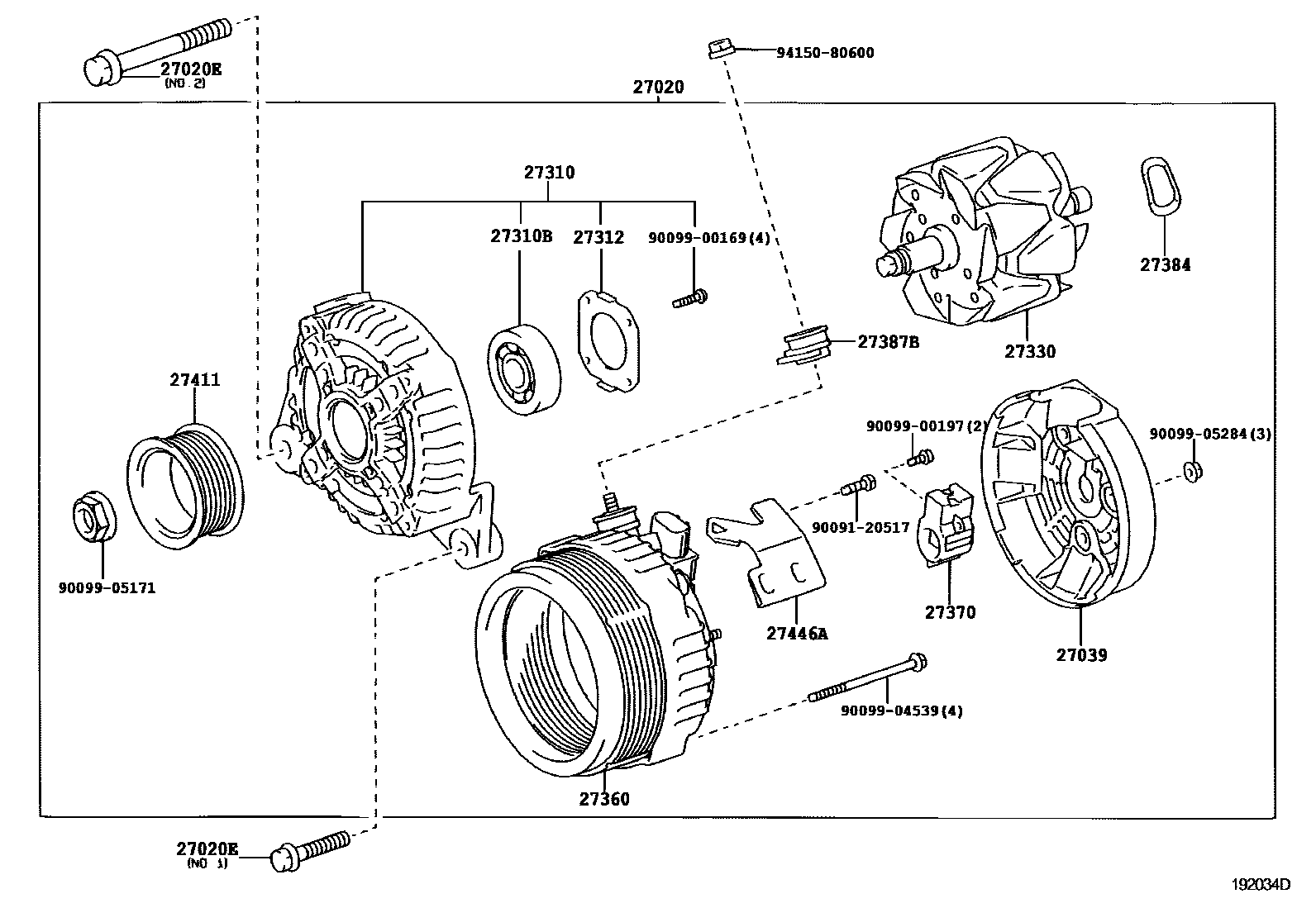

ALTERNATOR

27020ALTERNATOR ASSY

main27060-28270i2AZFE..ANT10200405-200605

12V 100A

sub27060-28260

main27060-28350i2AZFE..ANT10200605

12V 100A

27020EBOLT(FOR ALTERNATOR)

main91511-J0840i2AZFE..ANT10200405-200605

NO.1

main91512-81085i2AZFE..ANT10200405

NO.2

main91551-80840i2AZFE..ANT10200605

NO.1

27039COVER, ALTERNATOR REAR END

main27039-27060i2AZFE..ANT10200405-200906

main27039-31390i2AZFE..ANT10200906

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-28120i2AZFE..ANT10200405

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10142i2AZFE..ANT10200405-200611

sub90099-10223

main90099-10223i2AZFE..ANT10200612

27312PLATE, RETAINER

main27312-72100i2AZFE..ANT10200405

27330ROTOR ASSY, ALTERNATOR

main27330-30070i2AZFE..ANT10200405

27360COIL ASSY, ALTERNATOR

main27360-28210i2AZFE..ANT10200405-200605

sub27360-28200

main27360-28280i2AZFE..ANT10200605

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-58460i2AZFE..ANT10200405

27384WASHER

main27384-50030i2AZFE..ANT10200605

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2AZFE..ANT10200405

27411PULLEY, ALTERNATOR

main27411-28060i2AZFE..ANT10200405

27446ACLAMP

main27446-28120i2AZFE..ANT10200405

9009120517

main90091-20517

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905171

main90099-05171

9009905284

main90099-05284

9415080600

main94150-80600

20 parts on this diagram · 1 diagram in section
