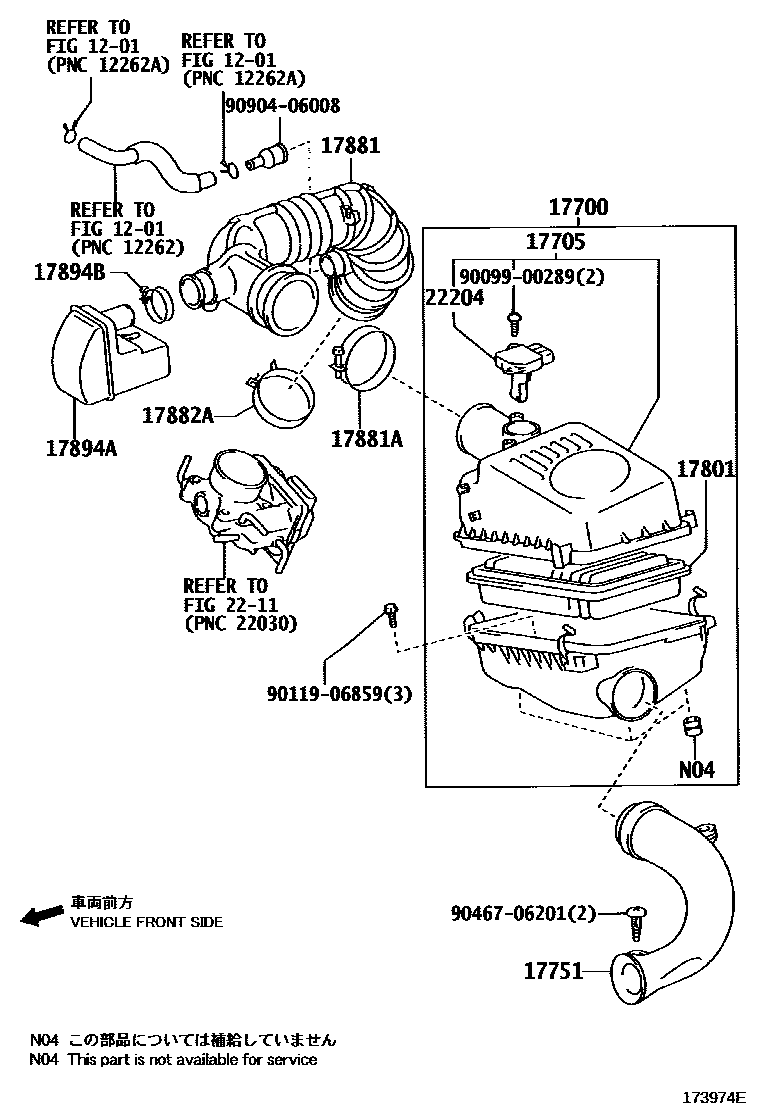

AIR CLEANER

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-28250i2AZFE..ANT10200405-200605

main17700-28330i2AZFE..ANT10200605-200702

main17700-28331i2AZFE..ANT10200703

17705CAP SUB-ASSY, AIR CLEANER

main17705-28190i2AZFE..ANT10200405-200605

main17705-28280i2AZFE..ANT10200605-200702

main17705-28281i2AZFE..ANT10200703

17751INLET, AIR CLEANER, NO.1

main17751-28050i2AZFE..ANT10200405

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i2AZFE..ANT10200405-200604

17881HOSE, AIR CLEANER, NO.1

main17881-28220i2AZFE..ANT10200405

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i2AZFE..ANT10200405

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2AZFE..ANT10200405

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28090i2AZFE..ANT10200405

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10500i2AZFE..ANT10200405

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-21010i2AZFE..ANT10200405-200605

main22204-31010i2AZFE..ANT10200605-200702

main22204-31020i2AZFE..ANT10200703

9009900289

main90099-00289

9011906859

main90119-06859

9046706201

main90467-06201

9090406008

main90904-06008

16 parts on this diagram · 1 diagram in section
