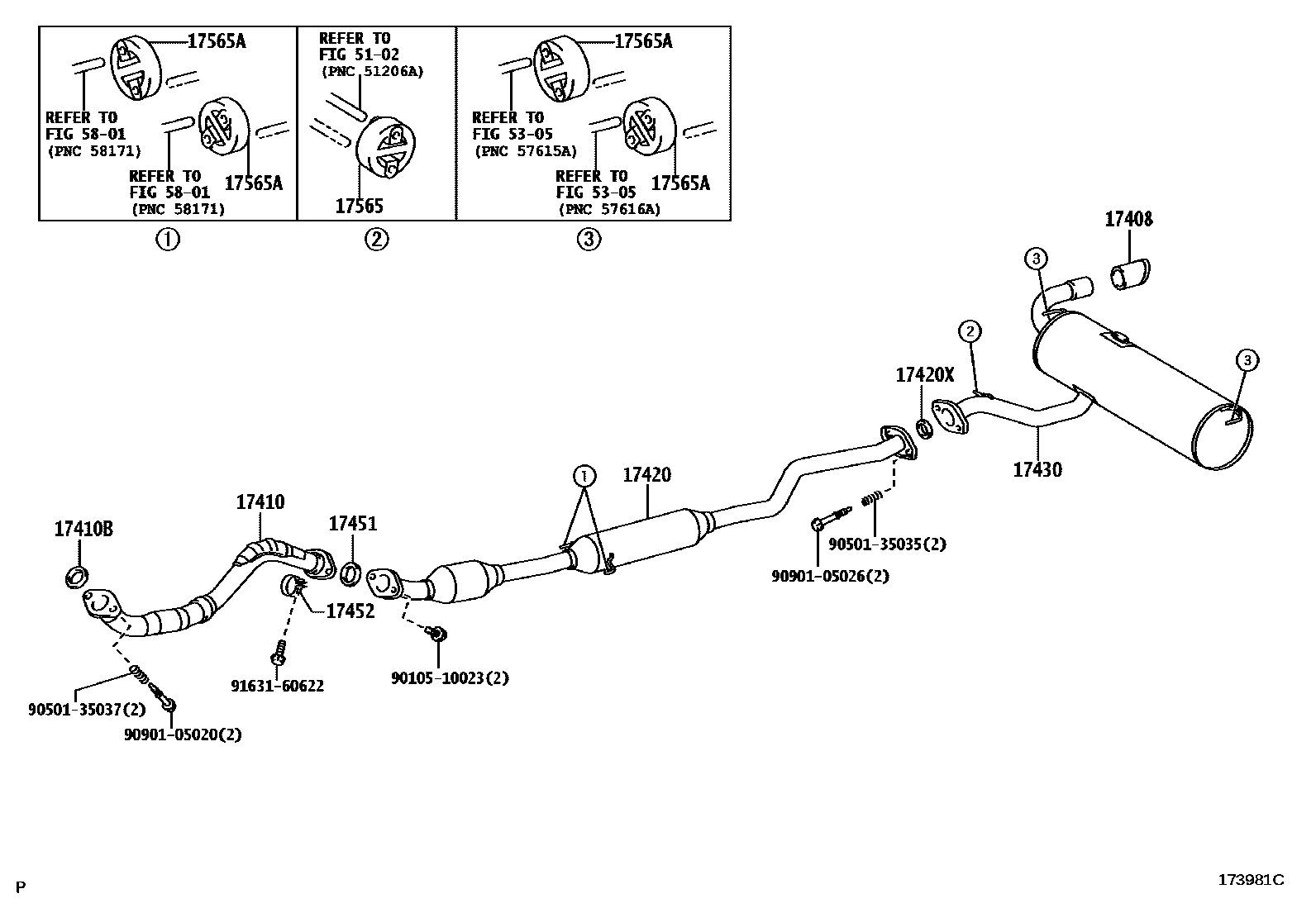

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-46020i2AZFE..ANT10200405

17410PIPE ASSY, EXHAUST, FRONT

main17410-28500i2AZFE..ANT10200405-200605

main17410-28501i2AZFE..ANT10200605

17410BGASKET, EXHAUST PIPE

main17451-28060i2AZFE..ANT10200605

main17451-74040i2AZFE..ANT10200405-200605

17420PIPE ASSY, EXHAUST, CENTER

main17420-28520i2AZFE..ANT10200405

17420XGASKET, EXHAUST PIPE, CENTER

main17451-28020i2AZFE..ANT10200405-200707

main17451-28021i2AZFE..ANT10200708-201007

17430PIPE ASSY, EXHAUST, TAIL

main17430-28610i2AZFE..ANT10200405

17451GASKET, EXHAUST PIPE

main90917-06078i2AZFE..ANT10200405

17452CLAMP, EXHAUST PIPE

main17452-0H010i2AZFE..ANT10200405

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×3i2AZFE..ANT10200405

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22030×2i2AZFE..ANT10200405

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010510023

main90105-10023

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9163160622

main91631-60622

19 parts on this diagram · 1 diagram in section
