VENTILATION HOSE

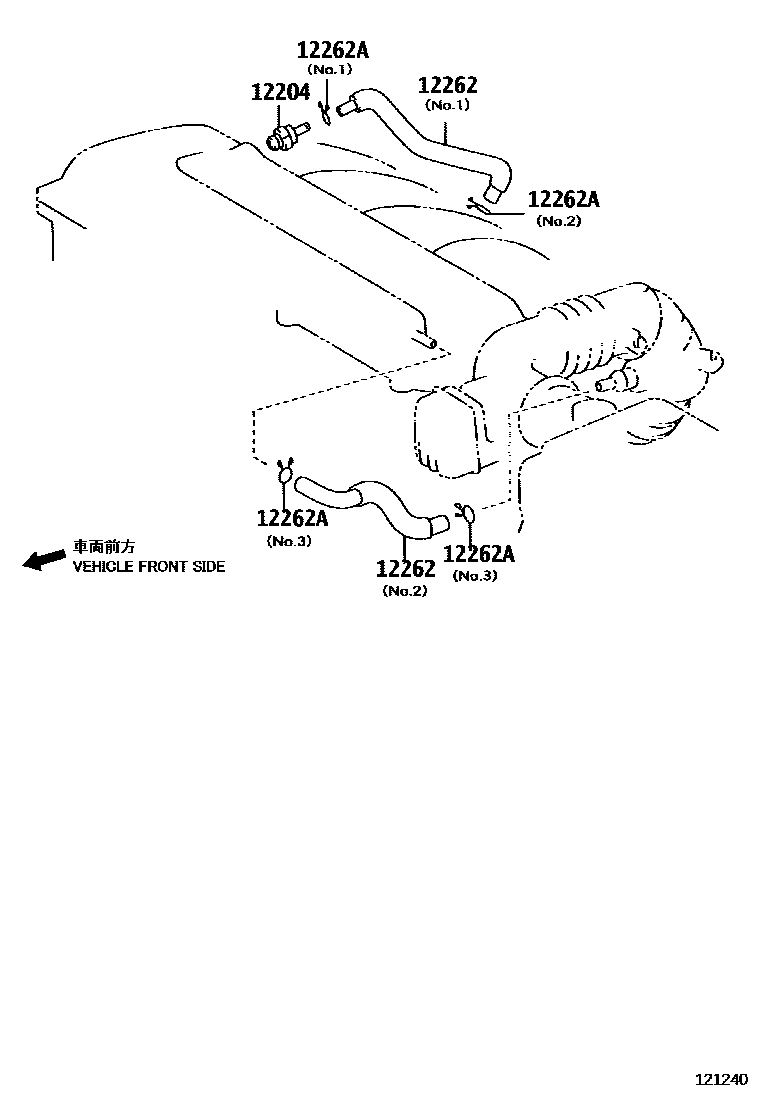

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-28020i200405-200605
main12204-28030i200605
12262HOSE, VENTILATION, NO.2
main12262-28021i200405
NO.1
main12262-28080i200405
NO.2
12262ACLIP(FOR VENTILATION HOSE NO.2)
main90467-13103i200405
NO.1
main90467-16035i200405
NO.2
main90467-19003×2i200405
NO.3

3 parts on this diagram · 1 diagram in section
