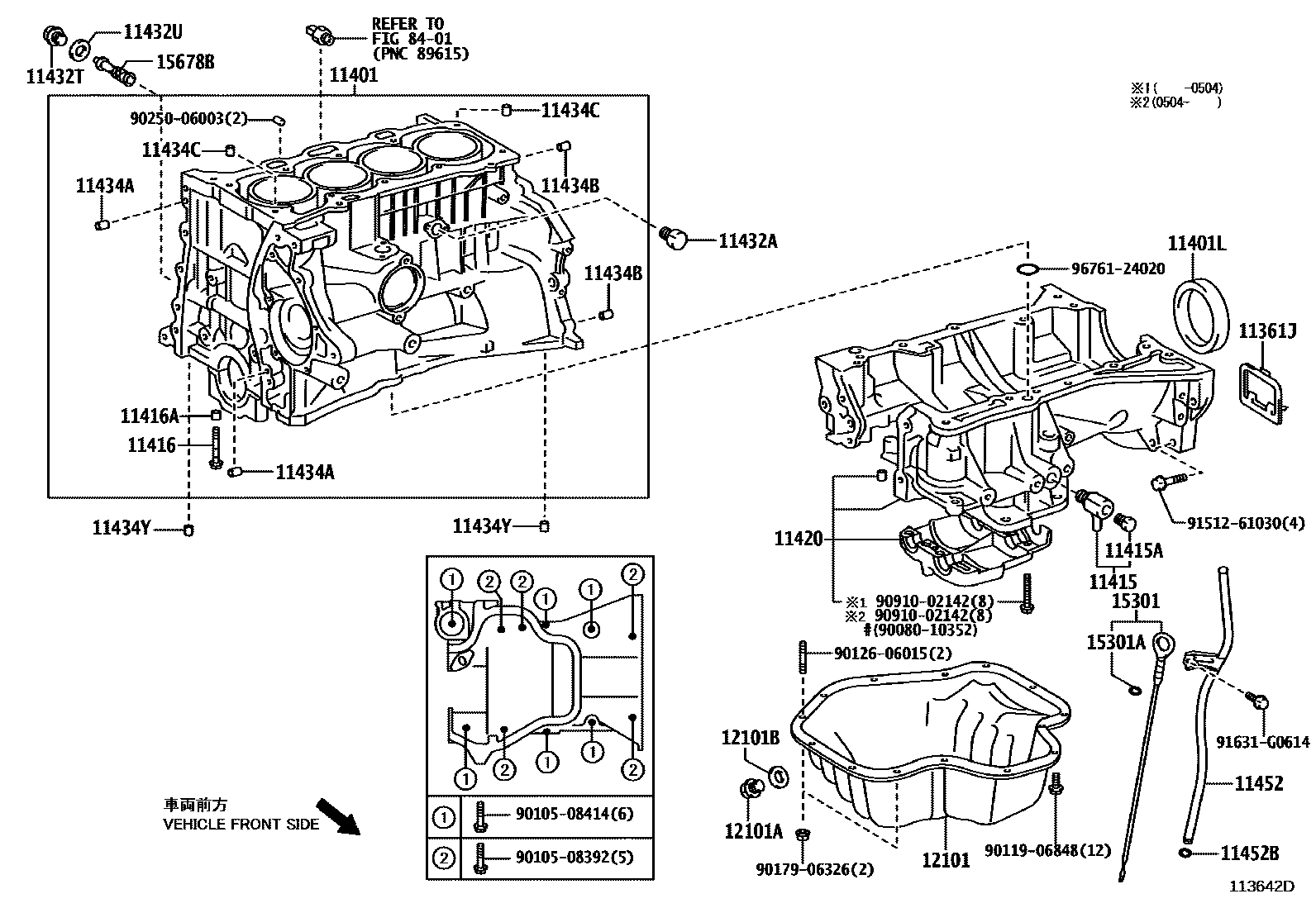

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11401BLOCK SUB-ASSY, CYLINDER
11401LSEAL, ENGINE REAR OIL
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11420CRANKCASE ASSY, STIFFENING
(L)
(L)
(J)
(J)
11432APLUG, W/HEAD TAPER SCREW, NO.1
11432TPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
11432UGASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=14
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
15301GAGE SUB-ASSY, OIL LEVEL
15301ARING, O(FOR OIL LEVEL GAGE)
15678BFILTER, OIL CONTROL VALVE
8401SWITCH & RELAY & COMPUTER
9008010352
main90080-10352
9010508392
main90105-08392
9010508414
main90105-08414
9011906848
main90119-06848
9012606015
main90126-06015
9017906326
main90179-06326
9025006003
main90250-06003
9091002142
main90910-02142
9151261030
main91512-61030
91631G0614
main91631-G0614
9676124020
main96761-24020
35 parts on this diagram · 2 diagrams in section
