ENGINE OVERHAUL GASKET KIT

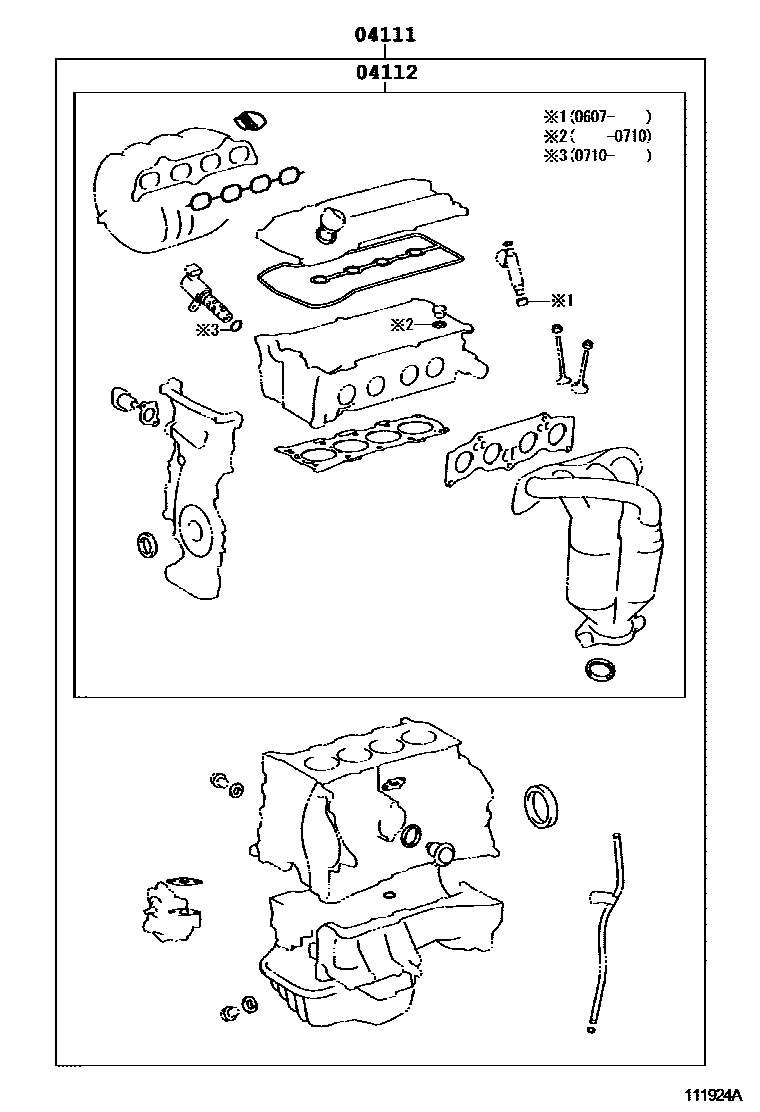

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-28250i200405-200508

main04111-28251i200508-200605

main04111-28860i200605-200607

main04111-28861i200607-200710

main04111-28863i200710-200904

main04111-28864i200904

04112GASKET KIT, ENGINE VALVE GRIND

main04112-28250i200405-200508

main04112-28251i200508-200605

main04112-28710i200605-200607

main04112-28711i200607-200710

main04112-28770i200710-200904

main04112-28771i200904

2 parts on this diagram · 1 diagram in section
