WIRING & CLAMP

0001 1ENGINE ROOM 1/4 0002 1ENGINE ROOM 2/4 0003 1ENGINE ROOM 3/4 0004 1ENGINE ROOM 4/4 0005 1ENGINE 1/3 0006 1ENGINE 2/3 0007 1ENGINE 3/3 0008 1STARTER 0009 1TRANSMISSION 0010 1INSTRUMENT PANEL 0011 1DOOR 0012 1ROOF 0013 1FLOOR 0014 1LUGGAGE 0015 1AIR BAG 0016 1CABLE BOND 0017 1CONNECTOR

1903ALTERNATOR

→ Go to FIG 19-03

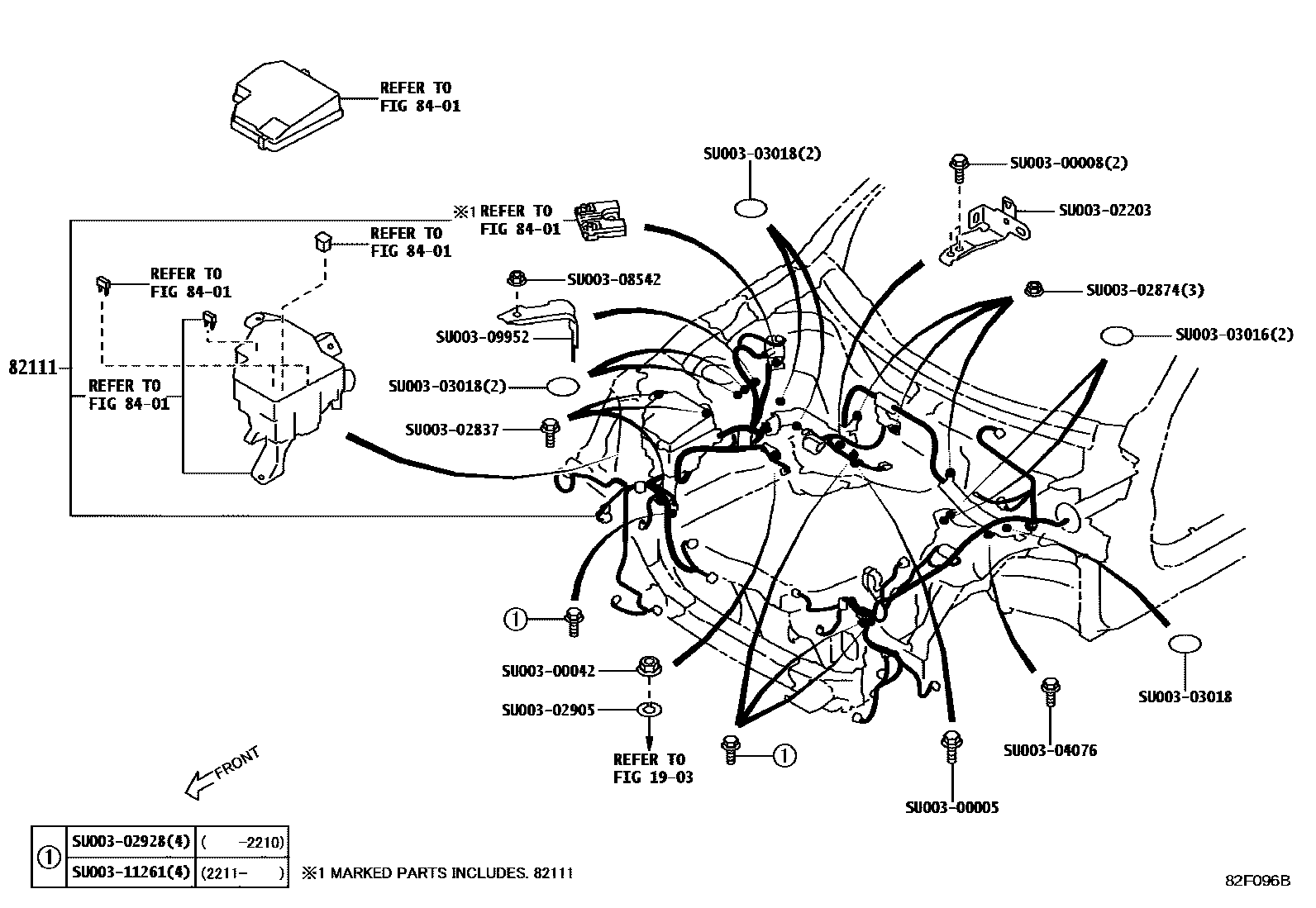

82111WIRE, ENGINE ROOM MAIN

mainSU00309976iZN8..6FC..(BASE,HIGH)..A202110-202210

mainSU00311310iZN8..6FC..(BASE,HIGH)..B202210-202312

mainSU00309971iZN8..6F..B202206-202210

DESTINATION CODE=C0

mainSU00309972iZN8..(BASE2,HIGH2)..A202110-202210

DESTINATION CODE=C0

mainSU00309973iZN8..6F..B202206-202210

DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00309974iZN8..(BASE2,HIGH2)..A202110-202210

DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00309975iZN8..6F..A202110-202210

DESTINATION CODE=C6

mainSU00311279iZN8..6F..B202210-202312

DESTINATION CODE=C0

mainSU00311280iZN8..6FC..(BASE2,HIGH2,ORA)..B202210-202312

DESTINATION CODE=C0

mainSU00311281iZN8..6F..B202210-202312

DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00311282iZN8..6FC..(BASE2,HIGH2,ORA)..B202210-202312

DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00311309iZN8..6F..(BASE,HIGH)..B202210-202312

DESTINATION CODE=C6

mainSU00311762iZN8..6F..C202312

DESTINATION CODE=C0

mainSU00311763iZN8..6FC..C202312

DESTINATION CODE=C0

mainSU00311764iZN8..6F..(BASE,HIGH)..C202312

DESTINATION CODE=C6

mainSU00311765iZN8..6F..C202312

DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00311766iZN8..6FC..C202312

DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00312114iZN8..6F..D202409

DESTINATION CODE=C0

mainSU00312115iZN8..6FC..D202409

DESTINATION CODE=C0

mainSU00312116iZN8..6F..(BASE,HIGH)..D202409

DESTINATION CODE=C6

mainSU00312117iZN8..6F..D202409

DESTINATION CODE=U4; DESTINATION CODE=U7

mainSU00312118iZN8..6FC..D202409

DESTINATION CODE=U4; DESTINATION CODE=U7

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

SU00300005

mainSU003-00005

SU00300008

mainSU003-00008

SU00300042

mainSU003-00042

SU00302203

mainSU003-02203

SU00302837

mainSU003-02837

SU00302874

mainSU003-02874

SU00302905

mainSU003-02905

SU00302928

mainSU003-02928

SU00303016

mainSU003-03016

SU00303018

mainSU003-03018

SU00304076

mainSU003-04076

SU00308542

mainSU003-08542

SU00309952

mainSU003-09952

SU00311261

mainSU003-11261

17 parts on this diagram · 17 diagrams in section
