INTERIOR LAMP

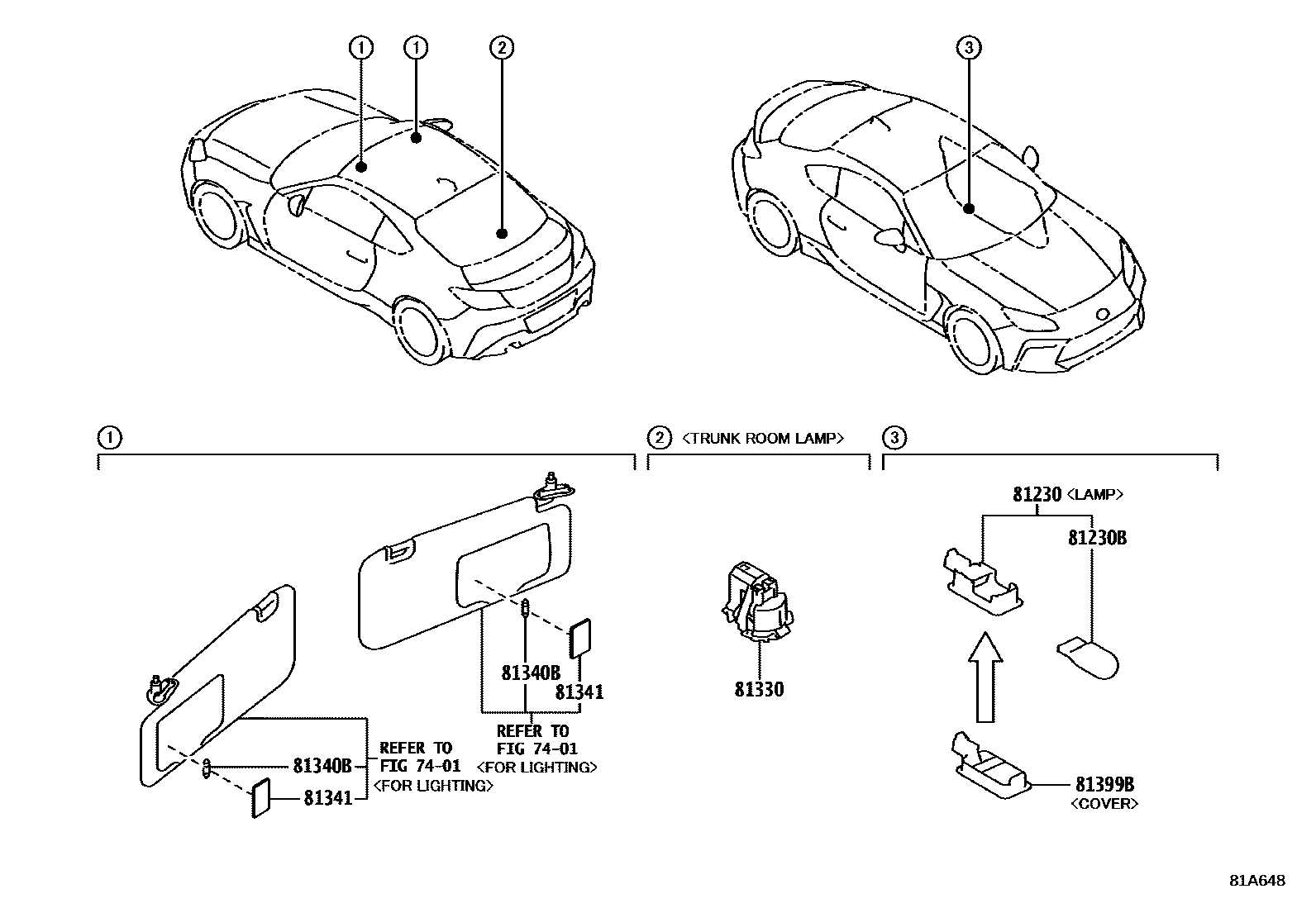

Parts diagram

7401ARMREST & VISOR

→ Go to FIG 74-01

81230LAMP ASSY, COURTESY

mainSU00308575i202110-202312

81230BBULB(FOR COURTESY LAMP)

mainSU00302129i202110-202312

12V 5W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

mainSU00308501i202110-202312

mainSU00311871i202409

81340BBULB (FOR VANITY LAMP)

mainSU00305707i202110-202312

12V 2W

81341LENS, VANITY LAMP

mainSU00303185i202110-202312

81399BCOVER, LENS

mainSU00308576i202110-202312

7 parts on this diagram · 3 diagrams in section
