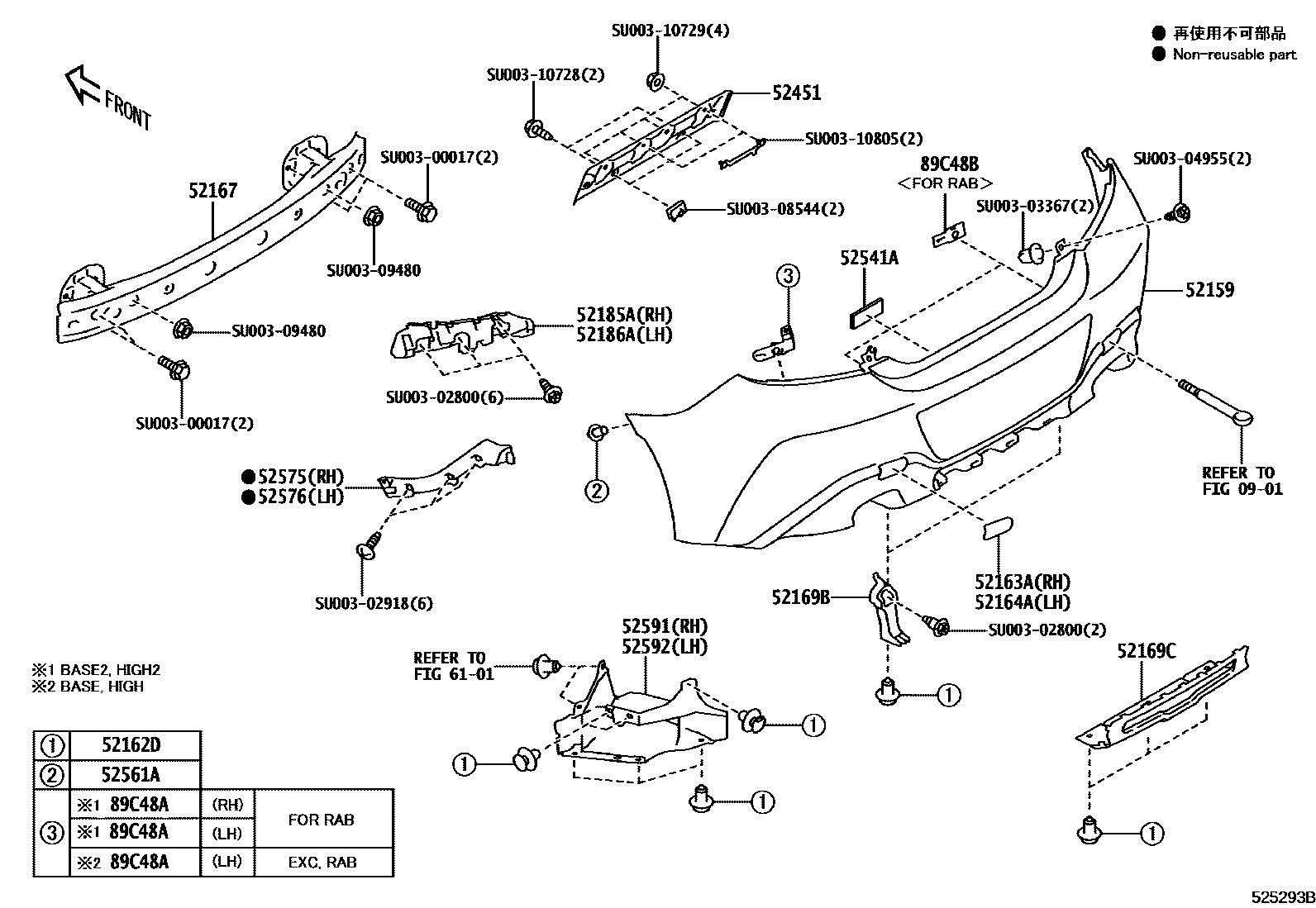

REAR BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

52159COVER, REAR BUMPER

mainSU00309219iZN8..BASE,HIGH202110-202204

PAINT REQ

mainSU00309886iZN8..BASE2,HIGH2202110-202204

PAINT REQ

mainSU00311049iZN8..(BASE2,HIGH2)..A202205-202208

PAINT REQ

mainSU00311093iZN8..(BASE,HIGH)..A202205-202208

PAINT REQ

mainSU00311206iZN8..6FC..(BASE2,HIGH2,ORA)..B202208-202312

PAINT REQ

mainSU00311248iZN8..6F..C202312

PAINT REQ

52162DPIECE, REAR BUMPER

mainSU00302984×17iZN8202110-202206

52163APLATE, REAR BUMPER, RH

mainSU00309271iZN8202110-202206

52164APLATE, REAR BUMPER, LH

mainSU00309272iZN8202110-202206

52167REINFORCEMENT, REAR BUMPER

mainSU00308593iZN8..B202206-202312

52169BBRACKET, REAR BUMPER, CENTER

mainSU00309231×2iZN8202110-202206

52169CCOVER, REAR BUMPER, LOWER

mainSU00309273iZN8202110-202206

NO PAINT REQ.

52185ABRACKET, REAR BUMPER SIDE, RH

mainSU00309227iZN8202110-202201

mainSU00310932iZN8202201-202206

52186ABRACKET, REAR BUMPER SIDE, LH

mainSU00309228iZN8202110-202201

mainSU00310933iZN8202201-202206

52451GUARD, REAR BUMPER

mainSU00310806iZN8202110-202206

52541APROTECTOR, REAR BUMPER

mainSU00304202iZN8..B202206-202312

52561ACLIP(FOR REAR BUMPER RETAINER)

mainSU00302988×2iZN8..B202206-202212

mainSU00311351×2iZN8..B202212-202308

mainSU00311774×2iZN8..B202308-202312

52575RETAINER, REAR BUMPER SIDE, RH

mainSU00309229iZN8202110-202206

52576RETAINER, REAR BUMPER SIDE, LH

mainSU00309230iZN8202110-202206

52591SEAL, REAR BUMPER SIDE, RH

mainSU00309269iZN8202110-202206

52592SEAL, REAR BUMPER SIDE, LH

mainSU00309270iZN8202110-202206

6101SIDE MEMBER

→ Go to FIG 61-01

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

mainSU00309240iZN8..(BASE2,HIGH2)..B202206-202312

BRIGHT BLUE,DAR,RH

mainSU00309241iZN8..BASE2,HIGH2202110-202206

SAPPHIRE BLUE PEARL,WCH,RH

mainSU00309242iZN8..BASE2,HIGH2202110-202206

MAGNETITE GRAY M,P8Y,RH

mainSU00309243iZN8..(BASE2,HIGH2)..B202206-202312

ICE SILVER METALLIC,G1U,RH

mainSU00309244iZN8..6FC..(BASE,HIGH)..D202409

IGNITION RED,DCK,RH

mainSU00309245iZN8..(BASE2,HIGH2)..B202206-202312

CRYSTAL BLACK SILICA,D4S,RH

mainSU00309246iZN8..BASE2,HIGH2202110-202206

CRYSTAL WHITE PEARL,K1X,RH

mainSU00309247iZN8..BASE2,HIGH2202110-202206

BRIGHT BLUE,DAR,LH

mainSU00309248iZN8..6FC..(BASE,HIGH)..C202312

SAPPHIRE BLUE PEARL,WCH,LH

mainSU00309249iZN8..BASE2,HIGH2202110-202206

MAGNETITE GRAY M,P8Y,LH

mainSU00309250iZN8..6FC..(BASE,HIGH)..C202312

ICE SILVER METALLIC,G1U,LH

mainSU00309251iZN8..(BASE2,HIGH2)..B202206-202312

IGNITION RED,DCK,LH

mainSU00309252iZN8..BASE2,HIGH2202110-202206

CRYSTAL BLACK SILICA,D4S,LH

mainSU00309253iZN8..6FC..C202312

CRYSTAL WHITE PEARL,K1X,LH

mainSU00309254iZN8..6F..D202409

mainSU00311095iZN8..6FC..ORA202206-202312

SOLAR ORANGE PEARL,RH

mainSU00311096iZN8..6FC..ORA202206-202312

SOLAR ORANGE PEARL,LH

mainSU00311493iZN8..6FC..(BASE,HIGH)..C202312

OASIS BLUE,XDA,RH

mainSU00311494iZN8..6FC..(BASE,HIGH)..C202312

OASIS BLUE,XDA,LH

mainSU00312006iZN8..6FC..D202409

MOSS GREEN,DMG,RH

mainSU00312007iZN8..6FC..D202409

MOSS GREEN,DMG,LH

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

mainSU00309233×2iZN8..(BASE2,HIGH2)..B202206-202312

BRIGHT BLUE,DAR

mainSU00309234×2iZN8..6FC..(BASE,HIGH)..C202312

SAPPHIRE BLUE PEARL,WCH

mainSU00309235×2iZN8..6FC..(BASE,HIGH)..C202312

MAGNETITE GRAY M,P8Y

mainSU00309236×2iZN8..(BASE2,HIGH2)..B202206-202312

ICE SILVER METALLIC,G1U

mainSU00309237×2iZN8..(BASE2,HIGH2)..B202206-202312

IGNITION RED,DCK

mainSU00309238×2iZN8..(BASE2,HIGH2)..B202206-202312

CRYSTAL BLACK SILICA,D4S

mainSU00309239×2iZN8..(BASE2,HIGH2)..B202206-202312

CRYSTAL WHITE PEARL,K1X

mainSU00311094×2iZN8..6FC..ORA202206-202312

SOLAR ORANGE PEARL

mainSU00311492×2iZN8..6FC..(BASE,HIGH)..C202312

OASIS BLUE,XDA

mainSU00312005×2iZN8..6FC..D202409

MOSS GREEN,DMG

SU00300017

mainSU003-00017

SU00302800

mainSU003-02800

SU00302918

mainSU003-02918

SU00303367

mainSU003-03367

SU00304955

mainSU003-04955

SU00308544

mainSU003-08544

SU00309480

mainSU003-09480

SU00310728

mainSU003-10728

SU00310729

mainSU003-10729

SU00310805

mainSU003-10805

30 parts on this diagram · 1 diagram in section
