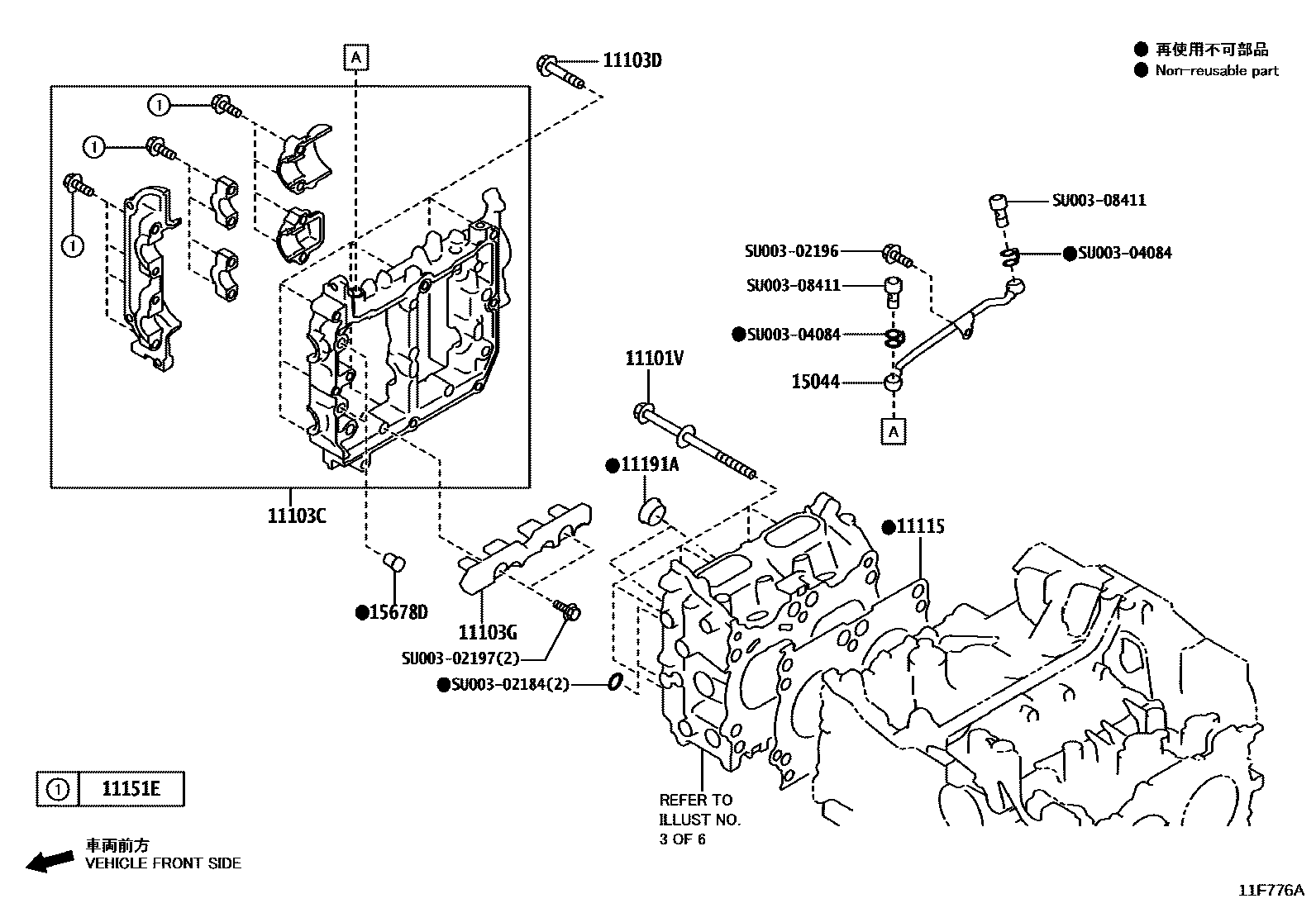

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11101HEAD SUB-ASSY, CYLINDER

mainSU00308991iFA24..ZN8202110-202206

11101VBOLT(FOR CYLINDER HEAD SET SUB)

mainSU00300117×12iFA24..ZN8202110-202206

11103CHOUSING SUB-ASSY, CAMSHAFT, RH

mainSU00309009iFA24..ZN8202110-202206

11103DBOLT(FOR CAMSHAFT HOUSING TO CYLINDER HEAD, RH)

mainSU00304841×9iFA24..ZN8202110-202206

11103GSPACER, OIL, RH

mainSU00306812iFA24..ZN8202110-202206

11115GASKET, CYLINDER HEAD

mainSU00308992iFA24..ZN8202110-202206

11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)

mainSU00304264×12iFA24..ZN8202110-202206

11191AGASKET(FOR SPARK PLUG TUBE)

mainSU00306775×2iFA24..ZN8202110-202206

mainSU00311034×2iFA24..ZN8..B202209-202312

mainSU00312030×2iFA24..ZN8..C202403

15044PIPE SUB-ASSY, CAMSHAFT OIL FEED

mainSU00309023iFA24..ZN8202110-202206

15678DFILTER, OIL CONTROL VALVE, RH

mainSU00300299×2iFA24..ZN8202110-202206

SU00302184

mainSU003-02184

SU00302196

mainSU003-02196

SU00302197

mainSU003-02197

SU00304084

mainSU003-04084

SU00308411

mainSU003-08411

15 parts on this diagram · 6 diagrams in section
