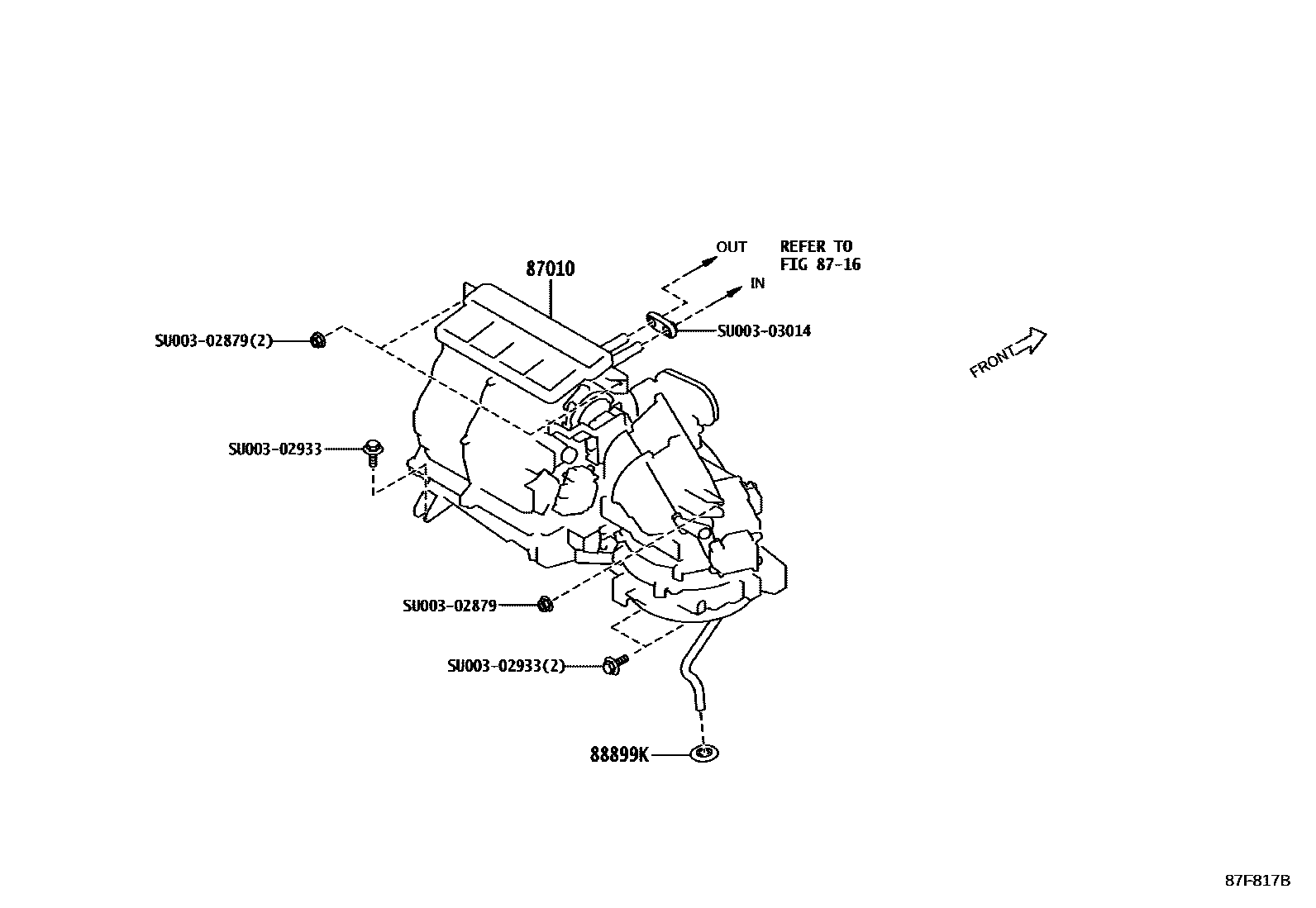

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1UNIT 0002 1RADIATOR(OUTER) 0003 1RADIATOR 0004 1BLOWER

87010UNIT ASSY, AIR CONDITIONER

mainSU00301999iZN6..STD201607-201707

mainSU00302001iZN6..HI,SPE201607-201707

mainSU00307633iZN6..STD201807-201907

mainSU00307635iZN6..HI,SPE201707-201711

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

88899KPLATE, COVER

mainSU00302085iZN6201607-201711

SU00302879

mainSU003-02879

SU00302933

mainSU003-02933

SU00303014

mainSU003-03014

6 parts on this diagram · 4 diagrams in section
