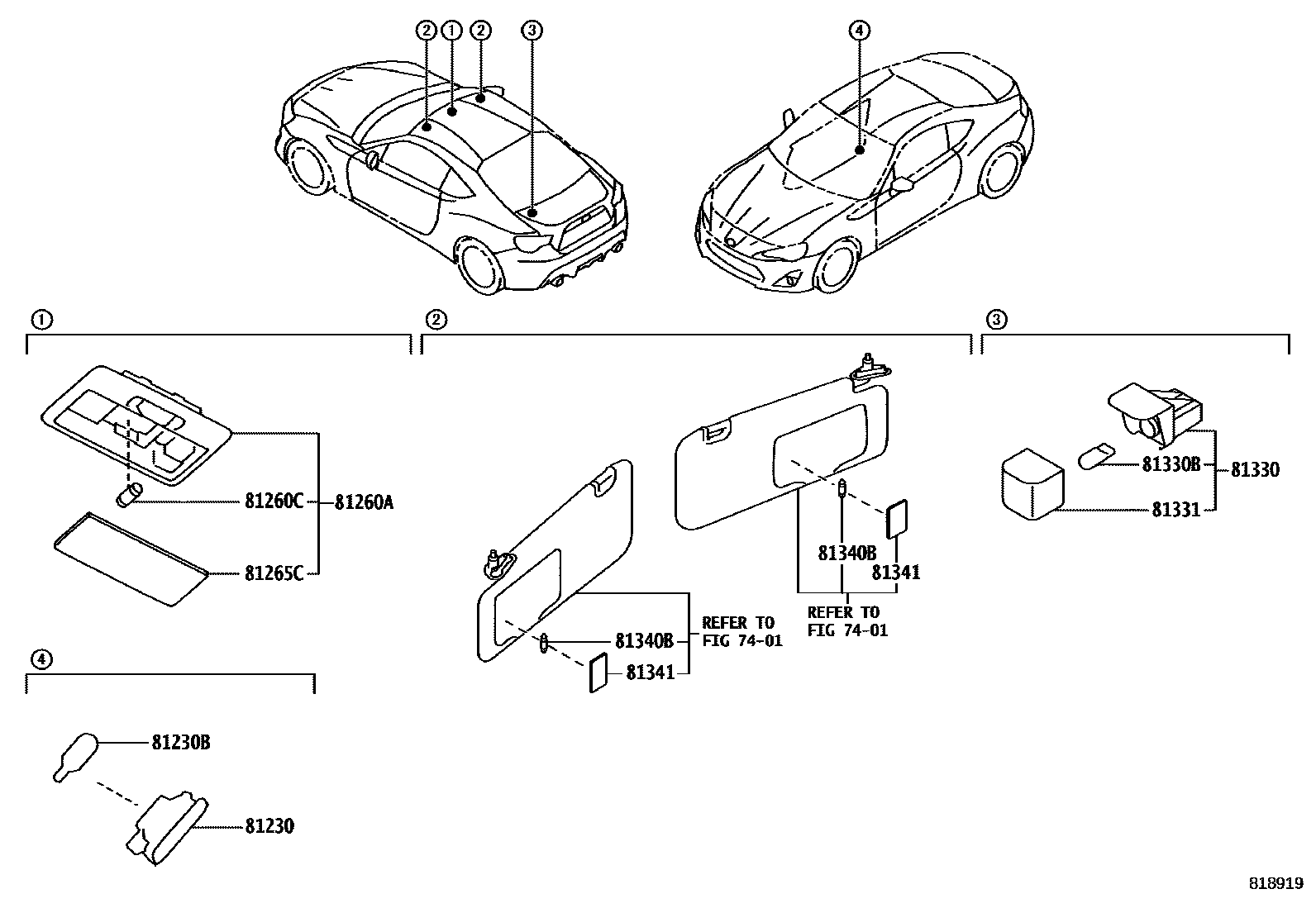

INTERIOR LAMP
7401ARMREST & VISOR
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81260ALAMP ASSY, MAP
BLACK
81260CBULB(FOR MAP LAMP)
12V 10W
81265CLENS, MAP LAMP, NO.1
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
12V 5W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340BBULB (FOR VANITY LAMP)
12V 2W
81341LENS, VANITY LAMP
11 parts on this diagram · 1 diagram in section
