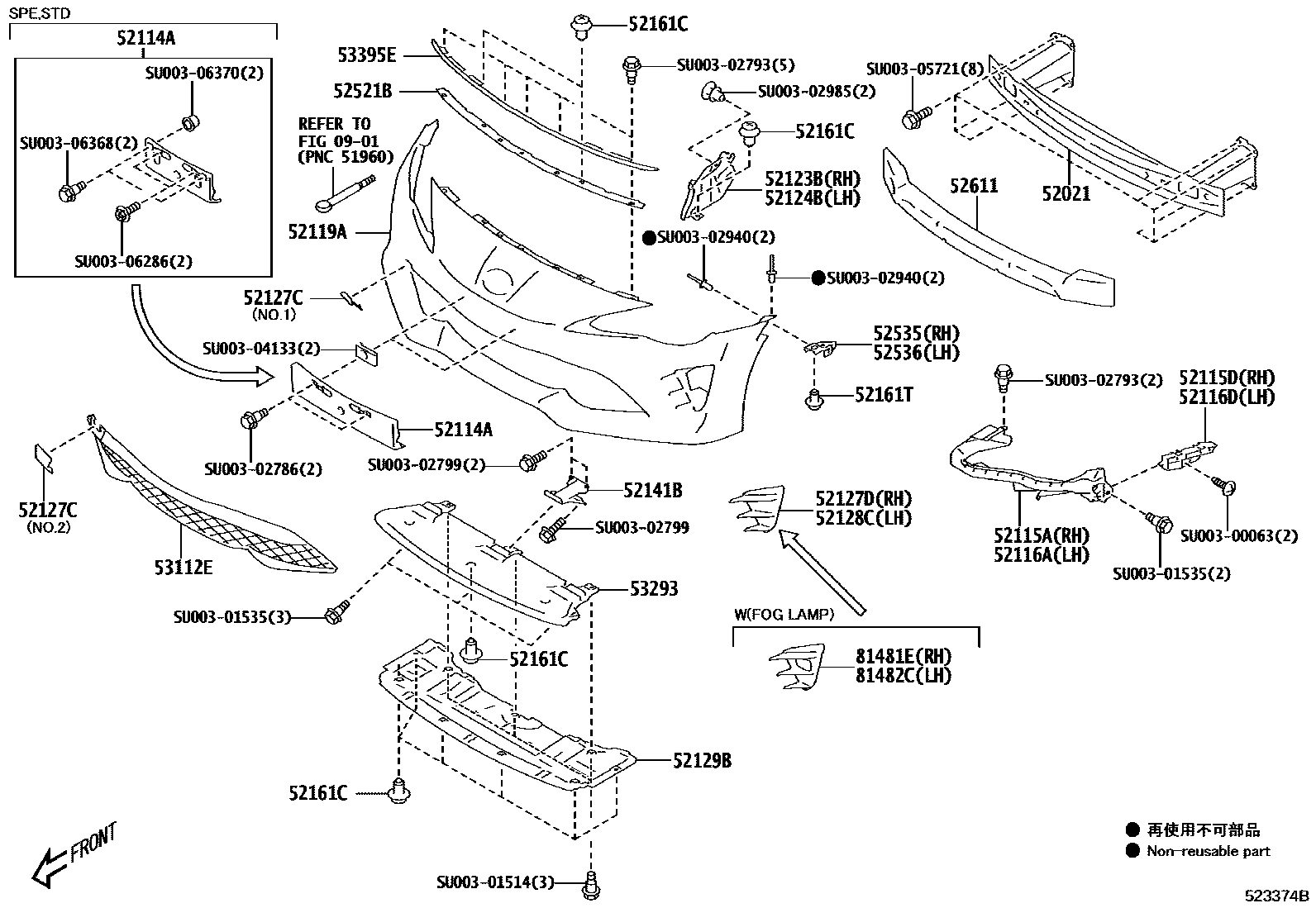

FRONT BUMPER & BUMPER STAY

0901

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

mainSU00301508iZN6201607-202012

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

mainSU00306857iZN6..HI1,SPE1201607-202012

mainSU00306858iZN6..HI2,SPE2,STD201607-202012

52115ASUPPORT, FRONT BUMPER SIDE, RH

mainSU00306837iZN6201607-201701

subSU003-07494

mainSU00307494iZN6201701-202012

52115DSUPPORT, FRONT BUMPER SIDE, NO.2 RH

mainSU00301498iZN6201607-202012

52116ASUPPORT, FRONT BUMPER SIDE, LH

mainSU00306838iZN6201607-201701

subSU003-07495

mainSU00307495iZN6201701-202012

52116DSUPPORT, FRONT BUMPER SIDE, NO.2 LH

mainSU00301499iZN6201607-202012

52119ACOVER, FRONT BUMPER

mainSU00306827iZN6..HI1,SPE1201607-202012

PAINT REQ.

mainSU00306828iZN6..HI2,SPE2,STD201607-202012

PAINT REQ.

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

mainSU00301537iZN6201607-202012

52124BPLATE, FRONT BUMPER REINFORCEMENT, LH

mainSU00301538iZN6201607-202012

52127CCOVER, FRONT BUMPER HOLE

mainSU00306845iZN6201607-201907

NO.2:REFER ILLUST.

mainSU00306849iZN6201908-202012

MATERIAL COLOR,D4S,DAR,G1U,K1X,K3X,M7Y,P8Y,NO.1:REFER ILLUST.

mainSU00306849iZN6201607-201711

MATERIAL COLOR,61K,D4S,G1U,H8R,K1X,K3X,M7Y,NBB,NO.1:REFER ILLUST.

mainSU00306849iZN6201711-201806

MATERIAL COLOR,61K,D4S,G1U,K1X,K3X,M7Y,PBA,NO.1:REFER ILLUST.

mainSU00306849iZN6201807-201907

MATERIAL COLOR,61K,D4S,DAR,G1U,K1X,K3X,M7Y,NO.1:REFER ILLUST.

52127DCOVER, FRONT BUMPER HOLE, RH

mainSU00306840iZN6..STD201607-202012

52128CCOVER, FRONT BUMPER HOLE, LH

mainSU00306841iZN6..STD201607-202012

52129BCOVER, FRONT BUMPER, LOWER

mainSU00304308iZN6201607-202012

52141BSTAY, FRONT BUMPER

mainSU00301511iZN6201607-202012

52161CPIECE, FRONT BUMPER

mainSU00302984iZN6201607-202012

52161TPIECE, FRONT BUMPER

mainSU00302974iZN6201607-202012

52521BRETAINER, FRONT BUMPER, UPPER

mainSU00305827iZN6201607-202012

52535RETAINER, FRONT BUMPER SIDE, RH

mainSU00301505iZN6201607-202012

52536RETAINER, FRONT BUMPER SIDE, LH

mainSU00301506iZN6201607-202012

52611ABSORBER, FRONT BUMPER ENERGY

mainSU00301495iZN6201607-202012

53112EGRILLE, RADIATOR, LOWER NO.1

mainSU00306844iZN6201607-202012

NO PAINT REQ.

53293BRACKET, FRONT BUMPER STAY

mainSU00301500iZN6201607-202012

53395ESEAL, HOOD TO FRONT END PANEL

mainSU00301534iZN6201607-202012

81481ECOVER, FOG LAMP, RH

mainSU00306842iZN6..HI,SPE201607-202012

81482CCOVER, FOG LAMP, LH

mainSU00306843iZN6..HI,SPE201607-202012

SU00300063

mainSU003-00063

SU00301514

mainSU003-01514

SU00301535

mainSU003-01535

SU00302786

mainSU003-02786

SU00302793

mainSU003-02793

SU00302799

mainSU003-02799

SU00302940

mainSU003-02940

SU00302985

mainSU003-02985

SU00304133

mainSU003-04133

SU00305721

mainSU003-05721

SU00306286

mainSU003-06286

SU00306368

mainSU003-06368

SU00306370

mainSU003-06370

39 parts on this diagram · 1 diagram in section
