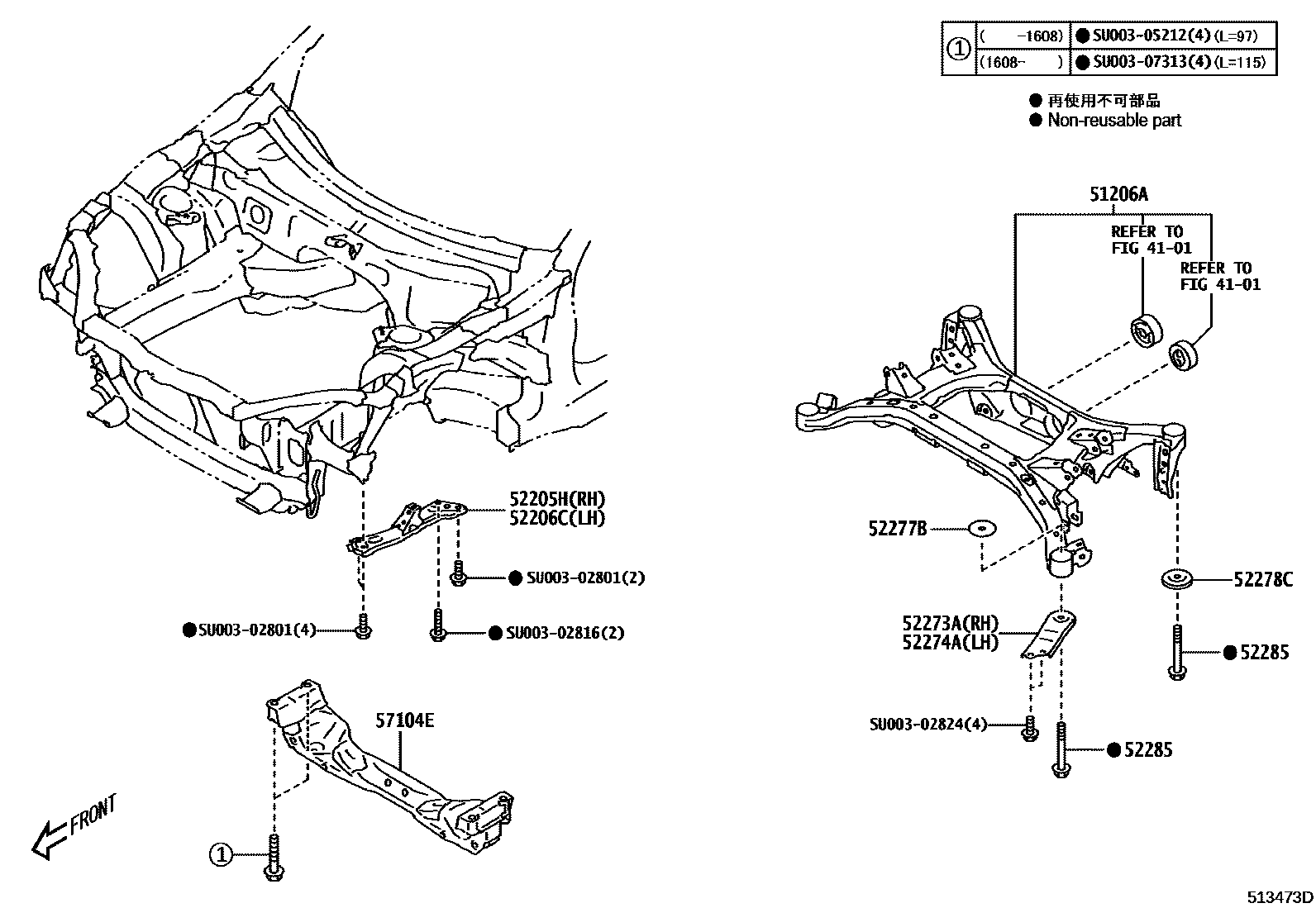

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

51206AMEMBER SUB-ASSY, REAR SUSPENSION

mainSU00300349iZN6..F201607-202012

52205HCUSHION SUB-ASSY, BODY MOUNTING, REAR RH

mainSU00301224iZN6201607-201704

mainSU00307499iZN6201705-202012

52206CCUSHION SUB-ASSY, BODY MOUNTING, REAR LH

mainSU00301225iZN6201607-201704

mainSU00307500iZN6201705-202012

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

mainSU00300350iZN6..F201607-202012

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

mainSU00300351iZN6201607-202012

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

mainSU00300353iZN6..F201607-202012

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

mainSU00300352iZN6..F201607-202012

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

mainSU00302807iZN6201607-202008

57104EMEMBER SUB-ASSY, FRONT CROSS

mainSU00300348iZN6201607-202012

SU00302801

mainSU003-02801

SU00302816

mainSU003-02816

SU00302824

mainSU003-02824

SU00305212

mainSU003-05212

SU00307313

mainSU003-07313

15 parts on this diagram · 4 diagrams in section
