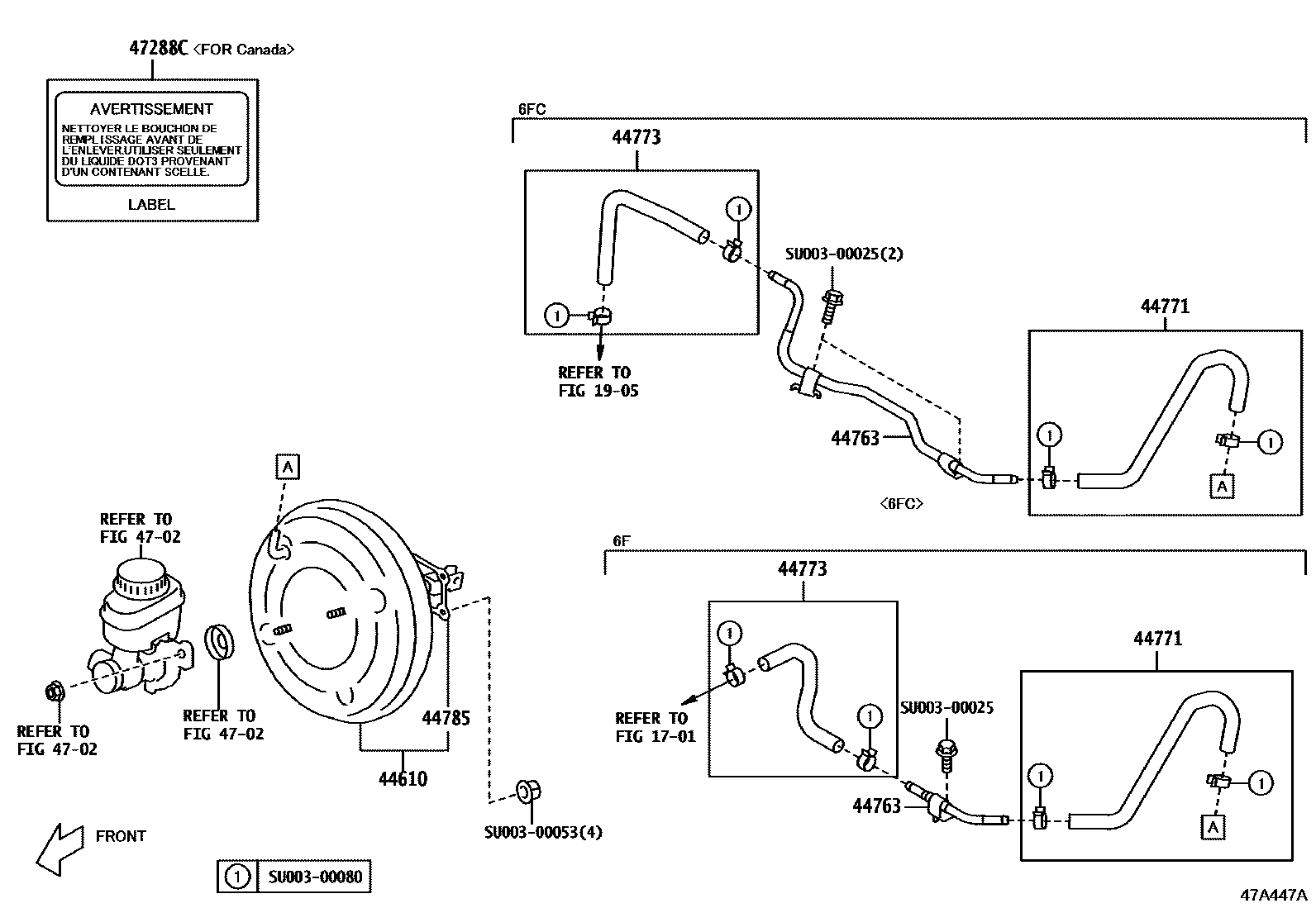

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

mainSU00300590iZN6..F201711-201806

44763TUBE, BOOSTER VACUUM

mainSU00300560iZN6..6FC201807-201907

mainSU00300562iZN6..6F201607-201711

44771HOSE, VACUUM TUBE CONNECTOR

mainSU00304752iZN6201607-201711

44773HOSE, VACUUM, NO.2

mainSU00304753iZN6..6FC201607-201711

mainSU00306244iZN6..6F201807-201907

44785GASKET, BRAKE BOOSTER

mainSU00304545iZN6201807-201907

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47288CLABEL, FLUID MARK

mainSU00300521iZN6..SPE,STD201607-201711

SU00300025

mainSU003-00025

SU00300053

mainSU003-00053

SU00300080

mainSU003-00080

12 parts on this diagram · 1 diagram in section
