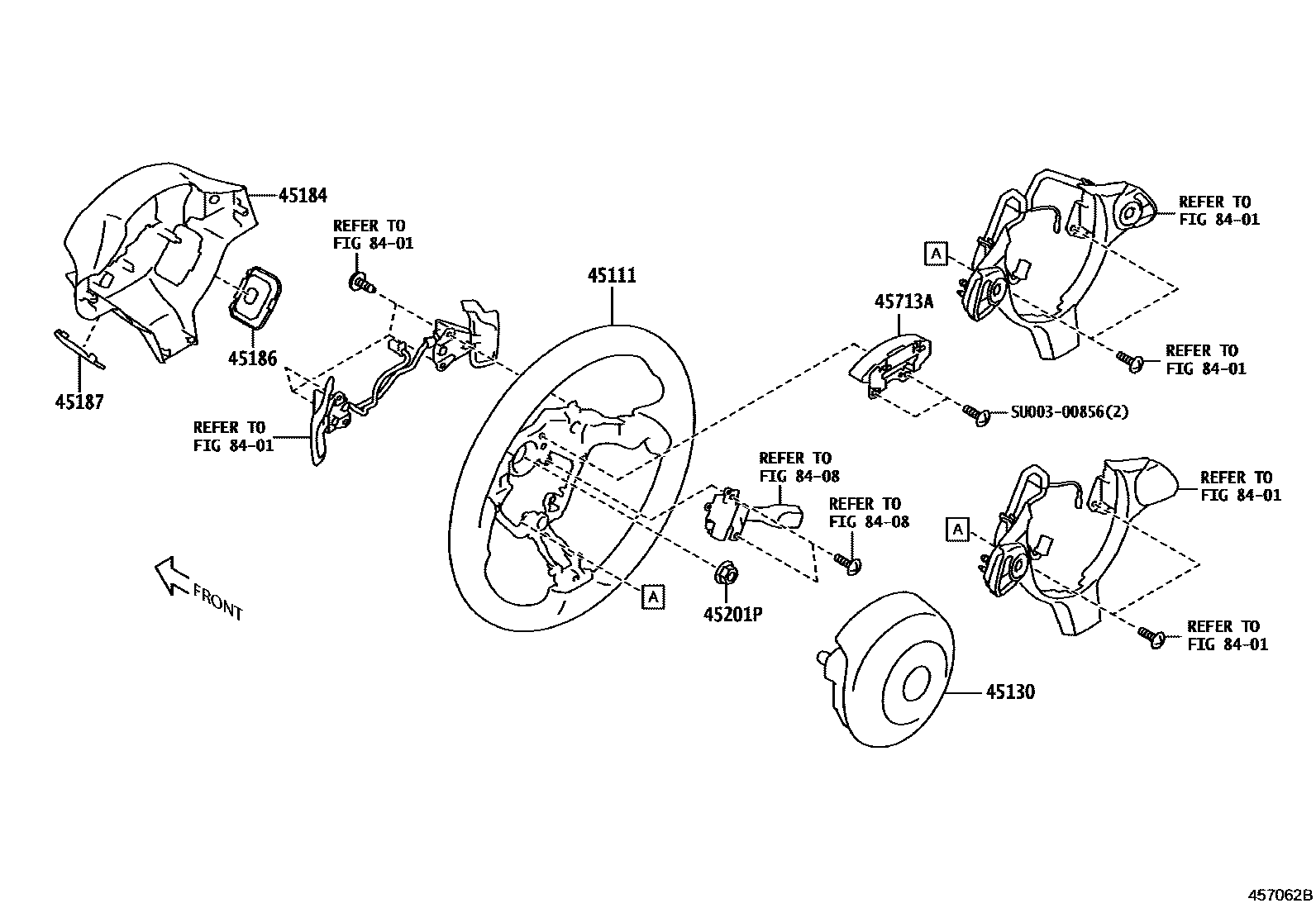

STEERING WHEEL

45111WHEEL, STEERING

mainSU00307105iZN6..HI201607-201711

BLACK,TRIM3#

mainSU00307106iZN6..HI1,HI2,SPE1,STD201908-202012

BLACK,TRIM2#

mainSU00307107iZN6..SPE2201908-202012

BLACK

mainSU00307438iZN6..SPE201607-201711

BLACK

mainSU00307959iZN6..TRD201807-201907

BLACK

45130BUTTON ASSY, HORN

mainSU00307066iZN6201607-201711

BLACK

45184COVER, STEERING WHEEL BOSS, LOWER

mainSU00307298iZN6..6F201807-201907

mainSU00307299iZN6..6FC201607-201711

45186COVER, STEERING WHEEL, LOWER NO.2

mainSU00306423iZN6201607-201711

45187COVER, STEERING WHEEL, LOWER NO.3

mainSU00306383iZN6201607-201711

45201PNUT, STEERING WHEEL SET

mainSU00300056iZN6201607-201711

45713ADAMPER, STEERING SHAKE

mainSU00306385iZN6201607-201711

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

SU00300856

mainSU003-00856

10 parts on this diagram · 1 diagram in section
